Hello everyone!

This is the first tutorial of the 3DEXPERIENCE 2015x Physics apps tutorial series.

To go back to the home page of this tutorial series, please navigate to the end of this page and click the links available.

Scenario 1 Description

The assembly consists of two parts - a backboard and a hoop. The hoop and the backboard are tied together. A pressure load is applied to a small section of the ring which causes it to deflect.

At the end of this tutorial, you will be able to:

1. Create a FEM Representation and mesh the parts.

2. Create and assign materials.

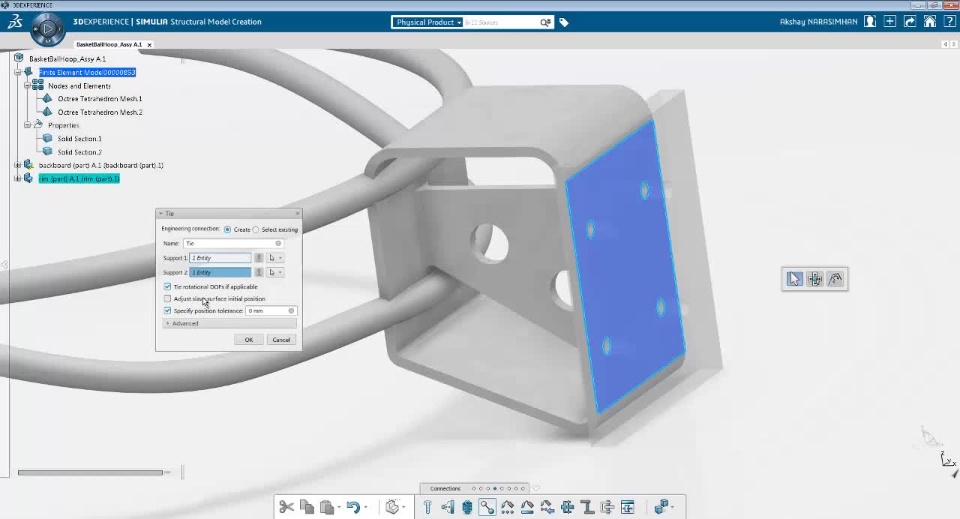

3. Create Tie connections.

4. Define and execute a simple static scenario.

Narrated Video

Below is a narrated video that illustrates how Scenario 1 is created and executed.

Supporting Files

All the files necessary to complete this exercise are available in the Introduction post.

References
