Hello Everyone,

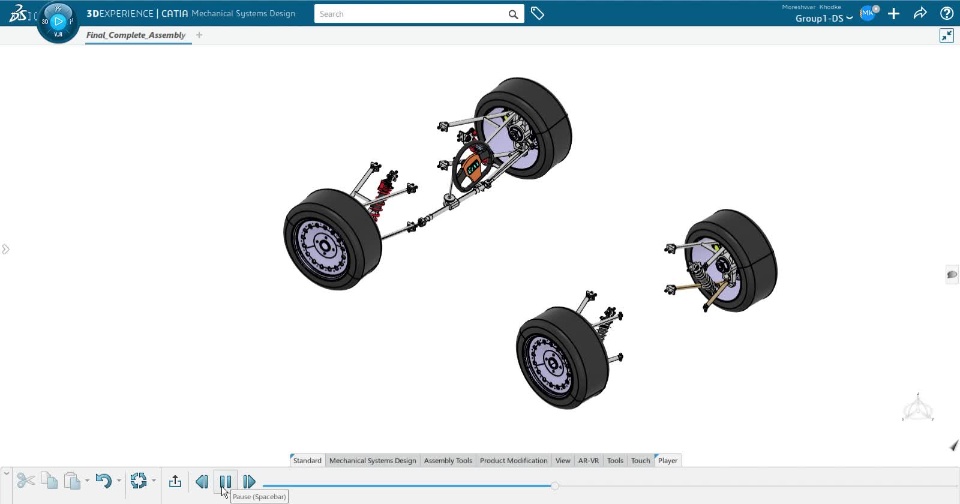

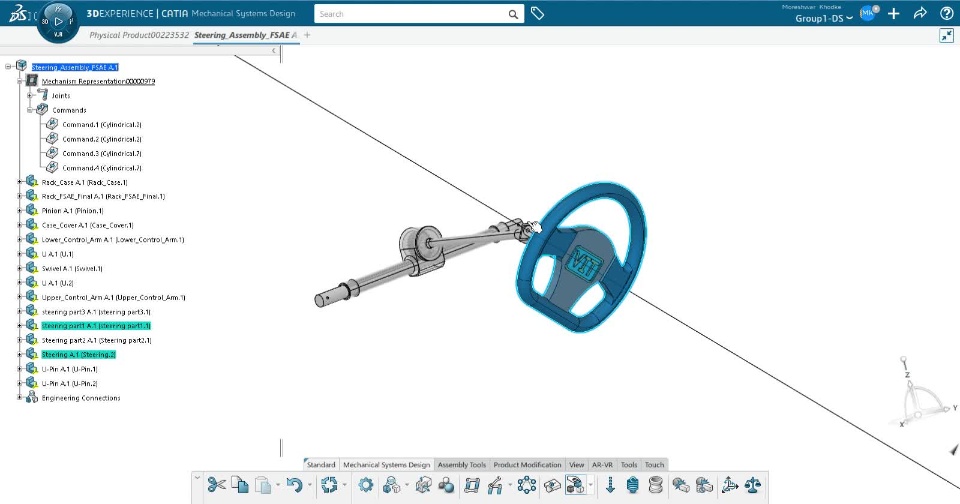

This post is the final post about 'Design of Suspension and Steering System for a Formula Student Car (FSAE) using 3DEXPERIENCE Platform'. It consists of the final assemblies of the steering and suspension system along with their simulation videos. It also contains the complete model of the FSAE car having both the systems assembled. For creating these assemblies, we have utilized the Assembly Design app. The simulation is carried out using Mechanical System Design app.

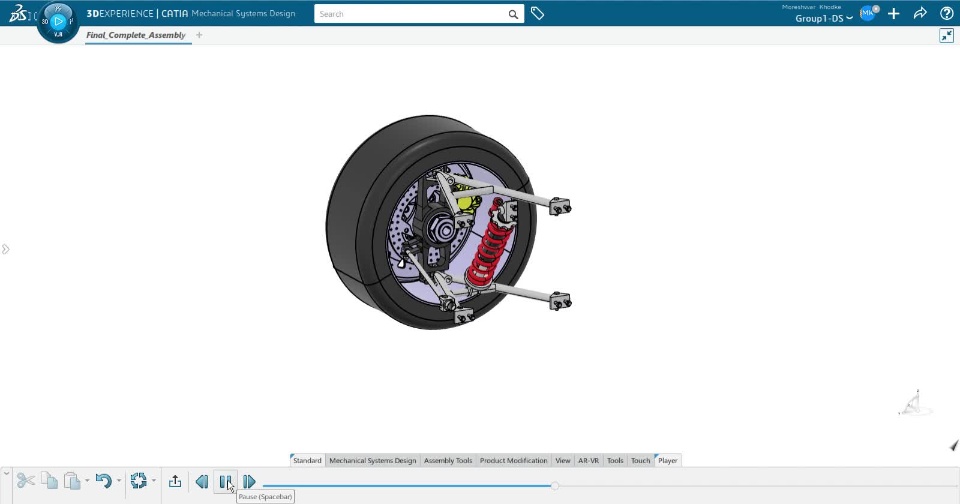

Similarly, rear suspension assembly was also simulated using the Mechanical System Design.
Front View of Assembled Chassis

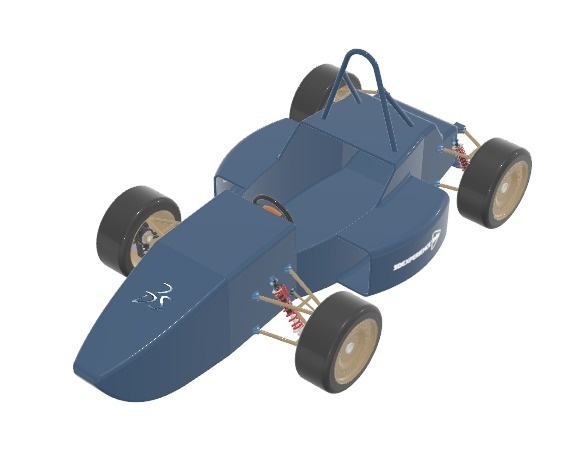

The Live Rendering app is used to create the following picture.
