In the final video in this series, I show how to design and synthesize a lowpass filter.Fest3D offers several lowpass filter topologies – rectangular corrugated, rectangular capacitive iris and coaxial, all with or without an impedance transformer. In this video, we show the workflow in the case of a rectangular waveguide corrugated filter.

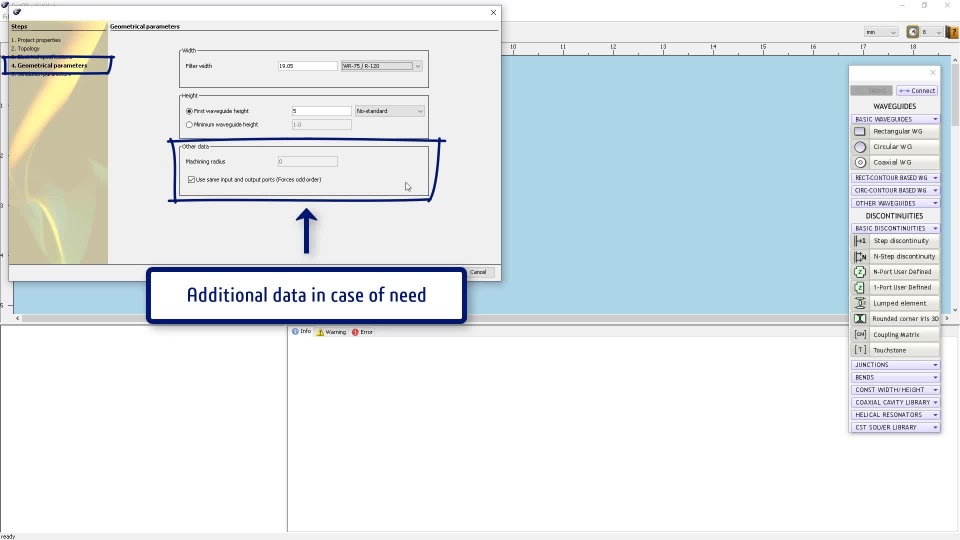

We choose the frequency response, with four different ways to specify the out-of-band response. We also select the filter geometry, including the type of waveguide used. This time, we perform the post-synthesis optimization in Fest3D itself. By optimizing the design, Fest3D fine-tunes the filter parameters to meet the desired filter response more exactly.
For more information about Fest3D and its capabilities, see the previous posts in this series. If you have any other questions about Fest3D, ask in the comments below.
