The Opera Machines Designer (OMD) tool is now available as part of the CST Studio Suite 2021 release. It provides an interactive interface for building electrical machines and it offers a wide range of predefined analyses and results.
All the major types of electrical machines can be built from the templates provided and their performance evaluated:
- Brushless
- Induction
- Wound Synchronous
- Switched Reluctance
- Synchronous Reluctance
- External Rotor PM

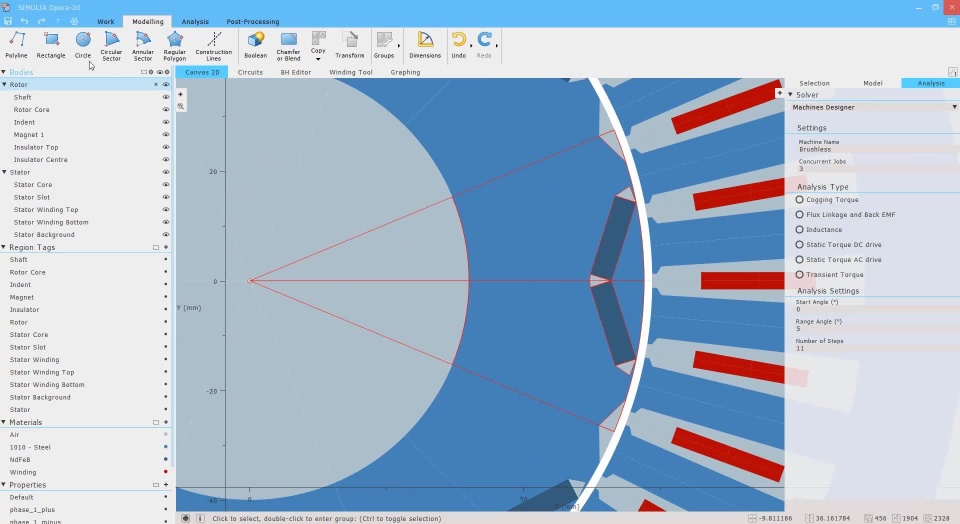

Watch the Opera Machines Designer tool in action building and analyzing a brushless machine.
