New 3DEXPERIENCE Example: Thermal Expansion Stress on a Pipe Segment

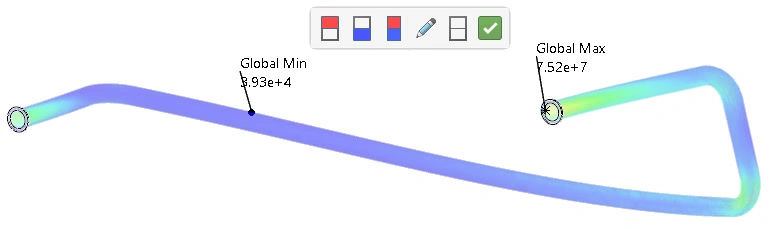

The R2025x FD01 user assistance includes a new 3DEXPERIENCE example that teaches you how to perform a structural analysis based on thermal expansion. In this example, a pipe segment whose end locations are fixed by attachment to other components in the system is subjected to a temperature change and we locate and evaluate the maximum and minimum stress locations.

The simulation uses the following apps:

  • Linear Structural Scenario Creation
  • Physics Results Explorer
  • Structural Model Creation
  • SOLIDWORKS Connected (required only if you choose to import SOLIDWORKS geometry)

To try this example for yourself, see Thermal Expansion Stress on a Pipe Segment.

Thanks to @KS, @RP, and @MS for their efforts in developing and reviewing this example!

___________________________

The 3DEXPERIENCE Simulation Examples Team would like to hear your ideas for new examples. If you have an idea, please leave a comment below so that the team can contact you. The team also welcomes feedback on any of its existing examples.
