As an alternative to altering an existing model (as shown in my "Scripting in Abaqus" post), it is also possible to use the python scripting language for building up a model in Abaqus from scratch. This will in the following lecture be demonstrated in a 2D model of a polymer box with a number of embedded fibers which is then loaded in tension. The lectures consist of video-recorded lectures, slides as pdf-files and scripting files collected as zip-files.
As part of this training module I created four recorded sessions of my presentation:
- More Scripting pdf
- Introduction: B1
- Build the box model: B2
- Case 2: Fiber model: B3

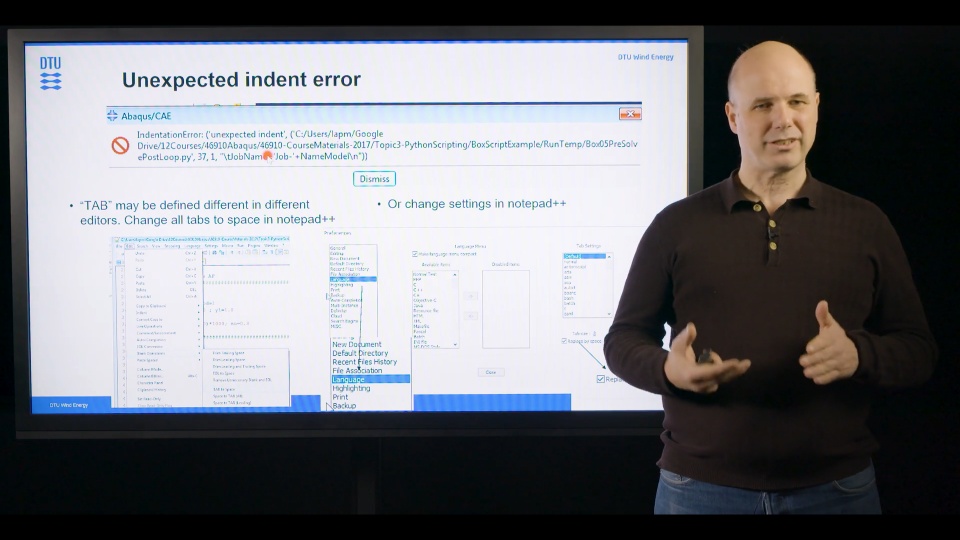

- A few tips to the script: B4
Box script zip | Python Fiber Script zip |
---|---|
If you find this useful or have any questions, please feel free to leave a comment below.
Lars Mikkelsen is associate professor at the Department of Wind Energy at the Technical University of Denmark. His field of interest is numerical finite elements simulations and experimental characterization of polymer matrix composites, where the focus is on the fatigue and compression behavior of wind turbine blade materials. His work involves the use of the commercial FE-code Abaqus together with user-defined subroutines as well as advanced characterization technics such as 3D X-ray tomography. Throughout the years, Lars has worked with nonlinear buckling and collapse of shell structures relevant for crashworthiness applications as well as simulations of tensile instabilities used in necking predictions during hydro-forming and strain gradient dependent plasticity models. He has been involved in a number of medico-inspired problems as well as in general finite element based projects predicting the influence of nonlinear materials behavior on the structural behavior.
