Introduction

A full model of a piston head will be imported into the 3DEXPERIENCE Platform. You will mesh the part with tetrahedral elements.

 After completing this exercise, you will be able to:

1. Import CAD files into the 3DEXPERIENCE Platform
2. Generate a tetrahedron mesh for the piston head using various techniques.

Exercise Process

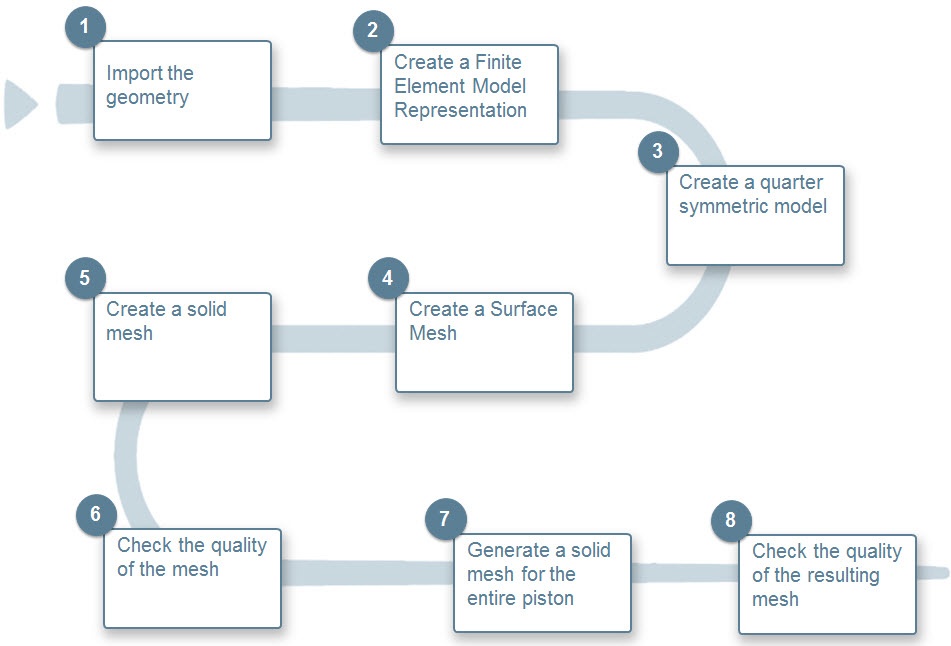

The overall process that is involved in meshing the piston head is shown below:

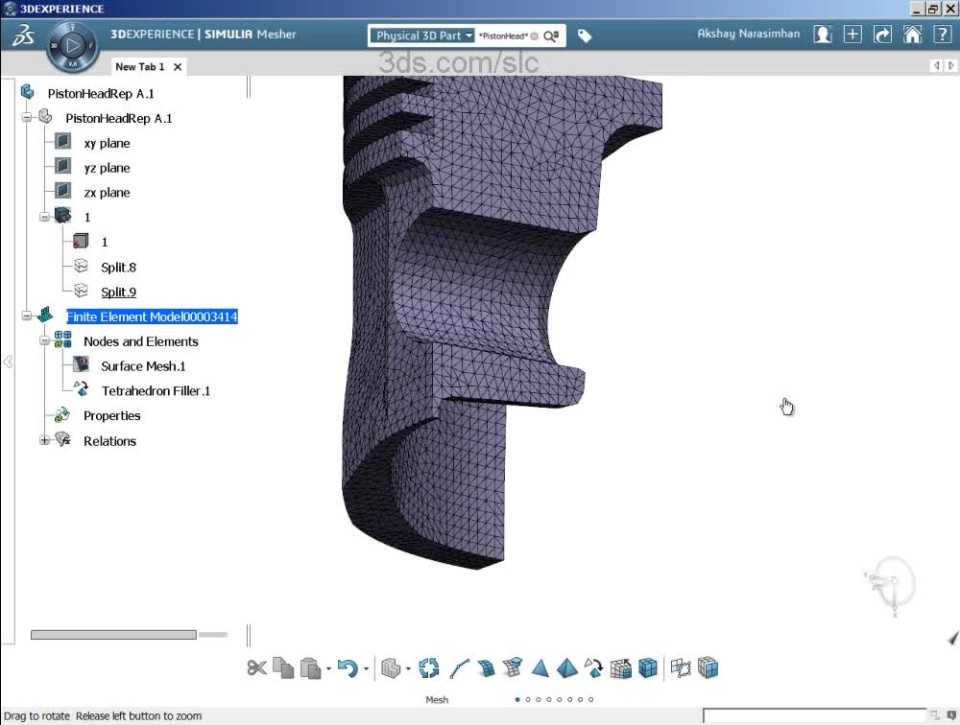

Narrated Video

The process of meshing the piston head using different meshing techniques is described in this narrated video.

Now you try it!

Click the ZIP file below to download the piston head model provided as a STP file. In addition, the ZIP file contains the instructions required to complete the geometry clean up.
