Introduction

A full model of a piston head will be imported into the 3DEXPERIENCE Platform. You will mesh the part and check the quality of the mesh. You will then defeature the part and rebuild specified regions of the geometry to improve the mesh quality.

 After completing this exercise, you will be able to:

1. Import CAD files into the 3DEXPERIENCE Platform
2. Quickly generate a mesh using the Structural Model Creation app.
3. Repair/defeature a component using the tools available in the Simulation Model Preparation app.

Exercise Process

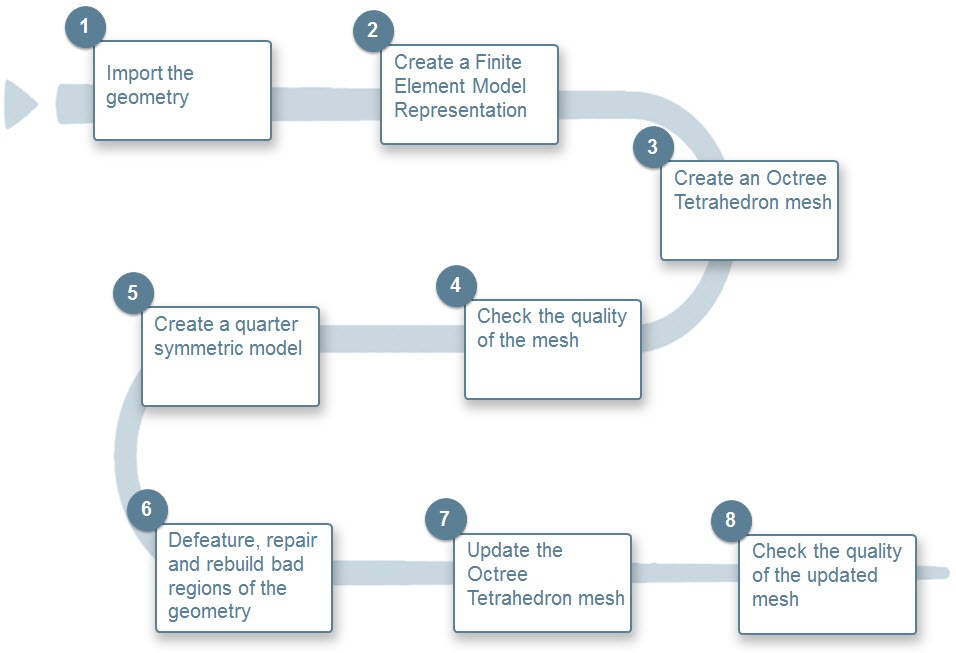

The overall process that is involved in cleaning up the geometry of the piston head is summarized below:

Narrated Video

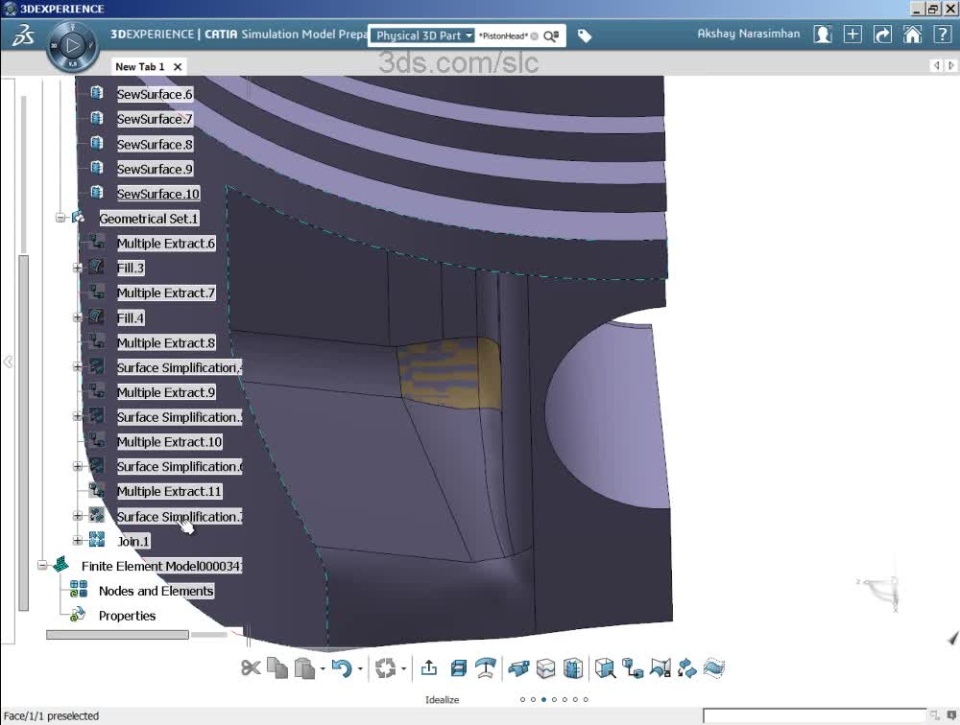

The process of cleaning up and repairing the geometry is described in this narrated video.

Now you try it!

Click the ZIP file below to download the piston head model provided as a STP file. In addition, the ZIP file contains the instructions required to complete the geometry clean up.

Resources

This post is related to the 3DEXPERIENCE Simulation Model Creation and Assembly Essentials class. Click the link to know more about it.

In addition, click here to learn about other available 3DEXPERIENCE courses.
