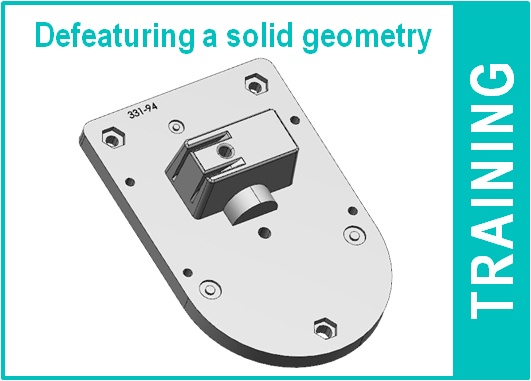

Defeaturing, as the term suggests, is to remove certain modeling features from a solid model. You can choose to defeature a solid model if it contains many modeling abstractions which may not be required for a finite element analysis. Some of these features may include text engravings, part numbers, small holes, fillets, grooves etc. In this video, you will learn how to defeature a solid model with the tools available in V6.
Objectives
The model that is considered for this demonstration has,
-- Part numbers
-- Grooves
-- Counterbores
-- Small holes
The objectives for this exercise is to,
-- Replace the faces of three circular regions
-- Remove the counterbores from three holes
-- Remove 4 small holes
-- Remove the part number
-- Remove grooves and replace the top half of a circular bore with a through hole
Annotated video
The following demonstration includes,
0:04 - Model Overview
0:40 - Objectives
1:09 - Dress Up Features: Replace Face

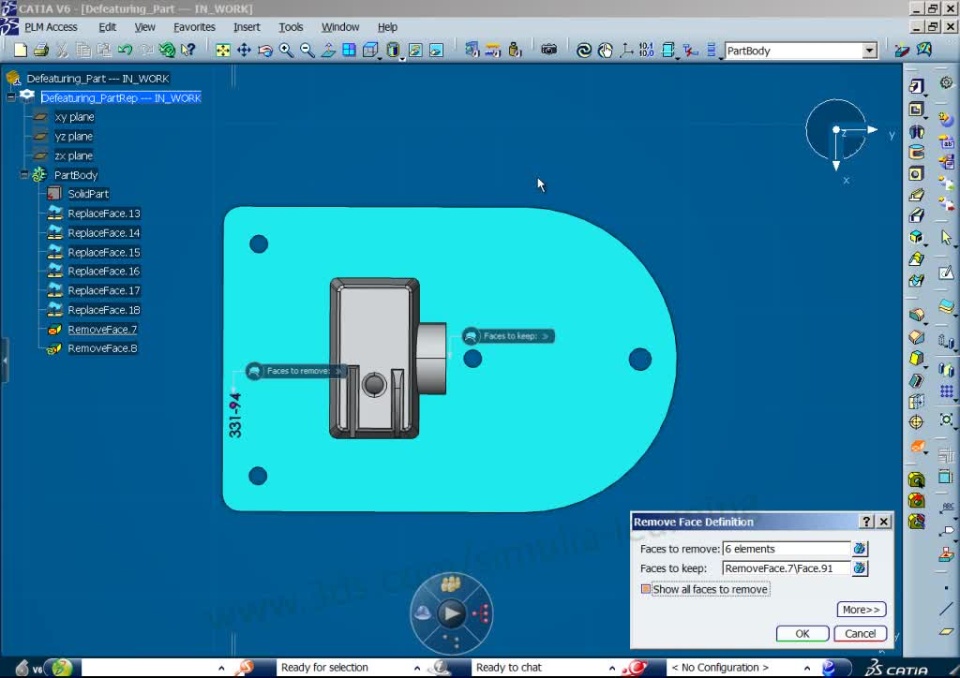

2:54 - Dress Up Features: Remove Face
6:11 - Sketch based Features: Creating a through hole
References
SIMULIA V6 Training class "Introduction to ExSight"
