Abstract

With the increasing demand for electric vehicles to meet environmental requirements, the continuous development of electric drive systems is essential. Electric machines, which operate at higher speeds than combustion engines, require high gear ratios and high power density of the drive unit. Planetary gearboxes fulfill these requirements, but pose challenges due to their geometric constraints, system stiffness and dimensional tolerances. Gear meshing and power splitting create a statically overconstrained system and therefore place high demands on modeling. The intended presentation will focus on the effects of dimensional tolerances and electrical machine parameters on the acoustics of integral housings and gearboxes, aiming to derive solutions for noise reduction.


The methodology follows an interdisciplinary CAx process chain: vehicle system simulations derive component requirements, electromagnetic simulations determine force densitites of the electric machine and 3D tolerance analyses with Catia 3DCS evaluate component tolerances. The acoustics are evaluated using transmission error, acceleration measurements at sensor positions and Equivalent Radiated Power (ERP). A sensitivity analysis identifies key modeling techniques affecting acoustic behavior, offering targeted strategies for noise reduction.


The presentation highlights modeling and simulation details of a multi-body system in Simpack combining electric machine components and a planetary gear set with stepped planetary gears. Various modeling techniques for gear meshing and bearings are evaluated for their impact on simulation accuracy and computational efficiency. Emphasis is placed on implementing dimensional tolerances in Simpack and analyzing their effects on drivetrain acoustics. Additionally, the role of electric machine adjustments, such as reducing torque ripple or electromagnetic forces, is explored. The combined optimization of electromagnetic and mechanical factors demonstrates a viable approach to reduce noise emissions in electric drivetrains.

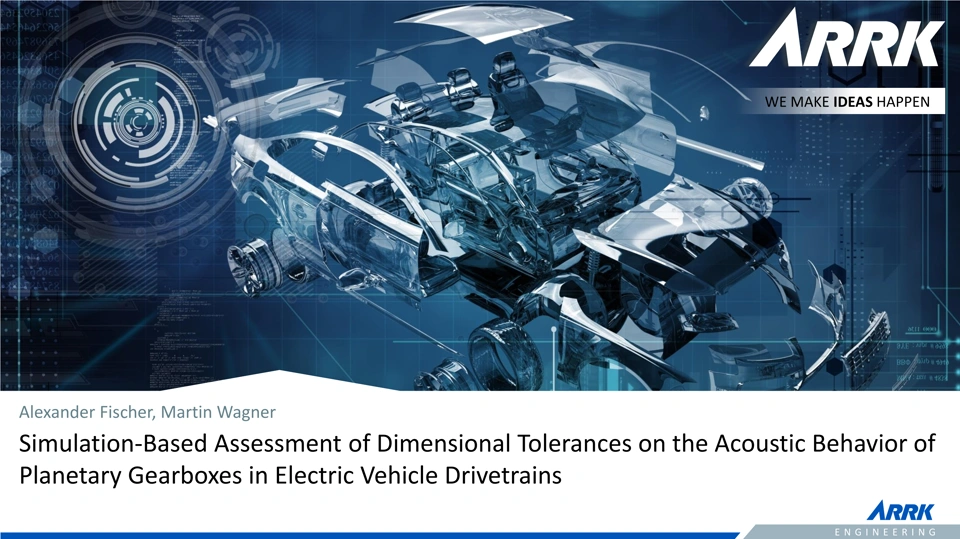

Slide deck
