3DEXPERIENCE Example for Plastic Injection Simulation

A new simulation example, entitled “Two-Shot Plastic Injection Simulation of a Toothbrush,” is available as part of the R2023x FD02 release of the user assistance.

This example demonstrates how to use the Plastic Injection app to simulate the injection molding of a toothbrush that is made from two different materials within the same mold.

In this example, you learn how to:

  • Assign the appropriate domains to the geometries that contribute to the injection molding simulation.
  • Search the plastic materials briefcase for a specific material, and then apply that material to your part.
  • Adjust the Fill, Pack, and Warp simulation settings.
  • Define injection locations.
  • Define a mesh capture order, and then mesh your part.

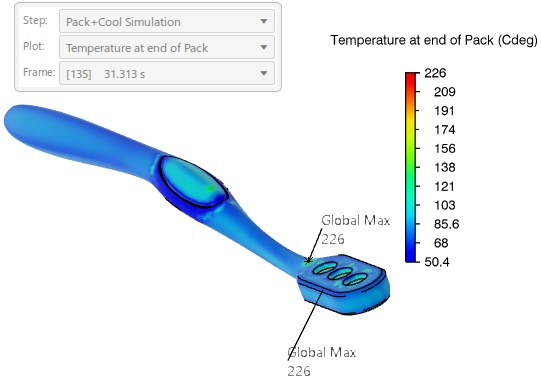

  • Generate contour plots to review the results of the Fill, Pack, and Warp simulation

To complete the example for yourself, see Two-Shot Injection Molding Simulation of a Toothbrush.
