Team STEALTH - Phase 2 Design Submission

Team Members:

@VN ​​​​​​​@VN ​​​​​​​@RG ​​​​​​​@JB ​​​​​​​ @OP

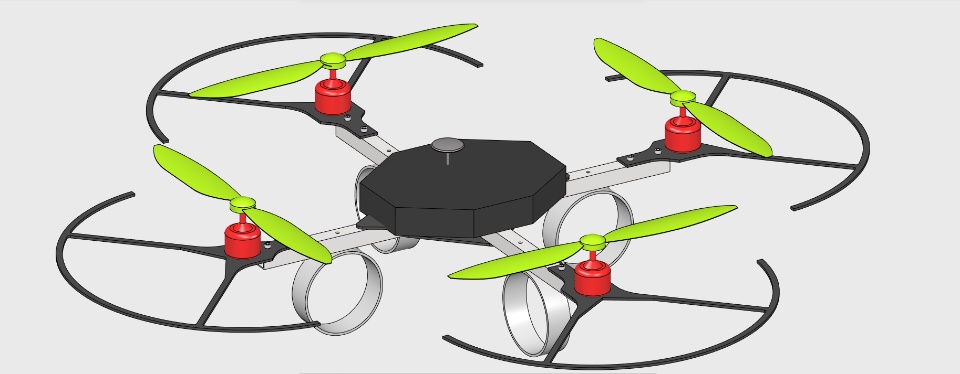

Our Team ‘STEALTH’ has designed this drone. Each components and Assembly of the drone is done using xDesign app.

Manufacturing details are mentioned below:

Parts details required for manufacturing:

1. Laser cut: (Quantity is mentioned in bracket)

     1) Center 1 [1]
     2) Center 2 [1]
     3) Motor Support [4]

2. Arms: [4]

     Square pipe of Aluminium (13mm X 13mm).

3. Cover:

     Cover is provided for protection over electric parts.

4. Landing gears:

     Made of plastic pipe. Attached to four arms of the drone.

5. Bolts & Nuts:

     1) M3 Bolts: Length=20-25mm: Qty 25
         M3 Nuts: Qty 25
     2) Motor Screws: Qty 20

Note: No 3D printed parts used.

Team STEALTH - Phase 2 Design:
