Drawing is a browser-based app that transforms your 3D models into fully detailed 2D drawings, accessible anytime and anywhere, no installation required.

As part of the Manufacturing Definition Creator role on the 3DEXPERIENCE platform, xDrawing simplifies drawing creation with intelligent tools and automation, helping you create production-ready documentation that fits seamlessly into your workflow.

With cloud-based access, built-in collaboration, and lifecycle management, xDrawing lets you generate, manage, and share 2D drawings with confidence from any device.


Explore the 3D Drafter Role

The 3D Drafter role offers hands-on experience with xDrawing, giving users the ability to turn their 3D parts and assemblies into accurate, standardized 2D drawings for manufacturing and communication.

What’s Included?

• Getting Started with xDrawing

  Launch the app through the Compass or your Dashboard and start exploring its clean, browser-based interface with no setup required.

• Creating 2D Drawings from 3D Models

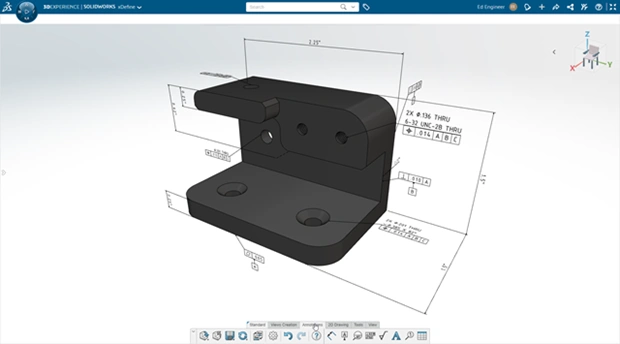

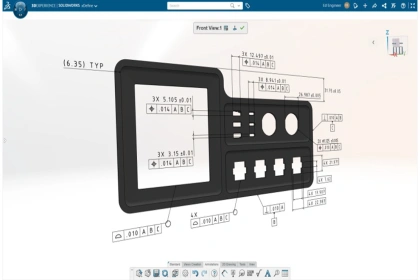

  Generate detailed drawings directly from 3D parts and assemblies. Add views, dimensions, annotations, title blocks, and more with precision and ease.

• Ensuring Production-Readiness

  Create clear, industry-compliant technical drawings that support manufacturing. Automatic view updates ensure your drawings stay in sync with the model.

  1)  Add standard and custom views with ease

  2) Use intelligent dimensioning tools and annotation automation

  3) Maintain drawing-to-model associativity for up-to-date accuracy

• Using the Design Assistant

  Speed up drawing creation with machine learning-powered suggestions that assist with dimensions, views, and repeated tasks.

• Managing the Drawing Lifecycle

  Track changes, manage versions, and collaborate on drawings with built-in lifecycle and data management tools - all in the cloud.


📘 Access the course here: Explore xDrawing on EduSpace
🛠️ Note: The academic role needed in 3DEXPERIENCE is 3D Designer (UXW).
