Let's take a step ahead in design and validate the motion of any mechanism before spending money on physical prototyping or doing further analysis.

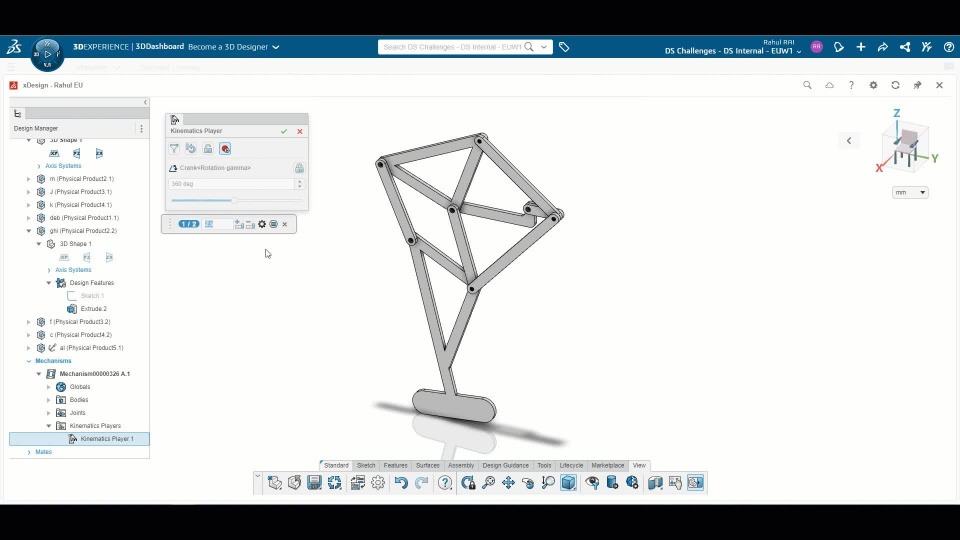

Here is an example of simulation of a Jansen's linkage

​​​​​​​​​​​​​​ Jansen's linkage is a planar leg mechanism designed by the kinetic sculptor Theo Jansen to generate a smooth walking motion.

To play with it download the 3DXML file and give your own touch to this Mechanisms and do not forget to share.

Comment below to know more.

Share your own design to be part of Mechanism Monday ​​​​​​​series.
