Lets get to our Monday Mechanism by answering few questions.
Q. How can we transfer rotational motion between two colinear shafts?
Ans: We can weld them together.
Q. How can we transfer rotational motion between two parallel shafts?
Ans. We can use gears.
Q. How can we transfer rotational motion between two parallel, but moving shafts?
Ans. We can use Schmidt coupling.

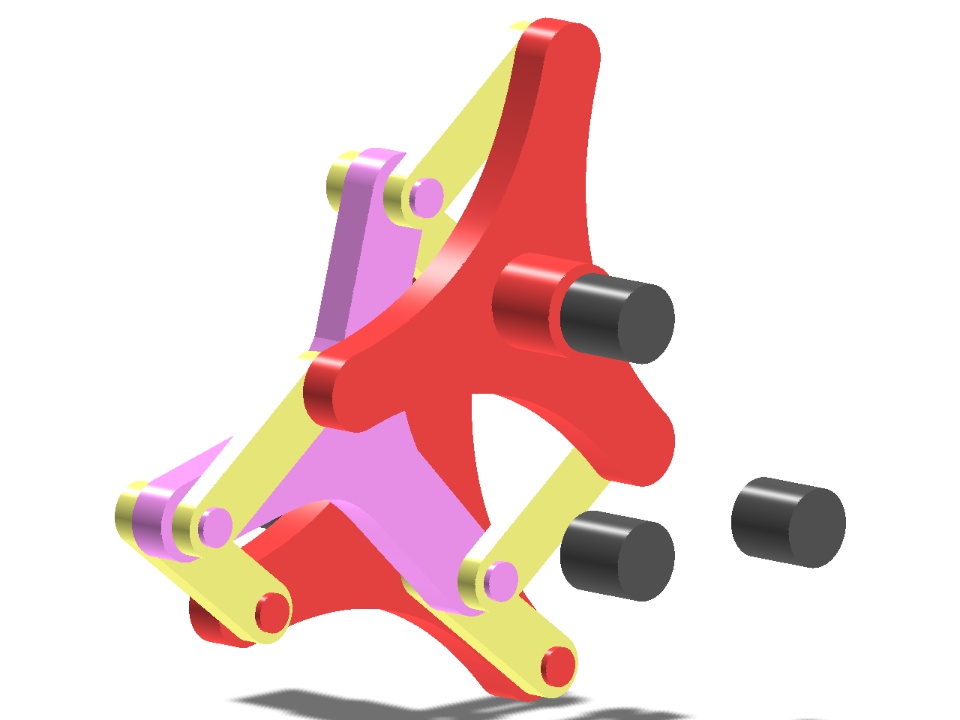

Schmidt coupling: Transmission of rotation movement between parallel shafts. The yellow link rotates without fixed bearing. Both shafts can move during transmission.
And before you ask, let me tell you, I used #xDesign.

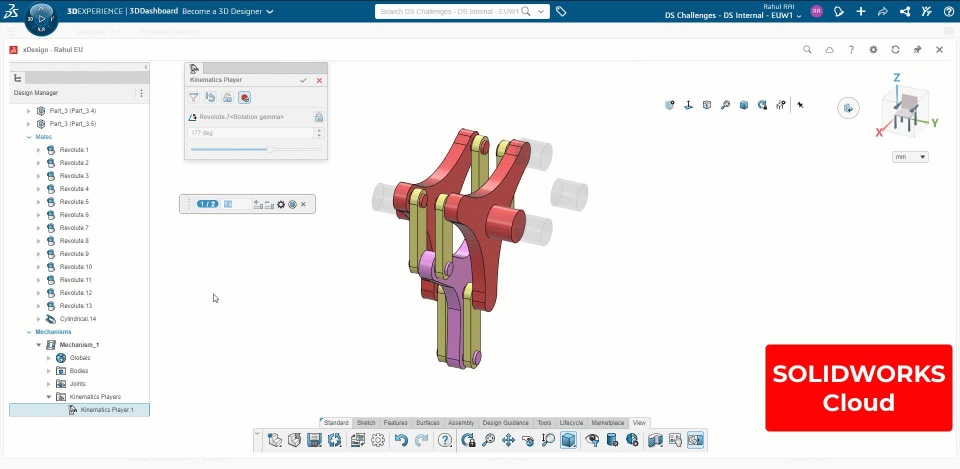

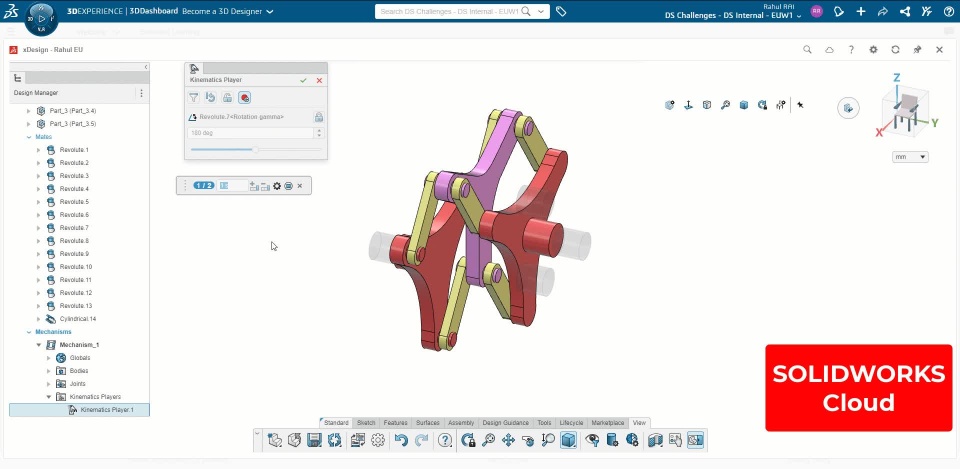

What I did in xDesign?
✅Parts designed in xDesign
✅Assembly created in xDesign
✅Mechanism created in xDesign
✅Kinematic Simulation in xDesign
✅Real Time Visualization in xDesign
What is required for xDesign?
❌Graphic Card
❌High End Processor
✅Web Browser
✅Internet
To know more about xApps, go to:
https://lnkd.in/dQ3bFmnc
Comment below and Share your own design to be part of Mechanism Monday series.
