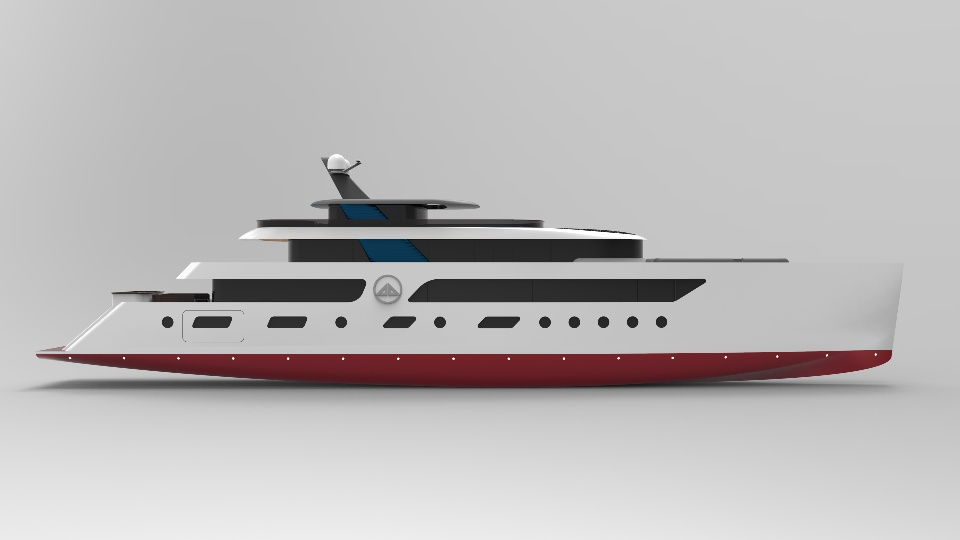

I have made this for Project of the year 2021 challenge by 3dexperience edu. It is fully done in Solidworks. Reducing carbon emission with sleek lines and providing best possible amount of usable space and layout was the main intention behind this project. In this project it is tried to make a best possible design which is conventional and Eco-friendly. It is a tri-deck yacht with tons of room available for indoor and outdoor entertainment. The massive waterline length gives the boat tremendous ability to save fuel. Speaking of ability, this yacht is equipped with 5 Generators. 2 of them are main generators and other are for standby or when in dock or anchor for electricity generator. Main generators generate up to 1000kW or 1340 hp which can push it at 20Knots maximum. This speed is massive compared to its size. One of its exceptional features is it can run in single engine alone or use both engine whenever necessary. This ability to choose only one engine or both results to one the most efficient propulsion package.
Zero Carbon Emission and Full Silent Mode

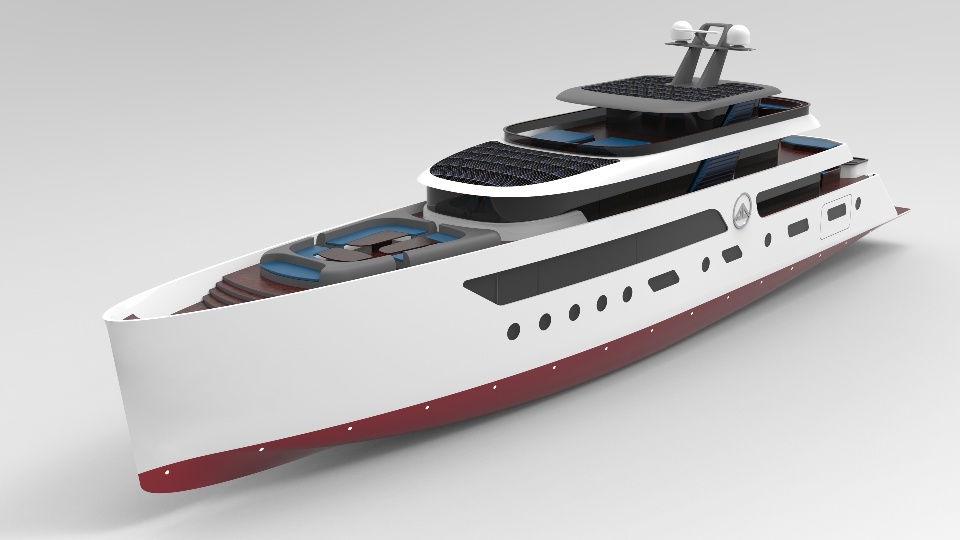

To step up in Eco-friendliness, the yacht is equipped with 45 Solar panels which have 450W capacity each. Which makes total power generation capacity of 20kW. Using this power alone the yacht is capable of achieving speed up to 4.25 Knots. So, at this speed the yacht is emission free. Well, of course in real world scenario this speed sometimes can be less, but it’s always a relief to know it’s there whenever required. When it is not required to run all day. This energy can be saved to use later or it can meet up the general power requirement of the yacht. Making it fully silent at the spot. Moreover, being electricity driven the solar power can be used in conjunction to other generators, making this Eco-friendlier than general.

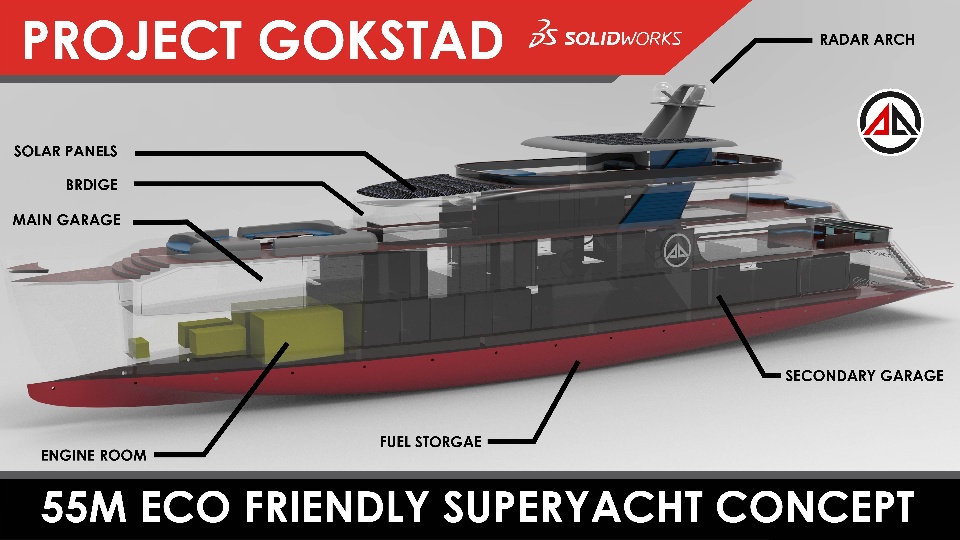

Smart Layout Generally, any boat of this size has engine-room in the stern of the boat. But, unlike all of them the engine room is the bow of the yacht and the engine room has 5 generators of two different capacity rather than conventional engine and generator. AS being electric propulsion the power can be transferred by wires to the propellers which is driven by electric motors.
TECHNICAL SPECIFICATIONS (Theoretical) Length Over All:190ft Length Water Line:187ft Beam:30ft Draft:7.5ft Gross Tonnage:500GT Fuel Capacity:120000L Water Capacity:15000L POWER and SPEED Main Generator:1340hp*2 Standby Generator:268hp*3 Max Speed:20Knts Hull Speed:18.32Knots Cruising Speed:10Knots Range at 10Knts:14285Nm Solar Power:20kW Zero Emission Speed:4.25Knots (Depends on sunlight)- FUEL CONSUMPTION (All values are theoretical and valid for full load fuel) (Speed will raise with less fuel and will slower for more displacement or less sunlight) Speed (Knots) LPH Power (hp) Remarks 20 538 2680 Both Main Generators 17.8 418 2010 Both Main Generators 15.5 292 1340 Both Main Generators 12.35 168 670 One Main Generators 10 84 335 One Main Generators 7.3 31.4 135 One Standby Generators 5.75 19.7 67.5 One Standby Generators 4.25 0 26.8 Solar Power ACCOMMODATION Guest:18 in 9 Cabins or 24 in 9 Cabins (using Pullman berths at lower deck) Crew:12 in 6 Cabins Engineer:1 in 1 Cabin Captain:1 in 1 Cabin TENDERS AND TOYS Main Tender:26ft Crew/Supply Tender:14ft Jet ski:3 Quad ski:1 Submarine (Triton):1
