I found this mechanism for drawing trace in ENGINEERING, in the post link below :
https://www.linkedin.com/posts/engineeriing_engineering-ugcPost-6799073394265526272-RtRJ

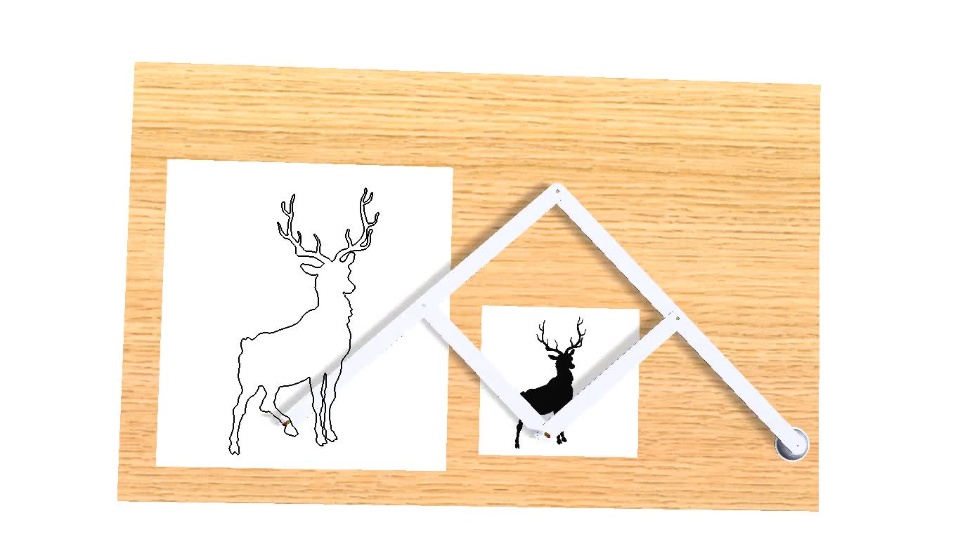

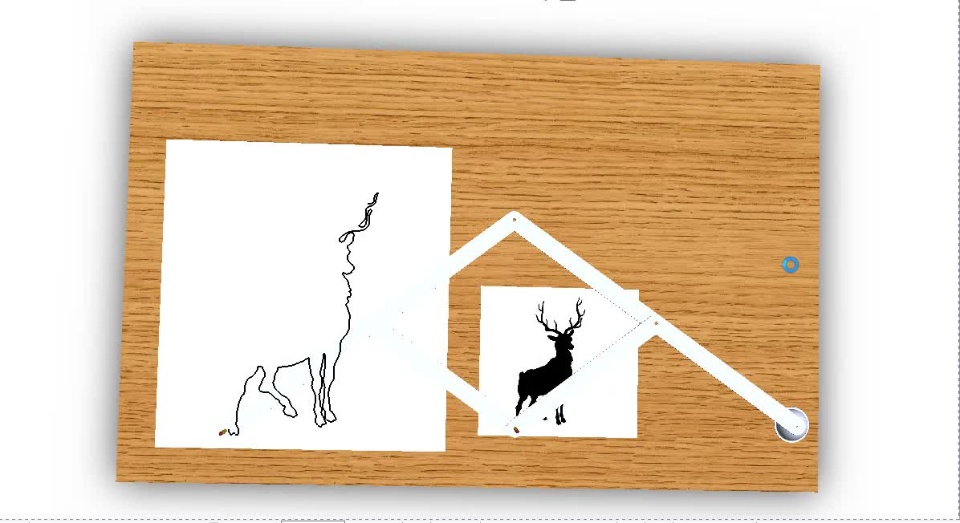

Then I Modeled the concept design for it, using SOLIDWORKS and SolidWorks motion analysis, and basically, the scale depends on linkages length, I created two videos to show this mechanism, one is before rendering and the other after rendering with the real view.
What do you think?
