- Improved ability to adhere to industry standards for higher accuracy and efficiency.
- Seamless control of file management for increased flexibility in sharing file formats.
Customize table features for greater productivity and flexibility.
Drafting Tool

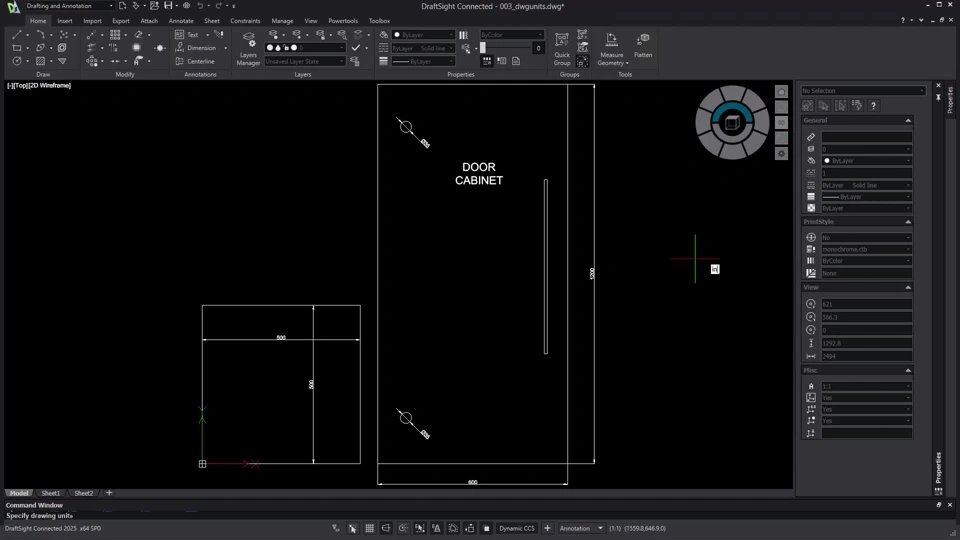

[NEW] Ability to Change the Unit of Measurement ⭐
Description: Provide the ability to change the unit of measurement in DraftSight.
Benefit: Standardize 2D drafting by seamlessly converting measurements between unit systems.
Applicable to DraftSight Professional, Premium, and Mechanical

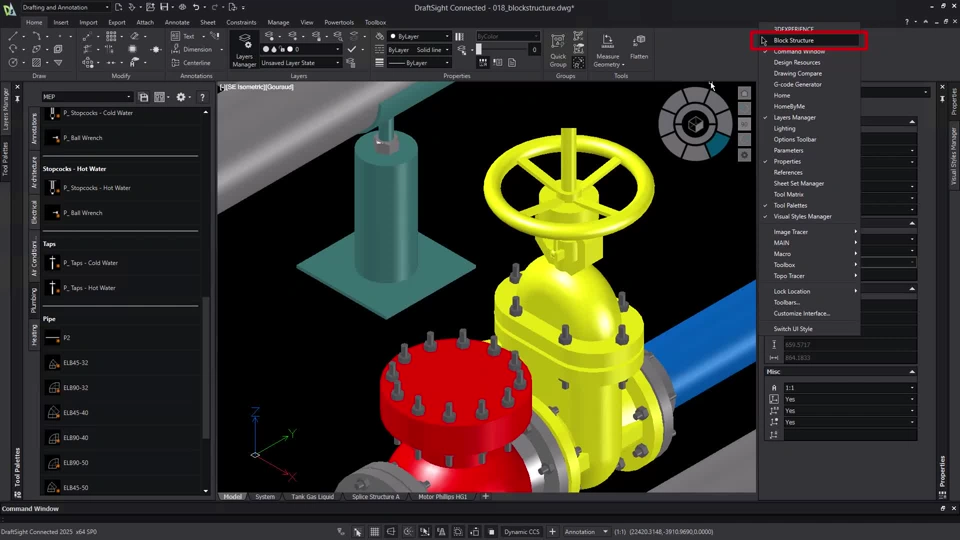

[ENHANCED] Block Structure Palette ⭐
Description: Visual representation within the application is required for both top-level blocks and their hierarchical decomposition (nested blocks). Nested blocks, analogous to subroutines in programming, allow for the encapsulation of frequently used geometry within a parent block, promoting modularity and reducing drawing complexity.
Benefit: Empower users to visualize and manage blocks effortlessly with the intuitive block structure palette.
Applicable to DraftSight Premium and Mechanical

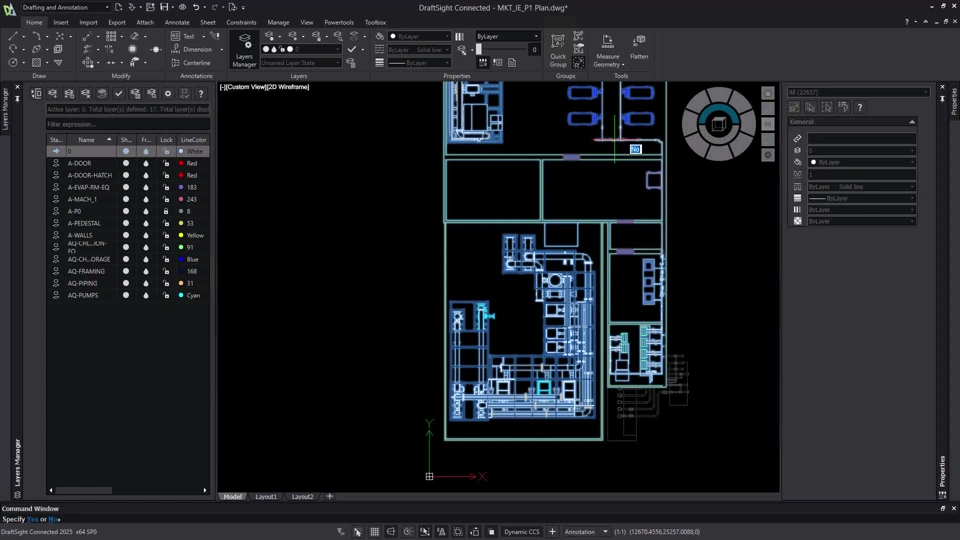

[NEW] Flatten Command ⭐
Description: The Flatten command is a powerful tool for converting 3D entities into 2D entities, creating 2D views, and simplifying complex drawings into manageable 2D drawings.
Benefit: Simplify complex entities into 2D drawings with the Flatten command, streamlining your design process and boosting efficiency.
Applicable to DraftSight Premium and Mechanical
User Interface

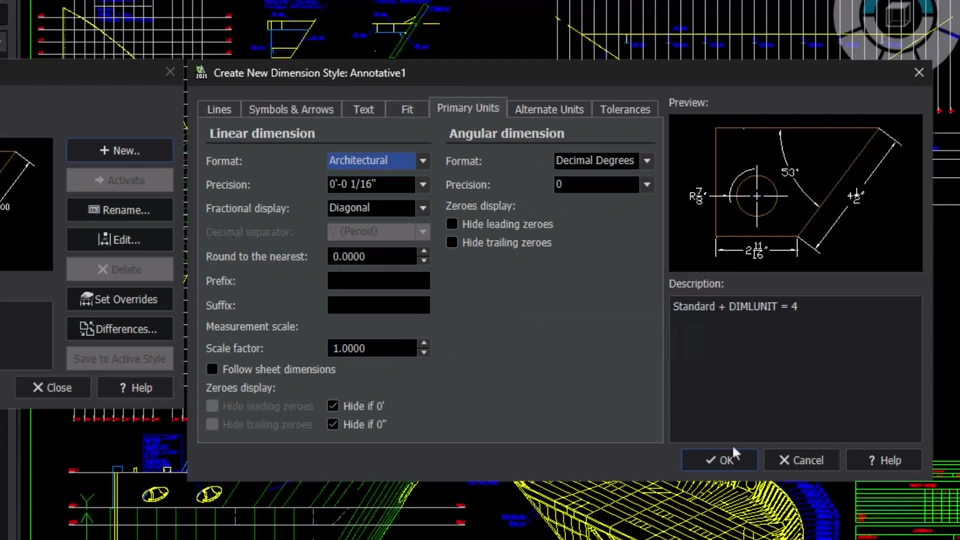

[ENHANCED] New Dimension Styles Dialog
Description: Improve the overall user experience and productivity through an interface that closely aligns with features and options found in familiar CAD applications.
Benefit: Enhance the legibility with the improved Dimension Style Manager.
Applicable to DraftSight Premium and Mechanical
Essential Export/Import Command

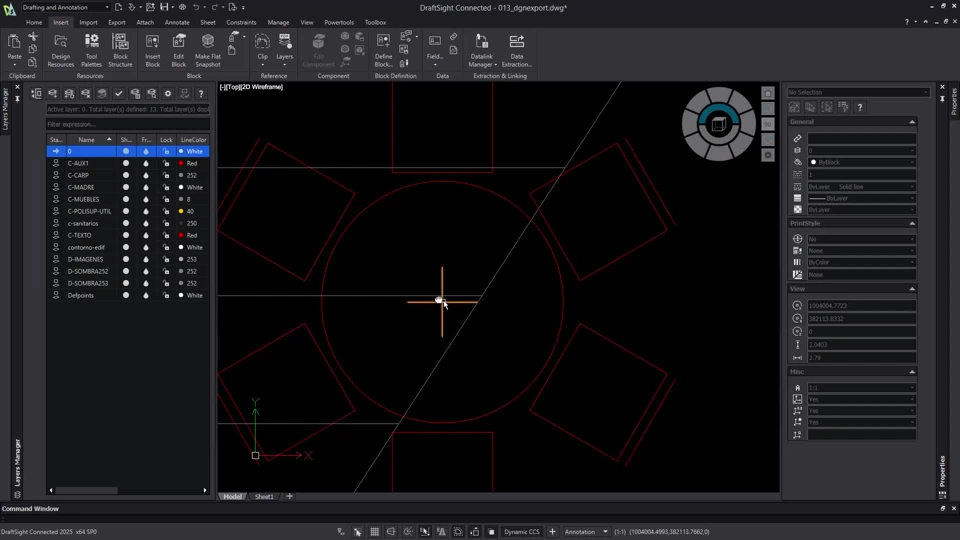

[ENHANCED] DGN Export from DraftSight
Description: Allow export of DGN files from DraftSight.
Benefit: Empower collaboration within the architecture, engineering, and construction industry with the DGNexport function by sharing design data, such as graphic elements, georeferencing information, and data related to project construction.
Applicable to DraftSight Premium and Mechanical

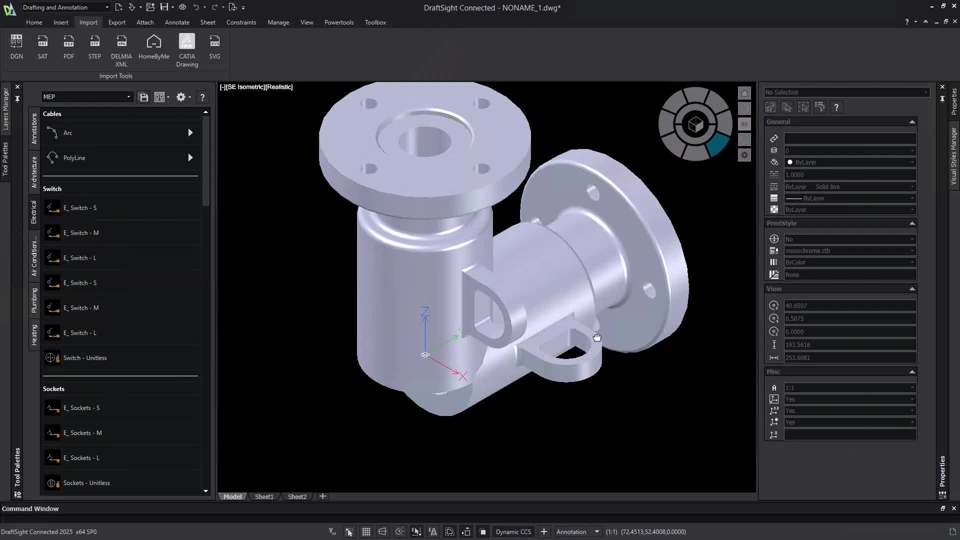

[NEW] Ability to Import STEP Files
Description: Ability to import STEP files within DraftSight.
Benefit: Expand design possibilities and improve workflow efficiency with 3D model STEP import.
Applicable to DraftSight Premium and Mechanical
Table Customization

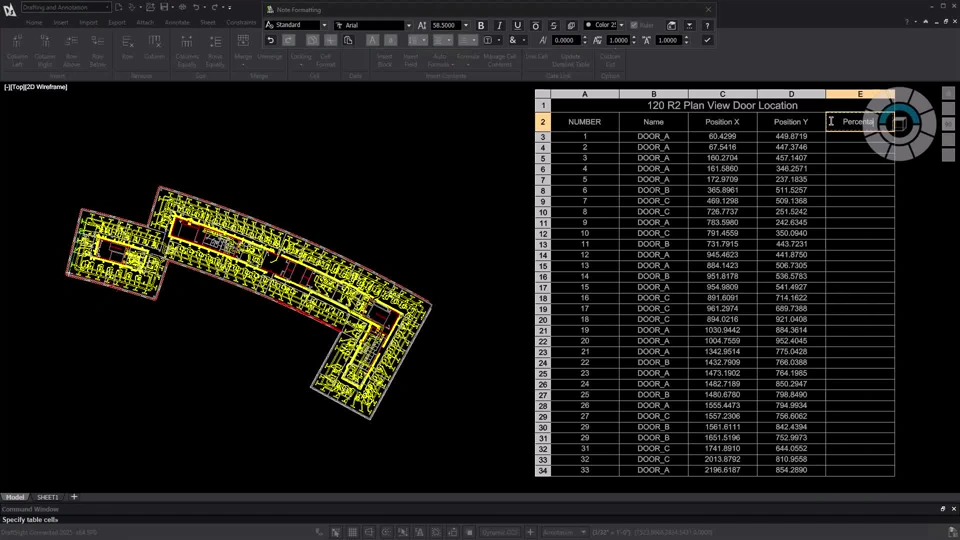

[NEW] Table Break Command
Description: Handling large tables that exceed the available drawing space can be cumbersome. The Table Break command lets you split a table into multiple sections and arrange them side-by-side, ensuring optimal layout and readability. This command has been implemented in other CAD applications.
Benefit: Maintain an effective visual of table data with the Table Break command.
Applicable to DraftSight Professional, Premium, and Mechanical

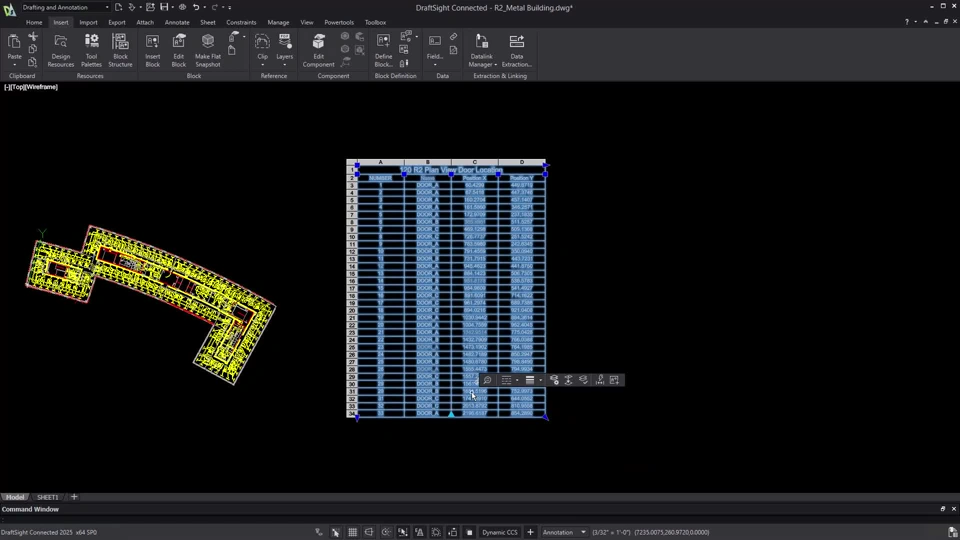

[NEW] Auto-Fill Command in Tables
Description: Effortlessly create and populate your tables with the intuitive auto-fill functionality. Simply select a cell and watch as your data expands effortlessly.
Benefit: Reduce repetitive work while editing tables with the cell Auto-Fill command.
Applicable to DraftSight Professional, Premium, and Mechanical
