Collaborative Designer for Cadence Allegro UEC R2023x FD01

RH 2023-10-27

New enhancements in this release for this role:

(Tip: You can use the Table of Content , on the right side, to view the list of all enhancements)

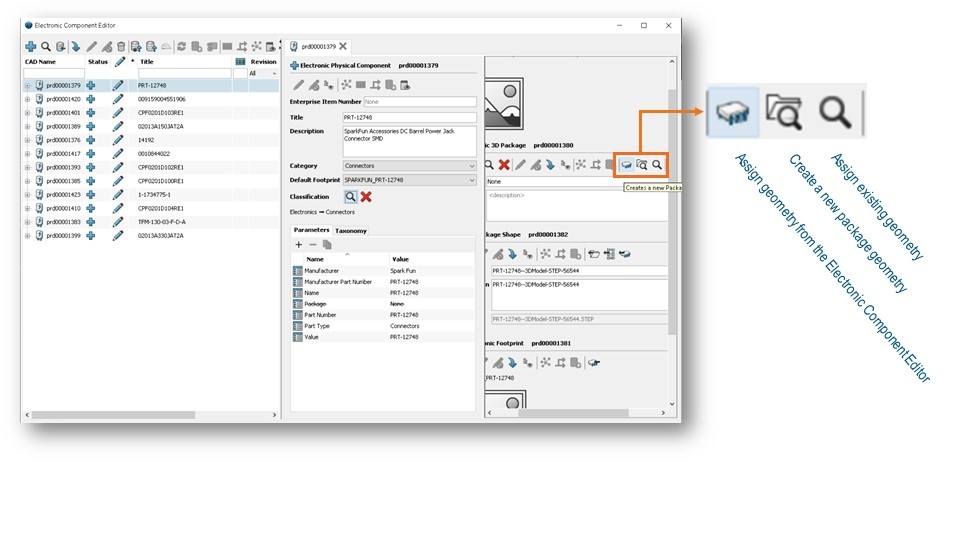

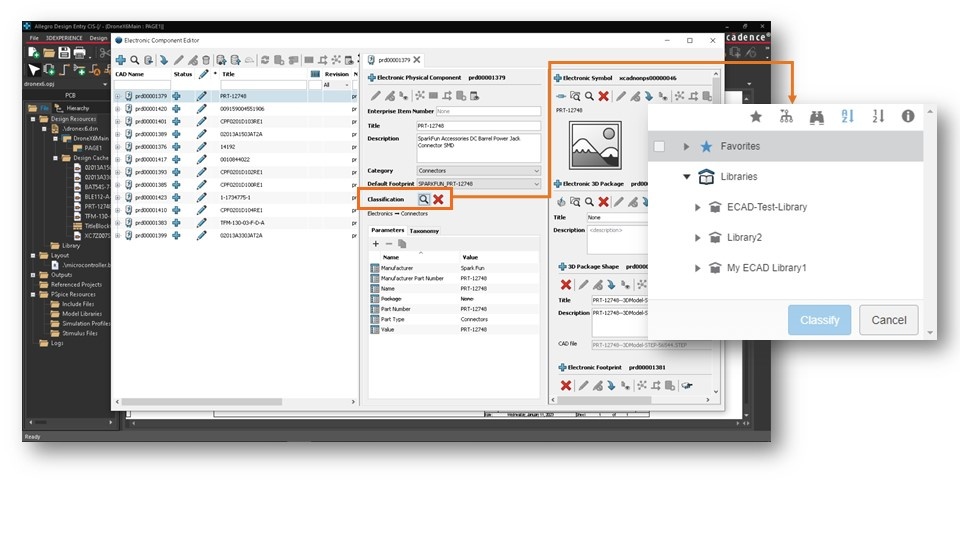

Assignment of 3D CAD Models to Electronic Parts
Why Improve control of component geometry through direct management within the Electronic Component Editor
How You can now explicitly handle the 3DPackageWrap in the Electronic Component Editor to manually select geometry either from an attached footprint, external file or from 3DEXPERIENCE. The 3DPackageWrap will be available in the Electronic Component Editor. It will behave similar to other ECAD components. NOTE that the 3DPackageWrap will no longer be automatically determined by the integrations during the Save operation.

Assignment of 3D CAD Models to Electronic Parts

Why

Improve control of component geometry through direct management within the Electronic Component Editor

How
You can now explicitly handle the 3DPackageWrap in the Electronic Component Editor to manually select geometry either from an attached footprint, external file or from 3DEXPERIENCE.

The 3DPackageWrap will be available in the Electronic Component Editor. It will behave similar to other ECAD components.

NOTE that the 3DPackageWrap will no longer be automatically determined by the integrations during the Save operation.

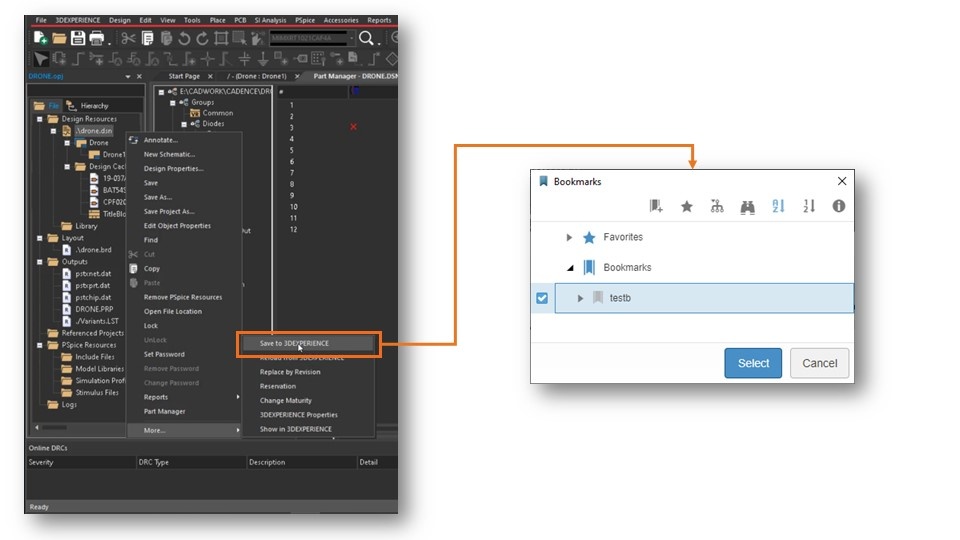

New Library and Bookmark Selector Panel
Why Improved user experience and consistency with web through simplified prompts
How You can now use simplified prompt panels on Save for the Library and Bookmark selectors. The Bookmark selector is in Edit mode to allow you to create bookmarks through this prompt. The Library selector is started in read-only mode, as it is not allowed to create any new libraries.

New Library and Bookmark Selector Panel

Why
Improved user experience and consistency with web through simplified prompts

How

You can now use simplified prompt panels on Save for the Library and Bookmark selectors.

The Bookmark selector is in Edit mode to allow you to create bookmarks through this prompt.

The Library selector is started in read-only mode, as it is not allowed to create any new libraries.

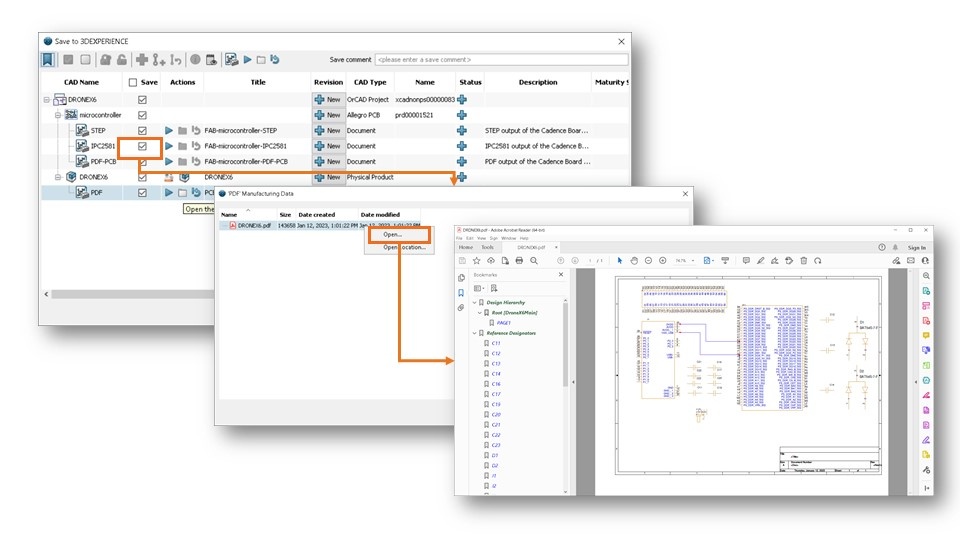

Pre-Generation of Manufacturing Outputs
Why Improved data integrity through validation of manufacturing output prior to Save
How You can now create the manufacturing outputs for review and changes before executing the actual Save to 3DEXPERIENCE operation. This enhancement is in addition to the existing automatic creation on Save to 3DEXPERIENCE operation. You can review the data and make changes to it to assure that the data is correct before Saving to the platform.

Pre-Generation of Manufacturing Outputs

Why
Improved data integrity through validation of manufacturing output prior to Save

How

You can now create the manufacturing outputs for review and changes before executing the actual Save to 3DEXPERIENCE operation.

This enhancement is in addition to the existing automatic creation on Save to 3DEXPERIENCE operation.

You can review the data and make changes to it to assure that the data is correct before Saving to the platform.

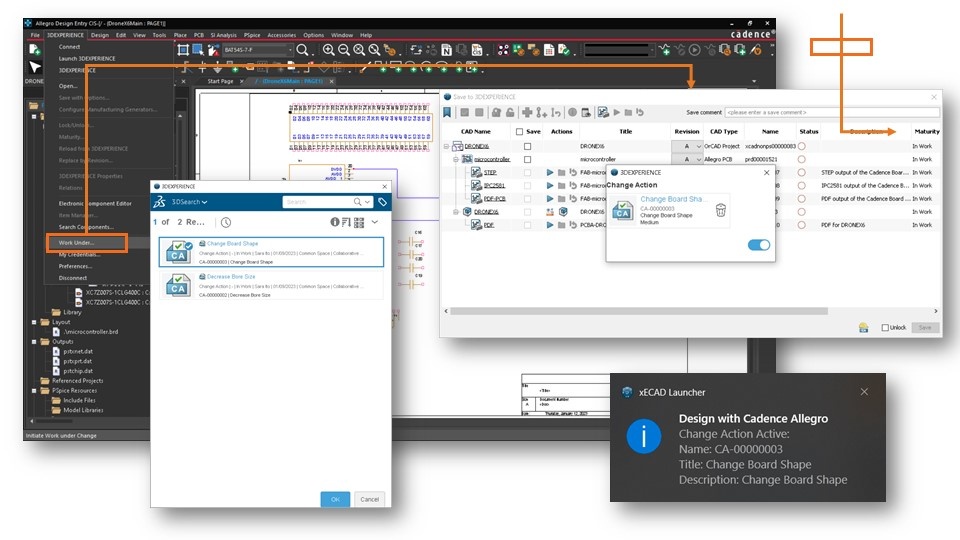

Improved Work Under Visualization
Why Improved control of Change Action content and state during your ECAD session
How You can now access the “Work Under” command directly from the Cadence Allegro menu. Once selected, the active state is shown as a highlight of the command itself. The state of the Change Action can be toggled at any time during the ECAD session.

Improved Work Under Visualization

Why

Improved control of Change Action content and state during your ECAD session

How

You can now access the “Work Under” command directly from the Cadence Allegro menu.

Once selected, the active state is shown as a highlight of the command itself.

The state of the Change Action can be toggled at any time during the ECAD session.
