Classify and Reuse Widget for Placing Components

Why

Ensure the use of company validated components by using classified libraries

How

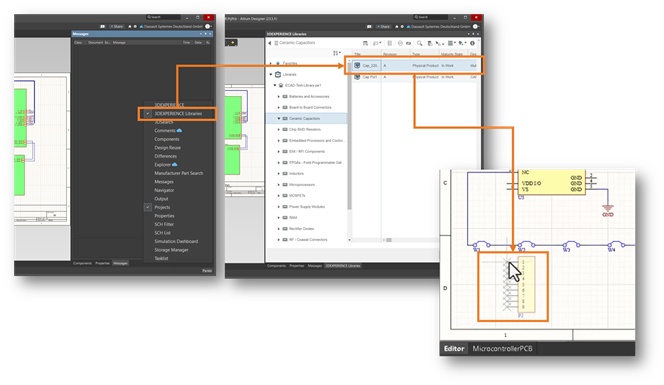

You can now select and place components into Altium Designer directly from a 3DEXPERIENCE library by using the Classify and Reuse application:

• to place a single selected component directly into the currently opened schematic
• to add the selected components to the offline library

NOTE: This capability only supports Electronic Physical Components for Altium Designer.

Support Open Action from Widgets

Why

Streamline the process of opening data into the current design session

How

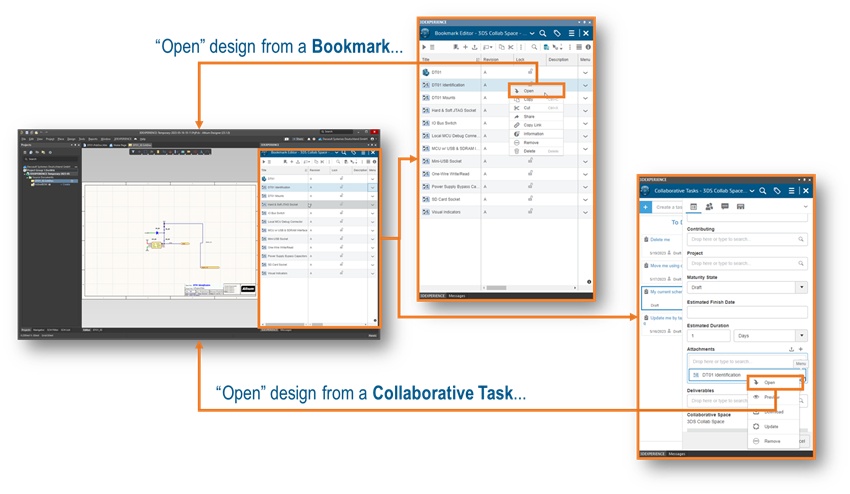

You can now use an “Open” command to load an existing schematic from Web-In-Win session window.

NOTE This enhancement only supports the integration panels, but not from external Browser.

Save Schematic Preview as Thumbnail

Why

Enhance the user experience by providing a visual cue of the schematic when accessed from platform applications

How

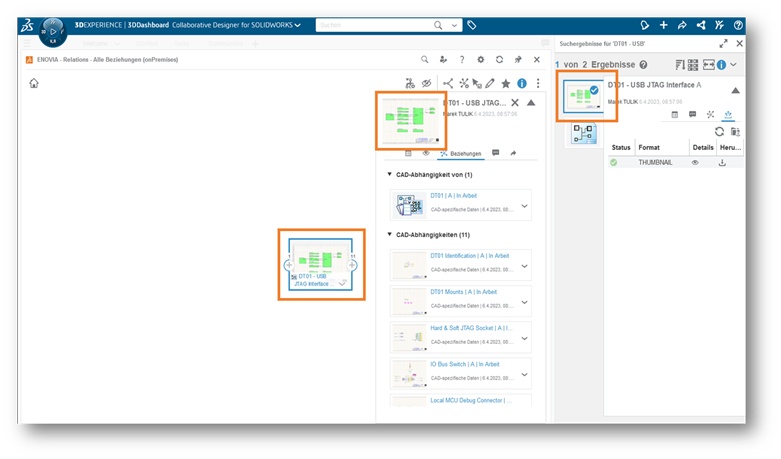

You can now see a thumbnail of the specific schematic saved to the platform wherever a generic thumbnail was used in the past to identify a schematic product.

Save Symbol Preview as Thumbnail

Why

Enhance the user experience by providing a visual cue of electronic symbols when accessed from platform applications

How

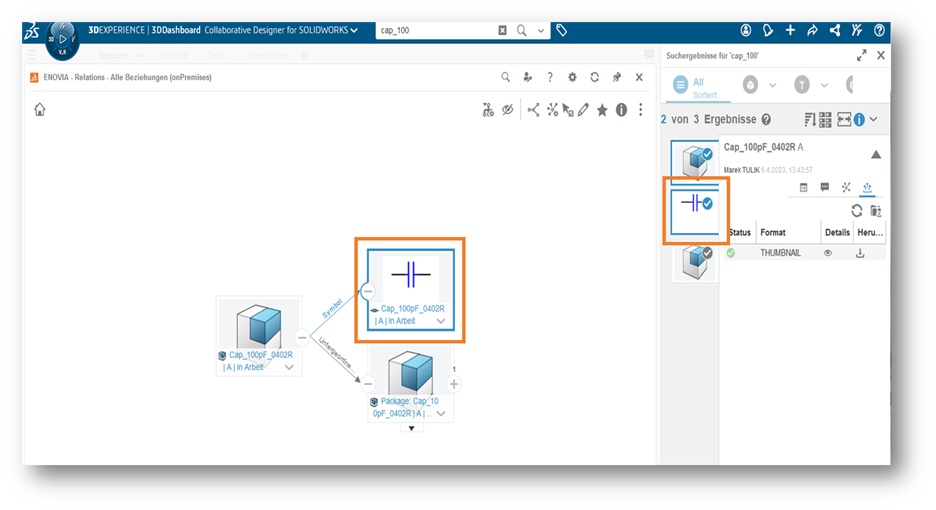

You can now see a thumbnail of symbols saved to the platform wherever a generic thumbnail was used in the past to identify an electronic symbol.
