How to change the standard Action Log layout

Introduction

The Action Log leanget layout is defined by an XML file where each block is defined individually: PARKING, TODAY, TOMORROW, WEEK, NEXT, DONE.

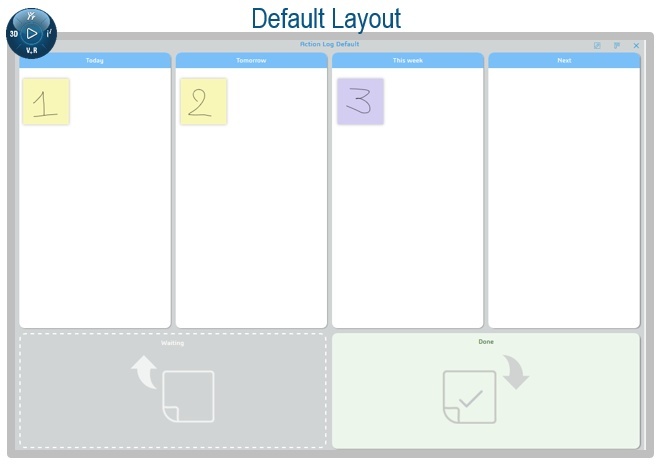

In the default layout PARKING name= Waiting (tag V_DEL3DL_AL_ParkingTitle in the XML definition file) and it is located at the bottom left of the board.

DELMIA R&D has prepared different layouts in the attached XML file

Example

Following layout is available


How to activate custom layouts

Note: the activation has to be made for each individual team board. There is currently (Oct 2020) no automation in place to populate to several teams

  • In the 3DLean board, you want to customize, Open Documents
  • Select Favorites tab
  • Long Select Config.ActionLog to activate the Delete button
  • Delete Config.ActionLog
  • Add (+ sign) the Config.action log file which contains your custom layouts
  • Close Documents
  • Open the Action Log leanget
  • Open customize
  • Select one of the custom design

How to prepare your own layout

  • Open Config.ActionLog.xml with Notepad++ or similar
  • Copy and paste one favorite section (starting with )
  • Please make sure that your copied section does not contain 2 favorite sections
  • Modify the values for the layout definition
  • Save the XML file with the same name to another directory

Favorite section example

              thumbnailUrl=""
              V_DEL3DL_AL_TodayTitle="Version +1"
              V_DEL3DL_AL_TomorrowTitle="Version +2"
              V_DEL3DL_AL_WeekTitle="Ideas / Next"
              V_DEL3DL_AL_NextTitle="Administrative / Others"
              V_DEL3DL_AL_ParkingTitle="Waiting"
              V_DEL3DL_AL_DoneTitle="Done"
              V_DEL3DL_AL_CustomLayout="true"
              V_DEL3DL_AL_TodayTop="0"
              V_DEL3DL_AL_TodayLeft="10"
              V_DEL3DL_AL_TodayWidth="20"
              V_DEL3DL_AL_TodayHeight="75"
              V_DEL3DL_AL_TomorrowTop="0"
              V_DEL3DL_AL_TomorrowLeft="30"
              V_DEL3DL_AL_TomorrowWidth="25"
              V_DEL3DL_AL_TomorrowHeight="100"
              V_DEL3DL_AL_WeekTop="0"
              V_DEL3DL_AL_WeekLeft="55"
              V_DEL3DL_AL_WeekWidth="45"
              V_DEL3DL_AL_WeekHeight="100"
              V_DEL3DL_AL_NextTop="75"
              V_DEL3DL_AL_NextLeft="10"
              V_DEL3DL_AL_NextWidth="20"
              V_DEL3DL_AL_NextHeight="25"
              V_DEL3DL_AL_ParkingTop="0"
              V_DEL3DL_AL_ParkingLeft="0"
              V_DEL3DL_AL_ParkingWidth="10"
              V_DEL3DL_AL_ParkingHeight="50"
              V_DEL3DL_AL_DoneTop="50"
              V_DEL3DL_AL_DoneLeft="0"
              V_DEL3DL_AL_DoneWidth="10"
              V_DEL3DL_AL_DoneHeight="50" />

Some special characters might generate unexpected behavior and shall then be replaced as follow.

''
<<
>>
&

&

For example:

              V_DEL3DL_AL_TodayTitle="< 5 Giorni"
              V_DEL3DL_AL_TomorrowTitle="> 5 giorni"

​​​​​​​

How to understand the layout attributes

Explanation

Note: Block is any value from Today/Tomorrow/Week/Next/Parking/Done

V_DEL3DL_TitleTitle as visible in the Action Board Customize menu
V_DEL3DL_AL_BlockTitle

Title as visible in the top section of the block in the Action Board

Type: TEXT

V_DEL3DL_AL_BlockTop

Position of the top of the Block in the Action Log

Type: Numeric from 0 to 100

0 => positioned at the top

50 => positioned at 50% of the height of the leanget

V_DEL3DL_AL_BlockLeft

Position of the left border of the Block in the Action Log

Type: Numeric from 0 to 100

0 => positioned at the very left

50 => positioned at 50% of the width of the leanget

V_DEL3DL_AL_BlockHeight

Height of the Block in the Action log

Type: Numeric from 0 to 100

0 => not tested. Possibly not visible

50 => block has 50% of the displayed height of the Action Log

100 => block has 100% of the displayed height of the Action Log

V_DEL3DL_AL_CustomLayout

Not tested, Could be mandatory

Type: Boolean. "true" by default for the custom layouts

thumbnailUrlNot tested. Shall be a thumbnail to make the layout concept clearer for the user
