Zones - 3D Space Datamodel

Context

Describe Space product structure organisation and space object hiearchy

Describe Object attributes

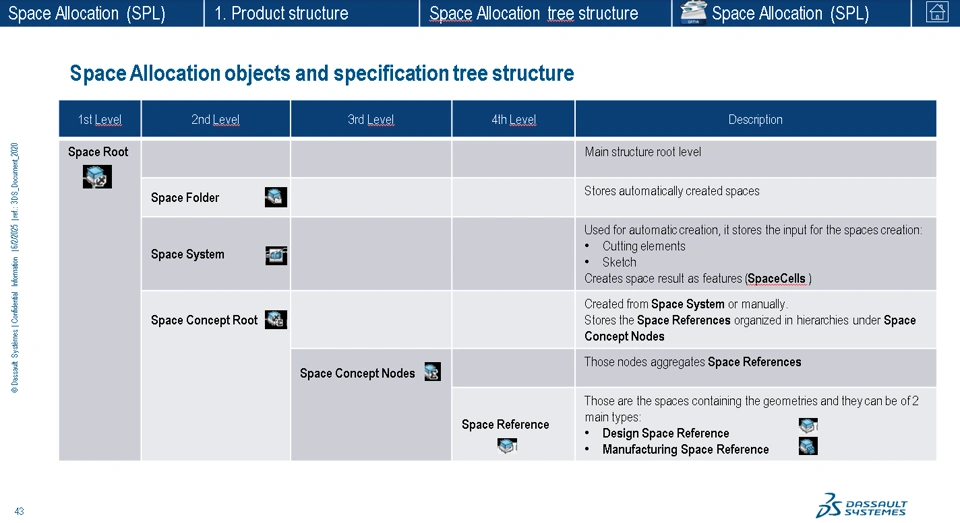

Space product structure organisation and space object hiearchy

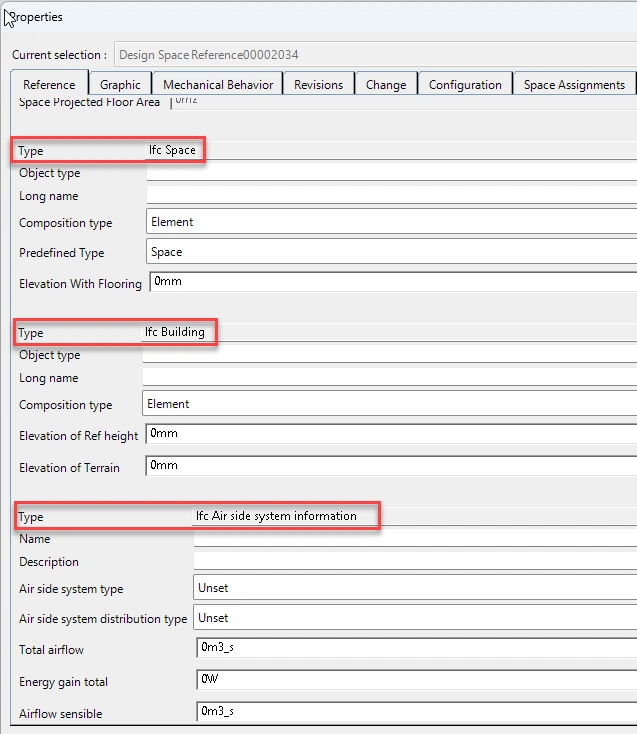

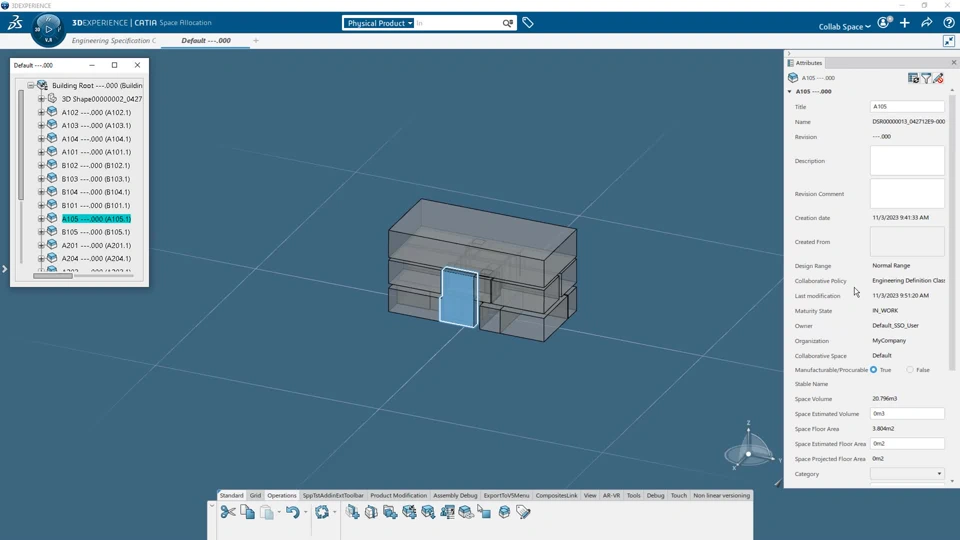

3D Space object attributes

New in 2024x : introduction of IFC attributes for zones

User Interface

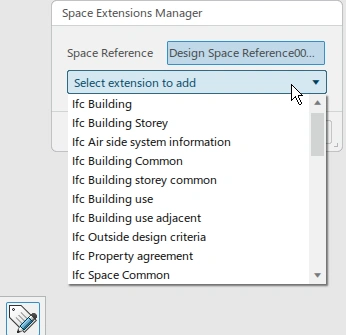

use "Space Extension Manager" command to add Ifc extension to your 3D design Space to add associated attributes

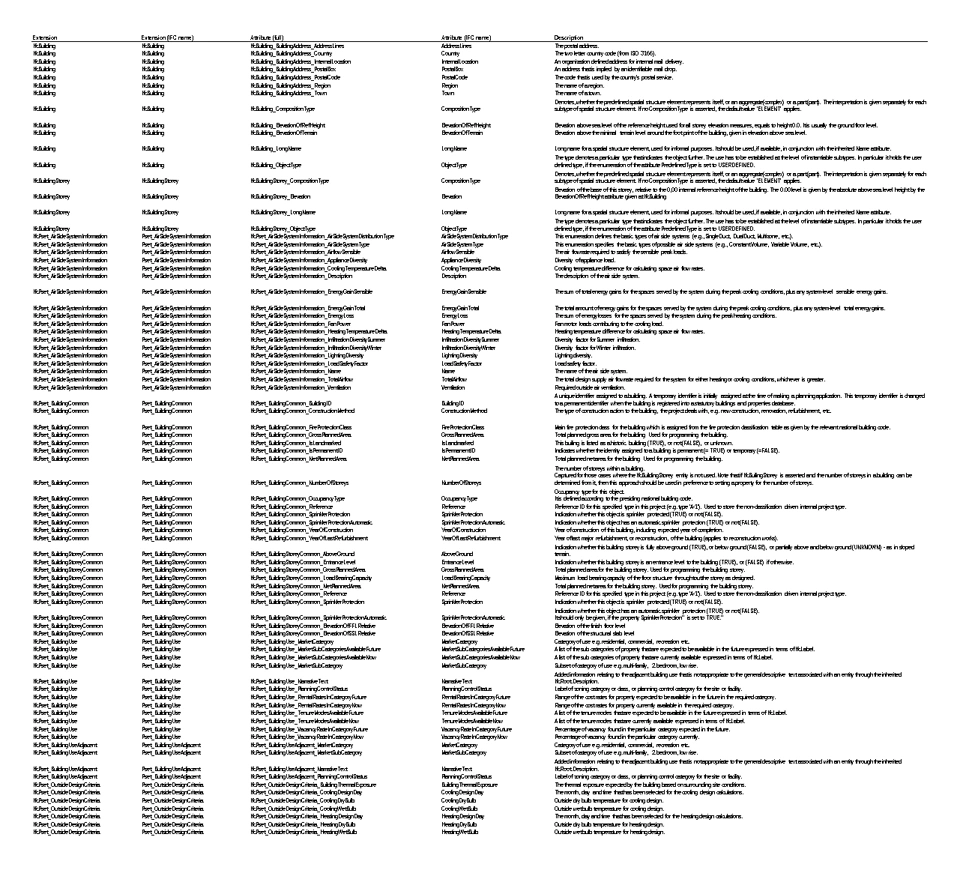

list of supported ifc extensions and attributes:

3D Space Environemental rules

Concept

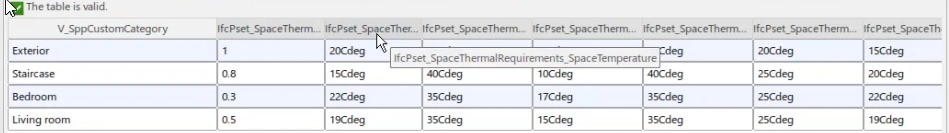

Each 3D zone can have its category defined in the dedicated attribute of the "Custom" extension. Upon using the Auto-Set Attributes command, all default values defined in the category table are set to the selected 3D zones.

Admin

  • Engineering Specification
    • Need to create a Space Specification object in Engineering Specification Editor App
  • Techno rule table
    • Add in it a Space Category table (create table + copy /past table in Specification object)
    • Add as many collumn as wanted, each collumn header must have the value = Ifc attribut internal name
      • fill the cells

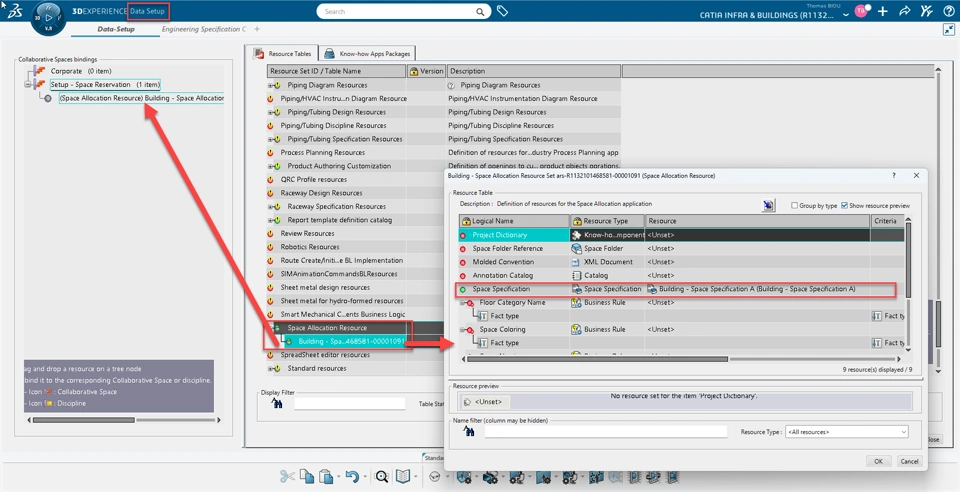

  • Datasetup App
    • Create new "resource set"
    • Add the specification to the dedicated resource
    • attach the "resource set" to you project to have all user taking benefit of it
