P&ID - Layer management

Introduction

Layer usage in P&ID is still not GA in 24x and we don't know when it will become GA

It can be used with Environement variable : RFLP_SCH_LAYERS=1

Instead of layer , you can use Multiple View.

The advantage of Layers is that :

  • the data from the different layers can be connected
  • you can more easily move element from one layer to another afterward

Layer usage - user side

Exemple of layer usage to store in P&ID for multi langage information

note: layer information is store at the View level--> if you copy the view the layeur information is maintain for the elements represented in the view



Layer Usage Admin side

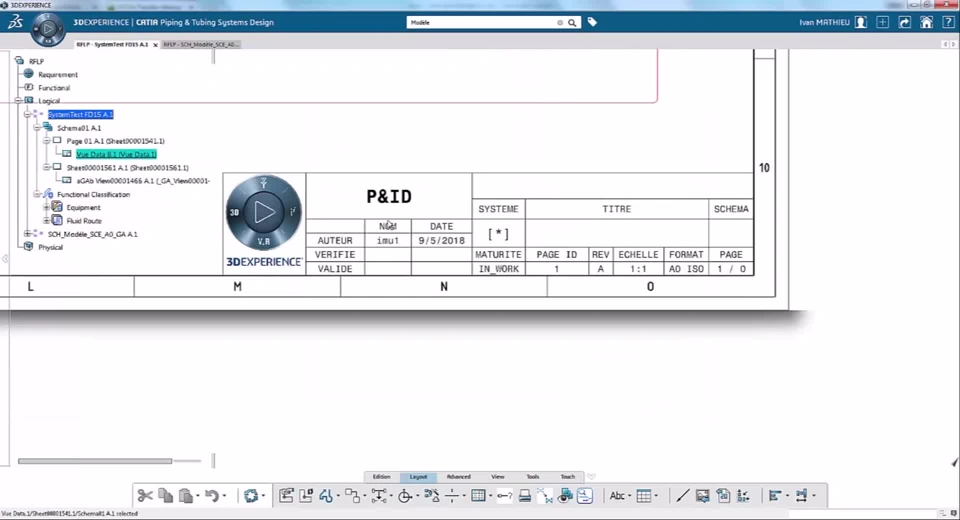

Detailled video about how to :

  • define different layers and filters
  • use the search to found text and place them in a layer
  • filter the P&ID display using filters based on layers
