Apply Frame & title block

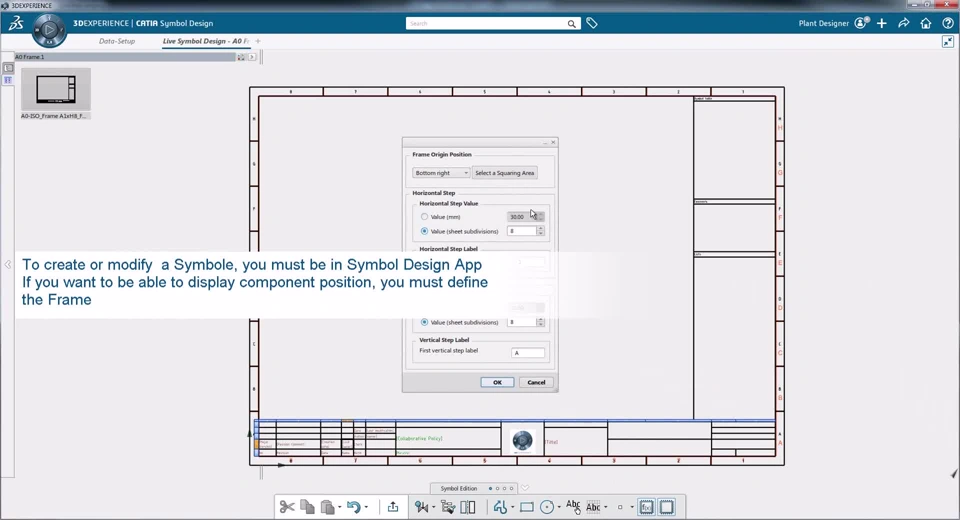

Frame and Title block are defined inside a Logical Reference object inside a symbol rep.

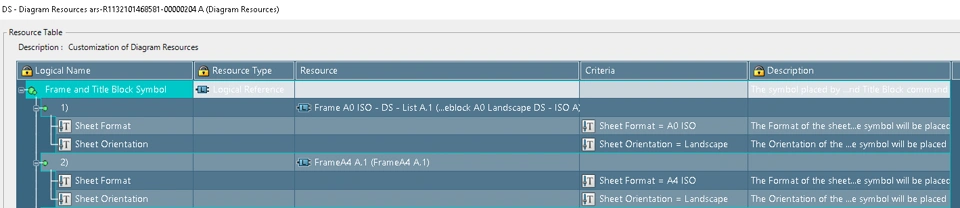

They can be predefined and attached into the Diagram ressource set in datasetup

They will be automatically apply at sheet creation and if multiple templates are applicable for a given sheet size and orientation, then user can switch from one to the other

Modify informations in Title block

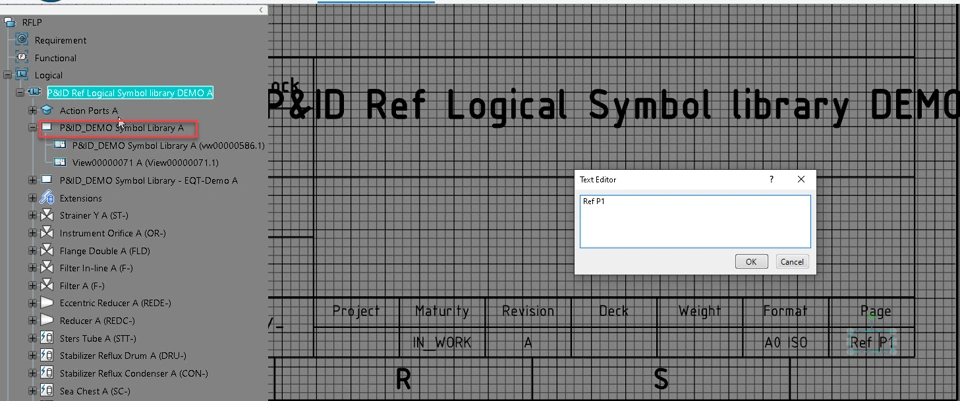

Title block can contains some text template that will be automatically resolved according P&ID attributes

You can also modify locally the title block by adding addditinal text or picture by editing (double click) on the sheet object in tree

Usage of Frame & Title block

Define Frame & Title block in details

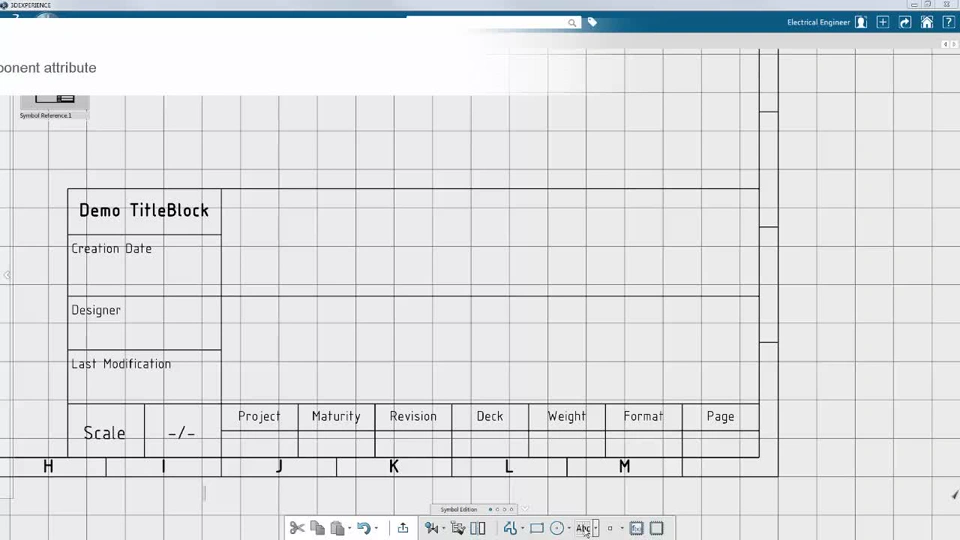

Note : In the following video we are drawing line for the title block, you can also insert a table instead and merge cells
