Context

Object Classes

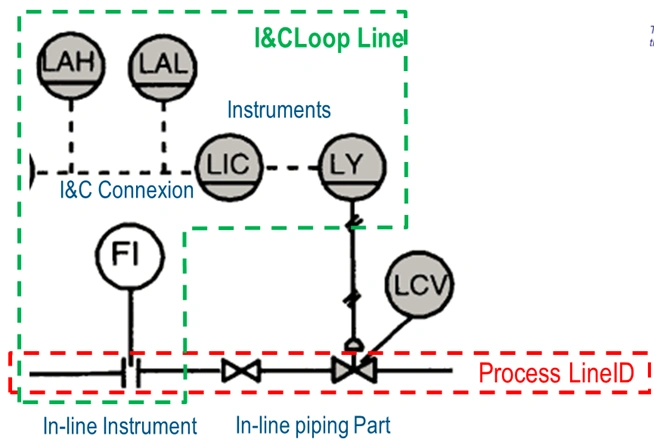

Instrument objects:

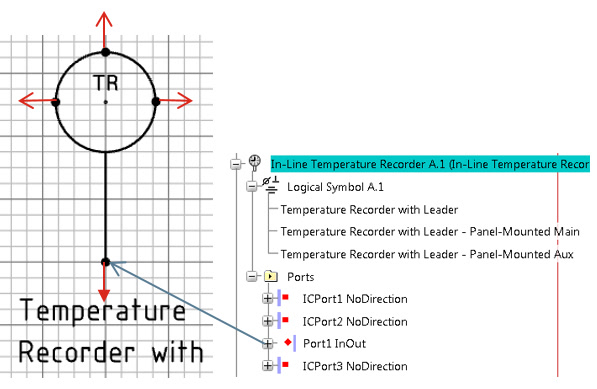

• "In-line" instrument are “Logical Piping Instrument”
• Instruments are also "Logical Piping Instrument"

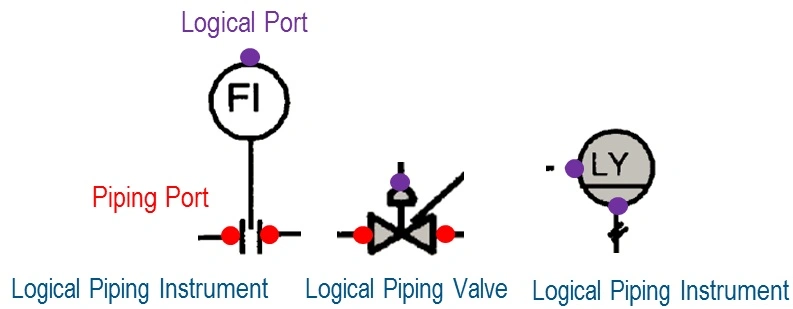

Ports are :

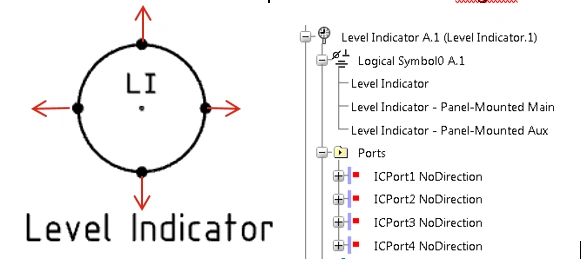

• For instrument signal connection
  • “Logical port” (ICPort1, ...)
  • flow direction = "NoDirection"

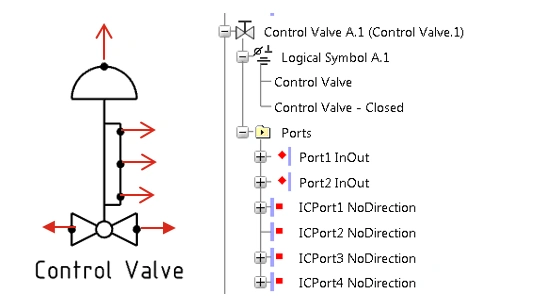

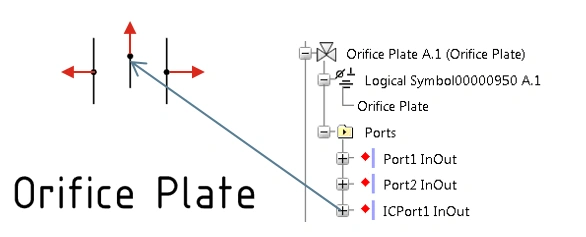

• for connection between instrument & Equipment, Piping Component or Process line
  • "Piping Port" (Port1, ....)
  • flow direction = "InOut" or "In"

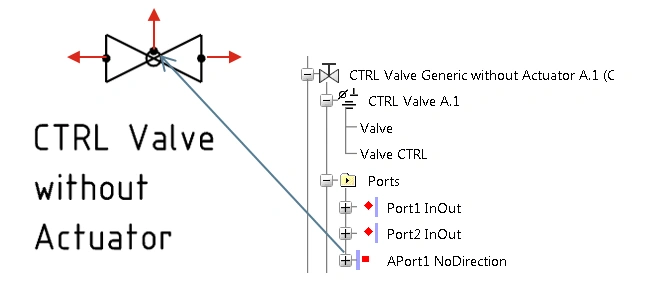

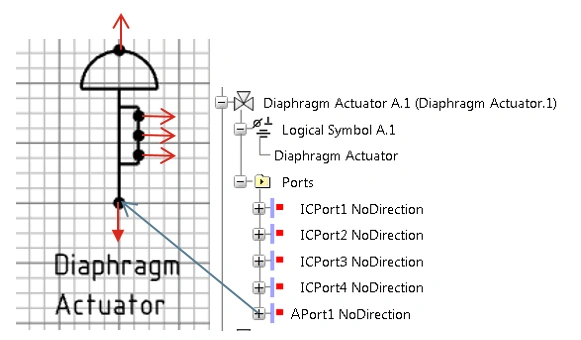

• for Actuator port conencted to valve
  • "Piping port" (APort1,...)

  •  flow direction = "NoDirection"
