A big thanks to @GF  who is the author of all this content

Data

Here is the zip containing the 3dxml of the resource and the corresponding text file.

Content description

Branch Definition Table

Definition of segment dimension corresponding to raceway dimension

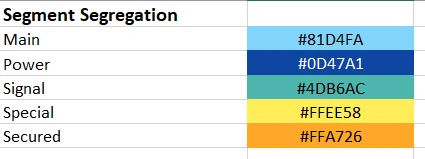

Segment Separation Code

Main
Power
Signal
Special
Secured

Compatibility Table

Compatibility between cable and segment

Compute the Length of a Distant Link

Length of a Distant Link compute as orthogonal route

Validate Segment Overloading for Input Conductor Considering Underlying Conductors

Routing rules

1.  FR_Segment : Validate segment Filling Ratio
2.  FR_Penetration : Validate Penetration Filling ratio
3.  COMP_Segment : Compatibility Cable/segment (see Compatibility Table)
4. COMP_Cable : Validate Compatibility between cable already routed and cable is going to be routed
5. BendRaduis : Validate Compatibility between segment Bend Raduis and cable Bend Raduis

Compute Filling Ratio of the Segment

Compute filling ratio of the segment with the cable as a square

Compute Segment Color

Validate Extremity Connection

Validate If Branches Can Be Merged

Computes X & Y offset values of secondary branches during junction arrangement

Compute Feature Name

Naming Branch & Segment
