Introduction

Usage :  Involved when you route logical pipe, logical duct, or logical cable elements in a diagram view

Allow to customize the routing mode options for different routable objects. Available routing modes are : angle (AngledMode), straight (StraightMode), single step orthogonal (OrthoMode)

Datasetup Resource Set :

• Diagram Resource

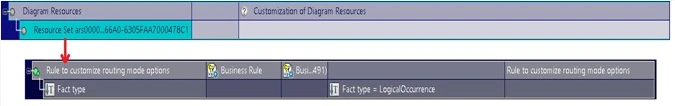

Datasetup Resource : Customizing routing mode options

EKL : Preference to restrict routing mode based on type and application (21xFD16LA - FUN118584) - (23xFD01 - FUN129668)

• Variable : RFLP_ROUTINGMODE_PREF
• New BL entry in datasetup Diagram resource
• Restrict the list of available routing modes for each type of logical Routable object (pipe, Duct, Cable ….) between :
  • Straight Line route mode
  • Angled route mode
  • Single Step Orthogonal route mode.

EKL : Customize available angle in angled mode

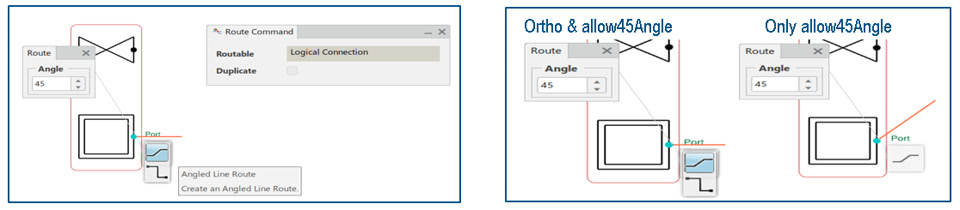

• The customer can customize the angle of the Angled Route mode through the business rule for any routable objects like logical pipe, logical duct, cable, etc. and logical connection
• The Business Rule “Schematic_CustomizeRoutingModes” is already present to customize routing mode options for different routable objects. Through this rule, user can customize the available routings modes for different types of routables.
• In the existing Business Rule “Schematic_CustomizeRoutingModes”, a new output Boolean (Allow45Angle) parameter is added to customize the angle of Angled mode.
  • Parameters.SetAttributeBoolean("StraightMode", StraightModeAvailable)
  • Parameters.SetAttributeBoolean("AngledMode", AngledModeAvailable)
  • Parameters.SetAttributeBoolean("OrthoMode", OrthoModeAvailable)
  • Parameters.SetAttributeBoolean("Allow45Angle", IsFortyFiveAngleAllowed)

Rule Example 1

Description

The following example shows you how to define routing modes for given routing elements.

Rule

// ThisObject --> LogicalOccurence
Notify("Rule triggered")

Let RoutableReference(RFLVPMLogicalReference)
Set RoutableReference = Parameters.GetAttributeObject ("Routable_Ref")

Let StraightModeAvailable(Boolean)
Set StraightModeAvailable = TRUE
Let AngledModeAvailable(Boolean)
Set AngledModeAvailable = TRUE
Let OrthoModeAvailable(Boolean)
Set OrthoModeAvailable = TRUE

if (NULL <> RoutableReference)
{
	Notify("RoutableObject")

	Let RoutableObjectType(String)
	Set RoutableObjectType = RoutableReference.V_discipline


	If ( "Piping_Logical_Pipe" == RoutableObjectType)
	{
		Notify("Logical Pipe not restricted mode")
		// Set StraightModeAvailable = FALSE
	}
	Else if ( "HVAC_Logical_Duct" == RoutableObjectType)
	{
		Notify("Logical Duct")
		Set StraightModeAvailable = FALSE
		Set AngledModeAvailable = FALSE

	}
	Else if ( "EleLogicalCable" == RoutableObjectType)
	{
		Notify("Logical Cable")
		Set OrthoModeAvailable = FALSE
	}
}
else
{
	Notify("Logical Connection")
	Set AngledModeAvailable = FALSE
}
Parameters.SetAttributeBoolean("StraightMode", StraightModeAvailable)
Parameters.SetAttributeBoolean("AngledMode", AngledModeAvailable)
Parameters.SetAttributeBoolean("OrthoMode", OrthoModeAvailable)
