Unbind your Design Exploration and amplify your capabilities with Visual Scripting

Amplify your design & engineering capabilities with a visual scripting modeling solution

Explore more designs & more complex patterns, capture & reuse algorithmic Design patterns for a maximum team creativity & efficiency

Visual Script Designer is now complementing our Portfolio, addressing needs from various customers willing to embrace this new approach, fitting seamlessly with their current native environment and workflows, whether on Cloud or On Premise

Beyond that, our ambition is to build an algorithmic modeling platform connecting to other applications to address extended use cases and downstream processes

Benefits

Generate highly complex, adaptive and intelligent designs using CATIA parametric modeling technology, with an intuitive visual scripting and no-code approach

Amplify the design process, increase creative flexibility and explore more design alternatives and styling patterns

Capture and Reuse design algorithms to maximize your team efficiency and collaboration

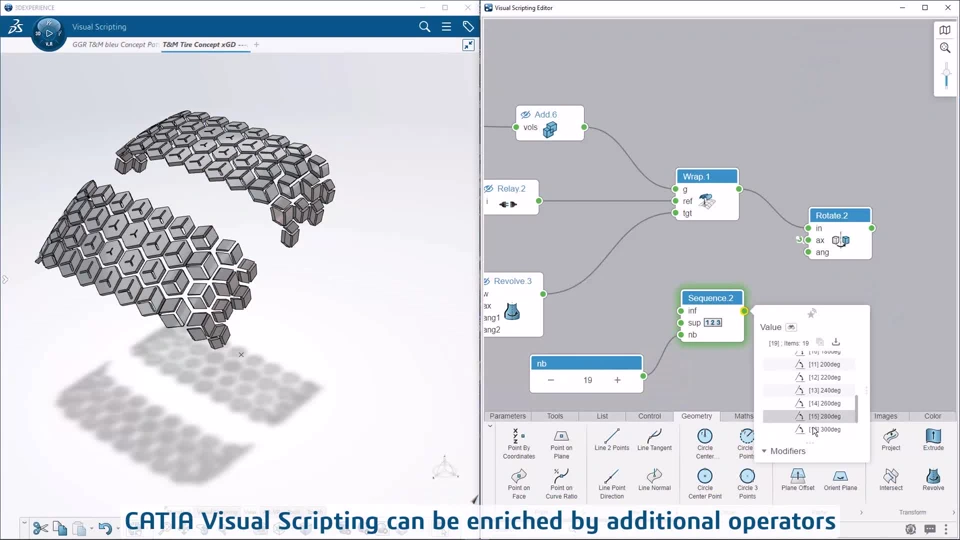

Extend your visual scripting capabilities with specialized & advanced operators to address all design & engineering challenges (requiring additional roles / apps)

Highlights

With CATIA Visual Scripting,  designers can « generate » highly complex geometries based on graphical representations of logic rather than writing line of codes.

• A Design Sequence is a new feature set that you can create in any 3D Shape. It contains a set of operations driven by external inputs or internal parameters. You can directly compose or edit the design sequence graph with the visual script editor.

• Generate all kind of geometry (point, curve, surface, volumes), work with mesh or polyhedral objects, compute and process any kind of data

• Geometric outputs are immediately reusable for downstream activities like detailed design, template instantiation and manufacturing preparation, thanks to CATIA modeler technology (offering the best geometry quality and accuracy)
