Rapidly design and validate DC and high-frequency AC electrical network with multi-level of detail

The Electric Power Systems library enables to rapidly design and validate electrical power systems, comprising DC and AC high frequency (800Hz) distribution architecture with real time capabilities. This applies for energy balance architecture studies, transient studies, thermal management and coupling with cooling. Moreover, failure investigation can be performed with Fault triggering and re-configuration for fail safe/fail active architectures.

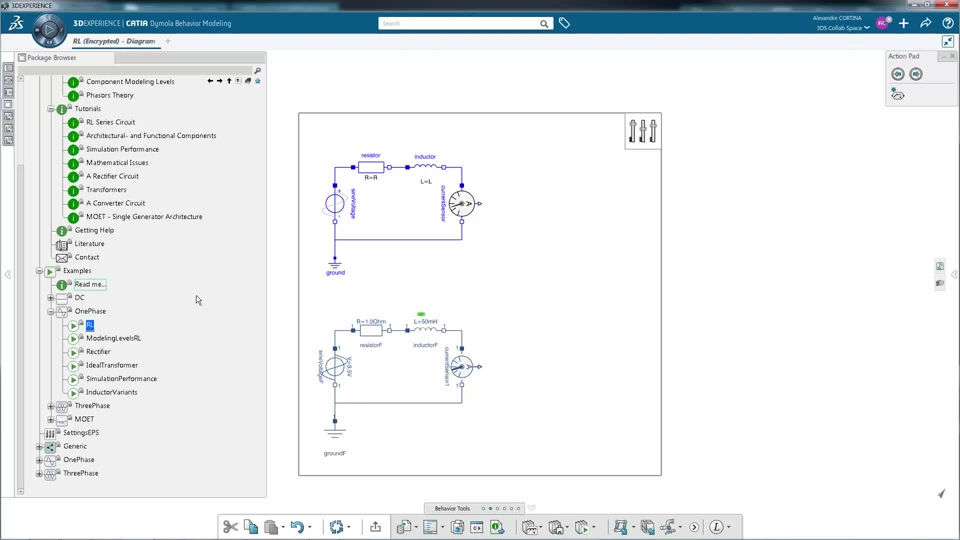

The EPSL covers the key components of an electrical power system at different levels of detail. The architectural level corresponds to "simple" phasor theory resulting in a quasi-static description of the system. The functional level of detail uses dynamic phasors to cover dynamic effects in the models. The level of detail can be selected via parameters in the components.
Additionally the EPSL enables the description of harmonics of the fundamental AC frequency, which can be either constant or variable. Currently the AC components are either single or three-phased, whereas other phase numbers would be straight-forward to be added due to the generic modeling approach of components.

Benefits

• Efficient control design and validation of the distribution architectures

• Performant execution, real time capabilities for efficient control design and validation of the distribution architectures and flight simulators

• Enable the concurrent cooling system design with thermal loss and dissipation of the components

• Fault triggering and re-configuration for fail safe/fail active architectures

• This library is implemented based on phasors.

  • This helps in very fast computation

  • No dynamics in steady state

  • Usual description for electric quantities in power system design

  • It enables steady state initialization

  • Simple computation of RMS value and phase

• This library provides interfaces to thermal domain for loss estimation.

Highlights

• Design and validate aircraft electrical power systems, comprising DC and AC high frequency (800Hz) distribution architectures

• Real-time simulation

• Contain components: Sources, Electrical loads, Semiconductors, Transformer and Rectifier, Lines, Sensors

• Example of reference architecture to easily asses industrial use cases

• Streamlined process along the architecture definition

  • Architectural level: steady state studies, based on phasor

  • Functional level Transient studies based on dynamic phasor

  • Easy to switch from steady state to transient studies with propagation of parameters without having to re-create the models
