Introduction

When working in Piping 3D desing we often need to work in RFLP session either to be able to

• work with LineID
• Work in Schematic driven mode
• Working in ITEM mode

Here are some information about how to create the RFLP session

Standard Open in RFLP from Explore view

The defaut command to open linked data in RFLP.

To be able to open linked data in RFLP, product must have REF/REF Implement link defined. this is the entry point for the system to know what are the data from the different dags (R, F, L, P) that goes toghether

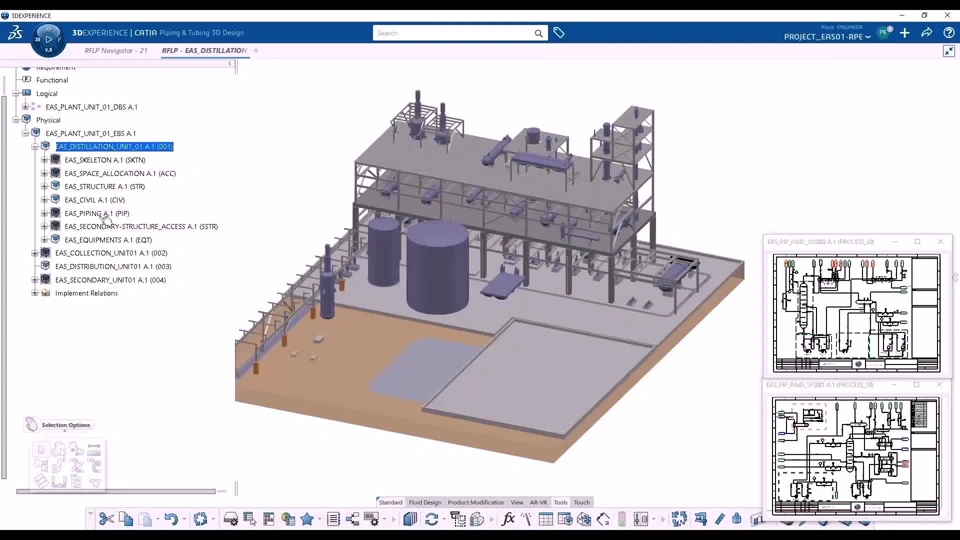

Display 2D & 3D together and Review linked object

Incremental Loading

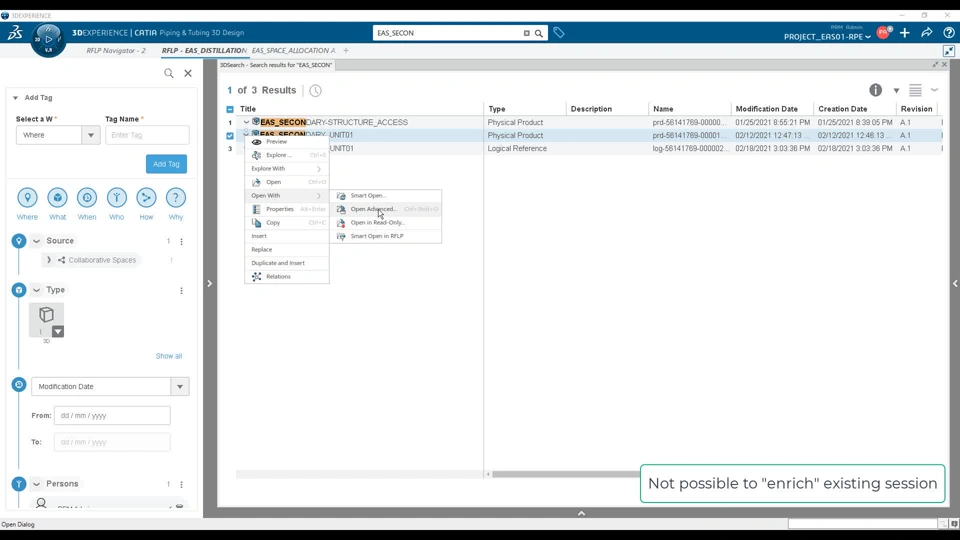

Enrich you session in multiple step from the Expore view

Usage of PLM filters

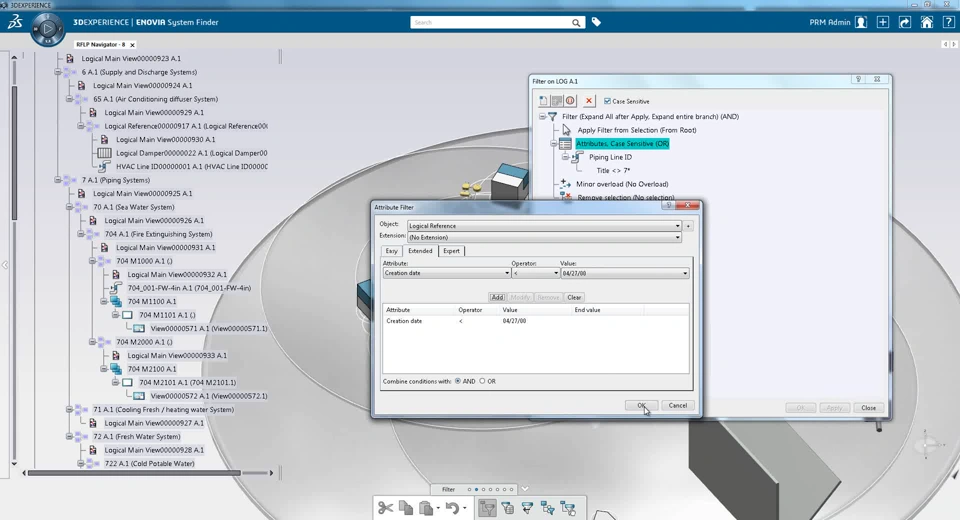

Apply PLM filter from Explore view to filter Schematic and 3D product structure before opening them in authoring mode

Multi root usage in RFLP session

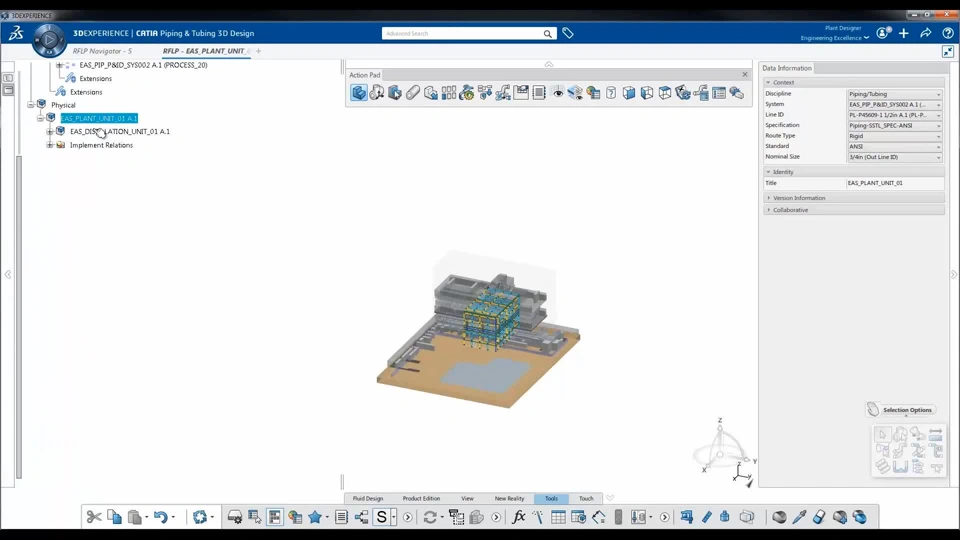

illustrate how to use multiple Root in RFLP session to distinghuish Product that contain context geometry and the one which are working product

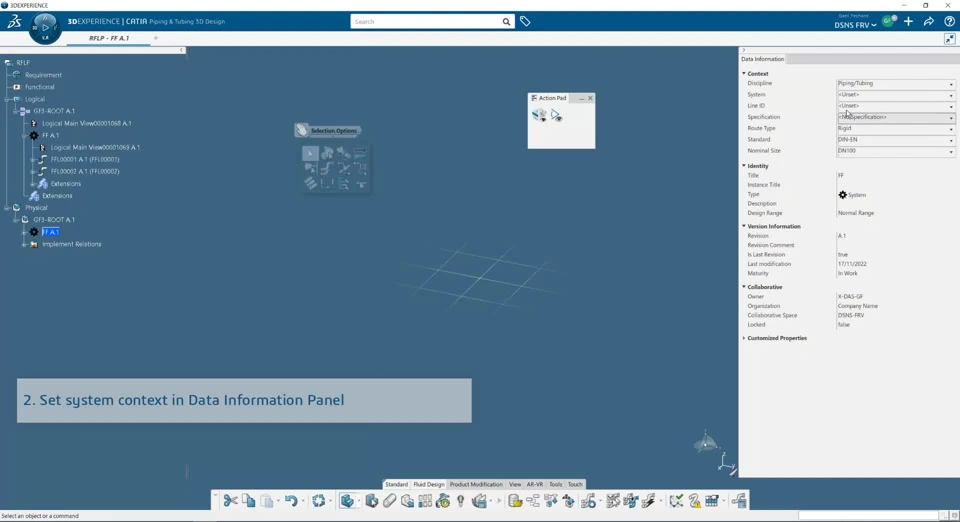

Command : Open Physical data in RFLP editor

Here is a presentation to show how to use the option "Open Physical data in RFLP editor".

And then how to load the corresponding logical data.

This allows you to define a filter on physical data and easily open only the logical data you need.
