Purpuse:
This page describes how to define piping component that will be placed on the pipe skin
Method - Olet Part Definition:
Part Type
Part Geometry
Port geometry

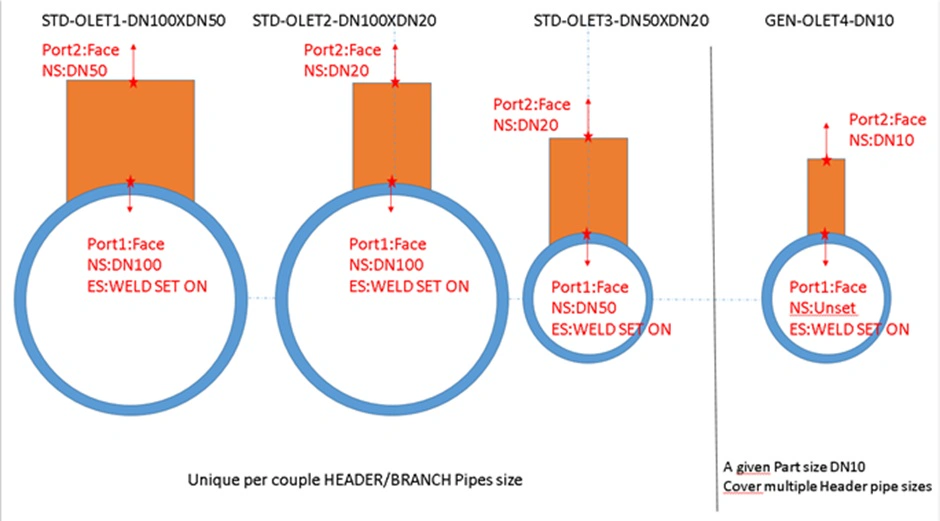

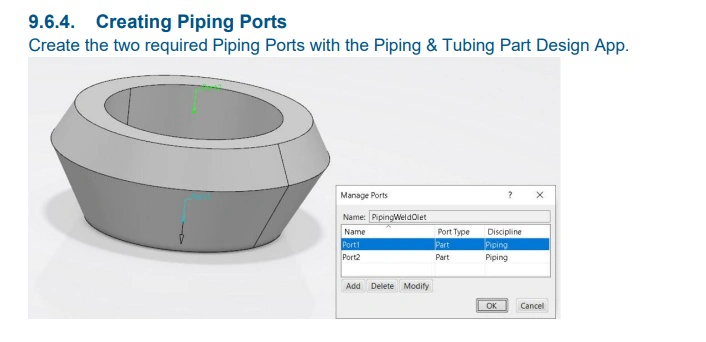

Olet is composed of 2 aligned "Face" ports
- Port1 on the Pipe Header side
- Port2 on the branch connection side

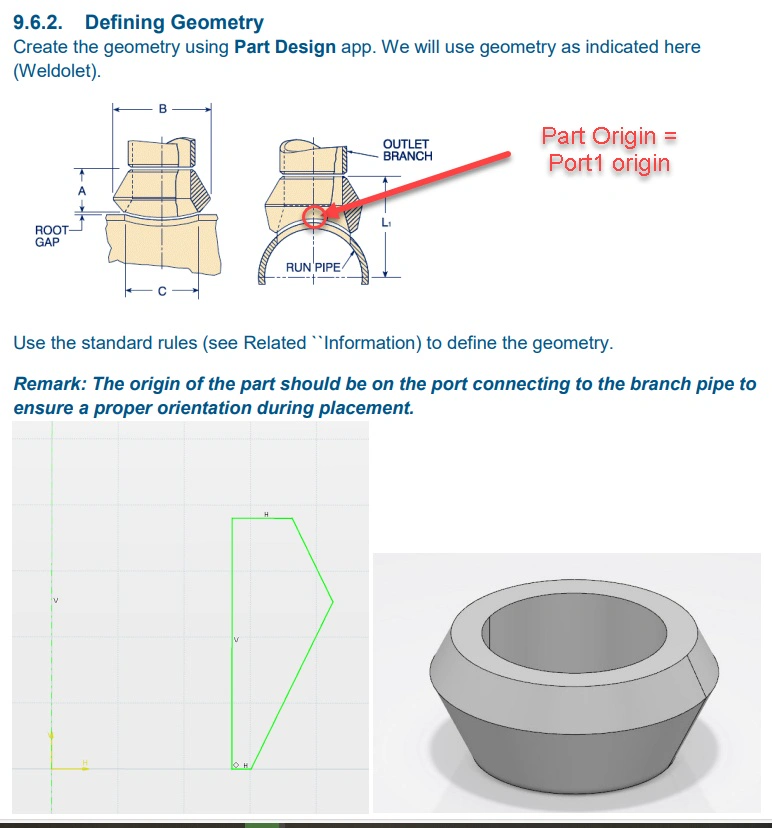

Part origin is on Port1
Port attributes :
2 possibles ways:
- 1 olet part per couple couple HeadedPipeSize/Branch pipe size - STD-OLET
- Specify diferent size on both Ports
- 1 olet part for one branch size but multiple pipe header size - GEN-OLET
- specifying the size only on the Branch side and leave to unset the size on the HeaderPipeSide because the part is compatible with multiple size
