Introduction

most of the command and concept for Branching are common between Piping and HVAC

We recommand you to have a look to the Piping pages:

https://r1132100503382-eu1-3dswym.3dexperience.3ds.com/community/swym:prd:R1132100503382:community:6?content=swym:prd:R1132100503382:wikitree:GP8Dvw6OS1GU5DYJjgJGGQ

HVAC branching dedicated function

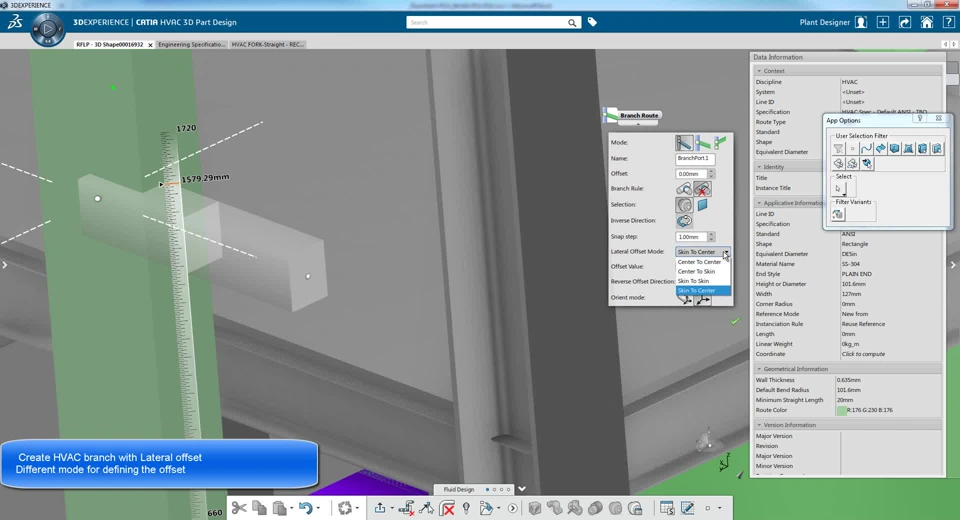

Branch with lateral offset

the position of the branch port can be determine at creation depending if you want to be aligned with center line of header duct or aligned wit hthe duct border with or without offse
