Escalator

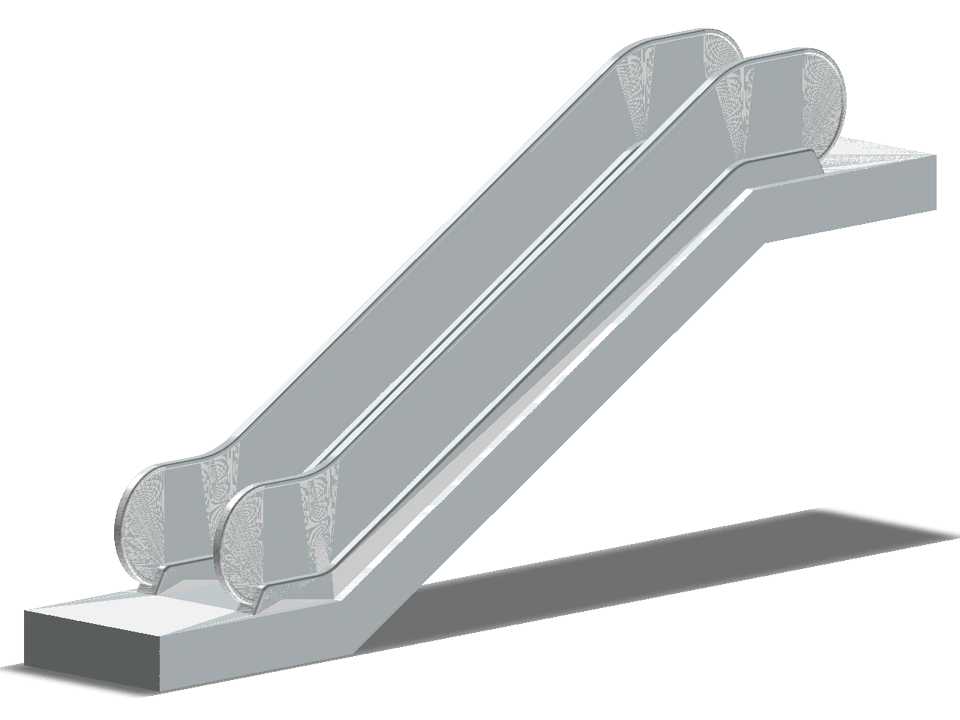

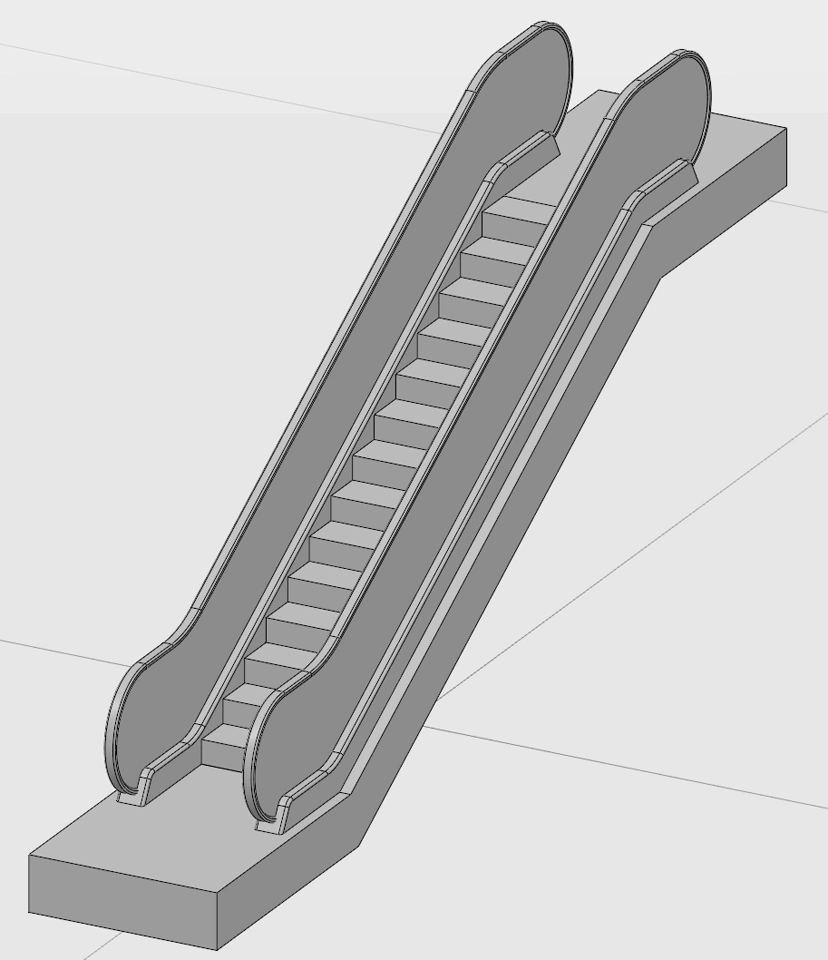

Furnishing type of an escalator. Object type includes an engineering template and UDF definitions for use with the Component Specification tool.

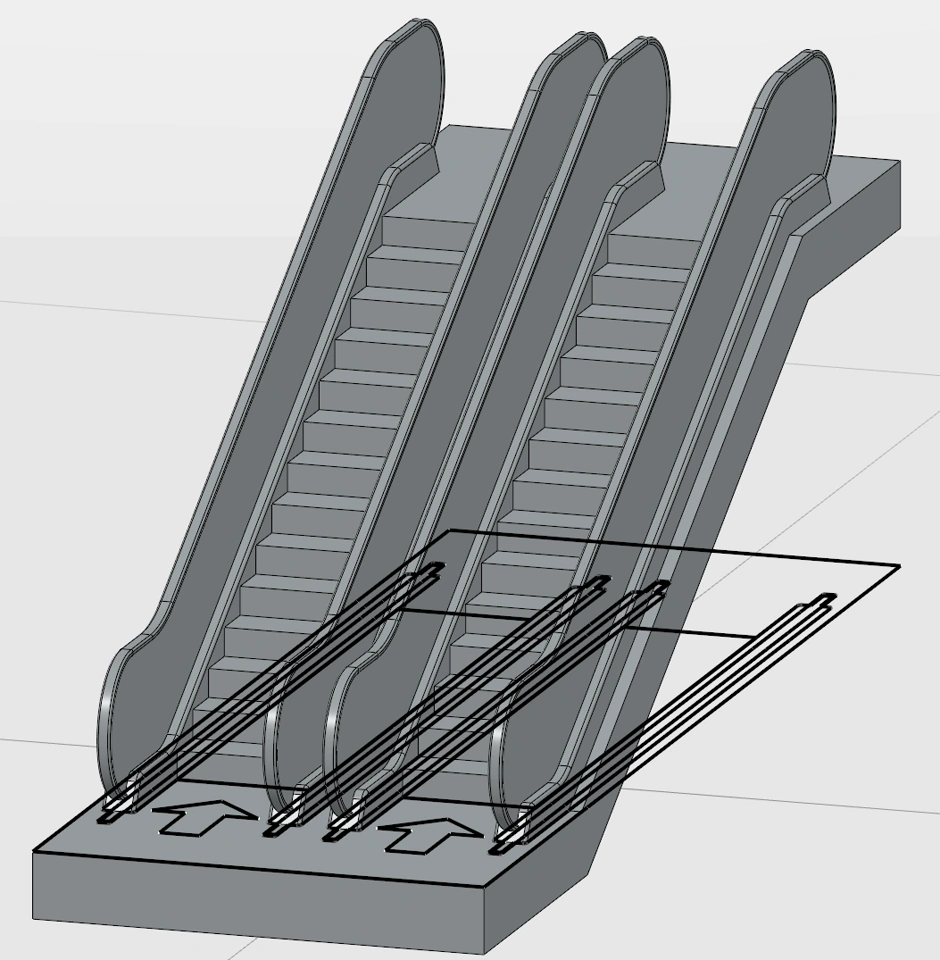

Pictures

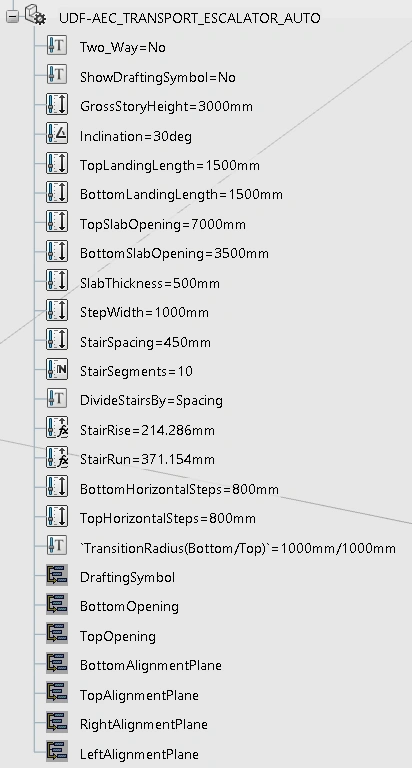

Features Embedded in the Part

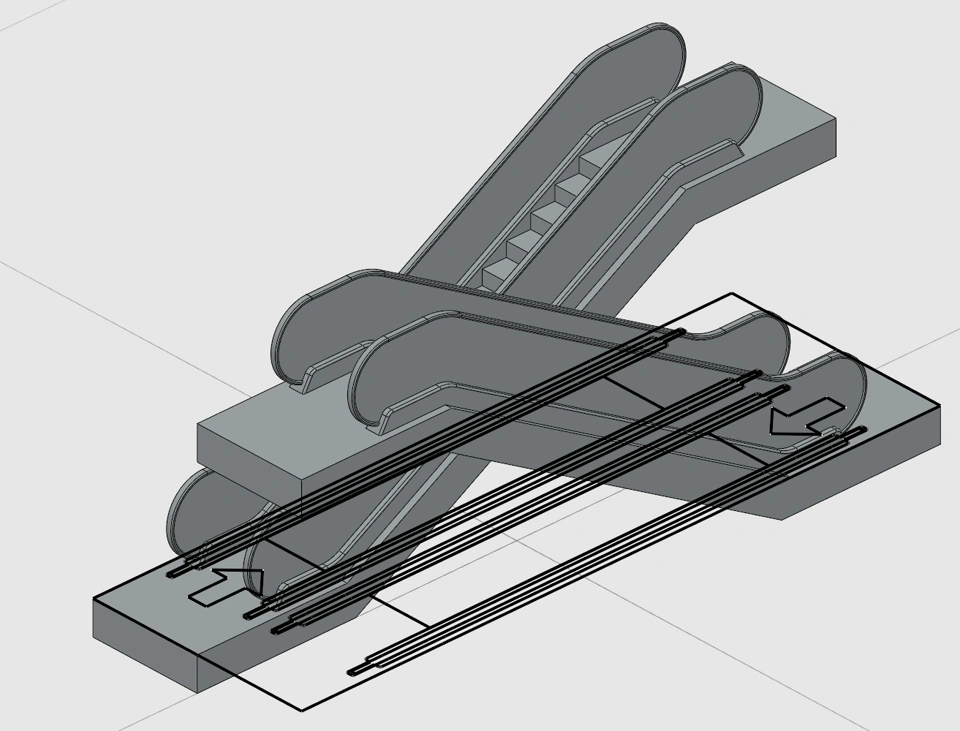

1. Two-Way: Select between a single escalator, two side by side escalators or scissor escalators. The drafting symbol updates accordingly to indicate the bottom of each escalator.

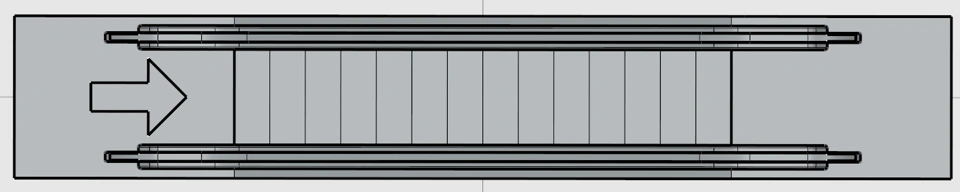

2. Show Drafting Symbol: Hide/Show the 2D symbol.
3. Gross Story Height: Control the floor to floor height

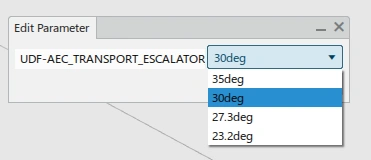

4. Inclination: Select the inclination of the escalator from a list of standard values.


5. Top/Bottom Landing Length: Control the length of the landings after the end of the handrails
6. Top/Bottom Slab Openings: Control the size of the slab openings for the escalator clearance
7. Slab Thickness: Control the thickness of the base slab

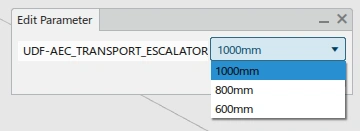

8. Step Width: Select the width of the escalator steps from a list of standard values.


9. Divide Stairs By: Select the method by which the staircase will be divided into steps. The resultant rise and run of the steps is shown as parameters.
   1. Spacing: The number of steps is calculated based on the step spacing specified. The spacing is a diagonal measurement along the line of the staircase.
   2. Segments: The spacing of the steps is calculated based on the number of segments specified, a segment corresponds to a rise/run pair
10. Top/Bottom Horizontal Steps: Control the horizontal run off distance of the escalator steps.

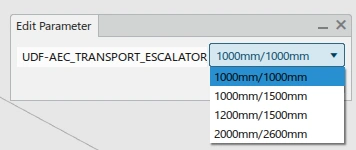

11. Transition Radius: Select between standard radiuses for the transition of the handrail from incline to flat at the top and bottom respectively.



3DXML
