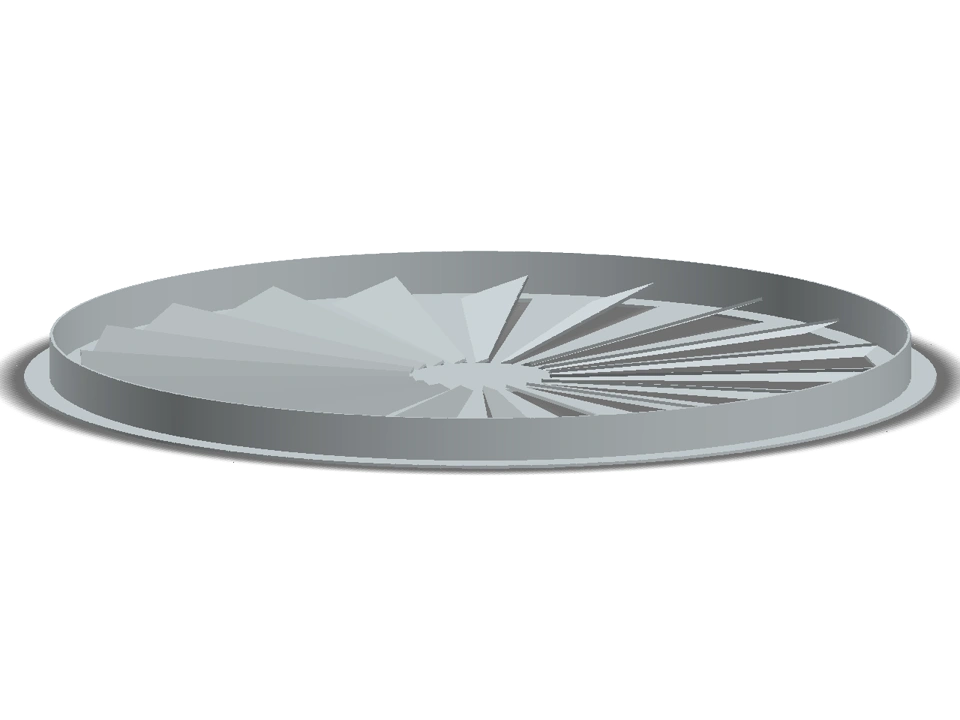

Circular Supply/Return Exhaust Air Diffuser

Pictures

Features Embedded in the Part

Configurable port parameters.

1. CoverType: Select the type of cover for the diffuser, parameters to control the cover types will adjust dynamically based on selection.



   1. Blank



   2. Grill



   3. Swirl Slotted, Swirl Radial and Swirl Radial with Vanes



   4. Louvre



   5. Planar and Planar Perforated



2. Diffuser Size: Select the size for the diffuser


3. Visibility: Change the visibility of the equipment between 3D representation, 2D representation or both.

4. Diffuser Geometry: Change the geometrical parameters of the diffuser



3DXML
