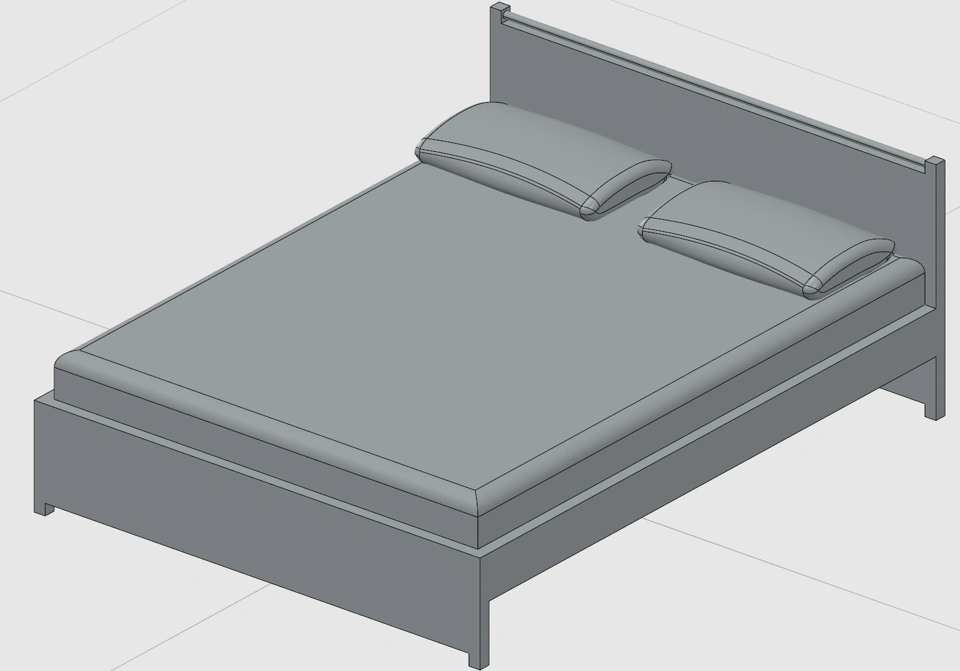

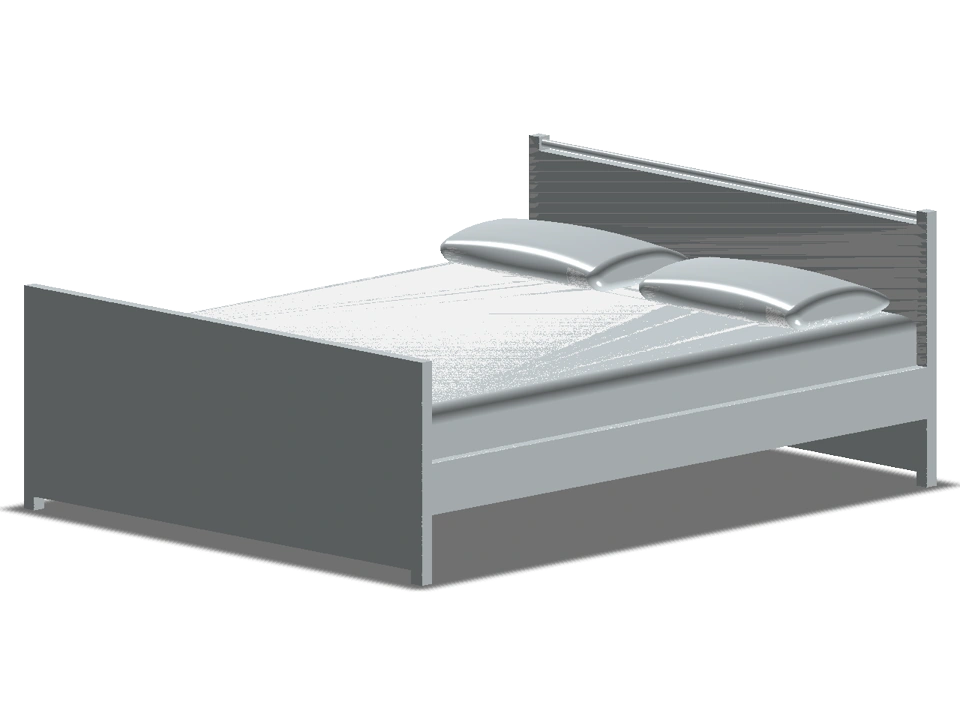

Basic Bed

Furnishing type of a basic bed. Object type includes an engineering template and UDF definitions for use with the Component Specification tool as well as a Design Table to configure all sizes required.

Pictures

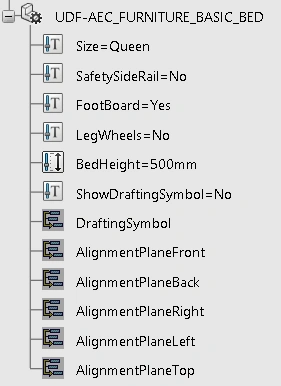

Features Embedded in the Part

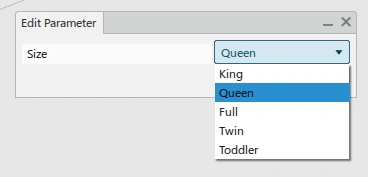

1. Size: Select the required bed size from the ones specified in the design table.

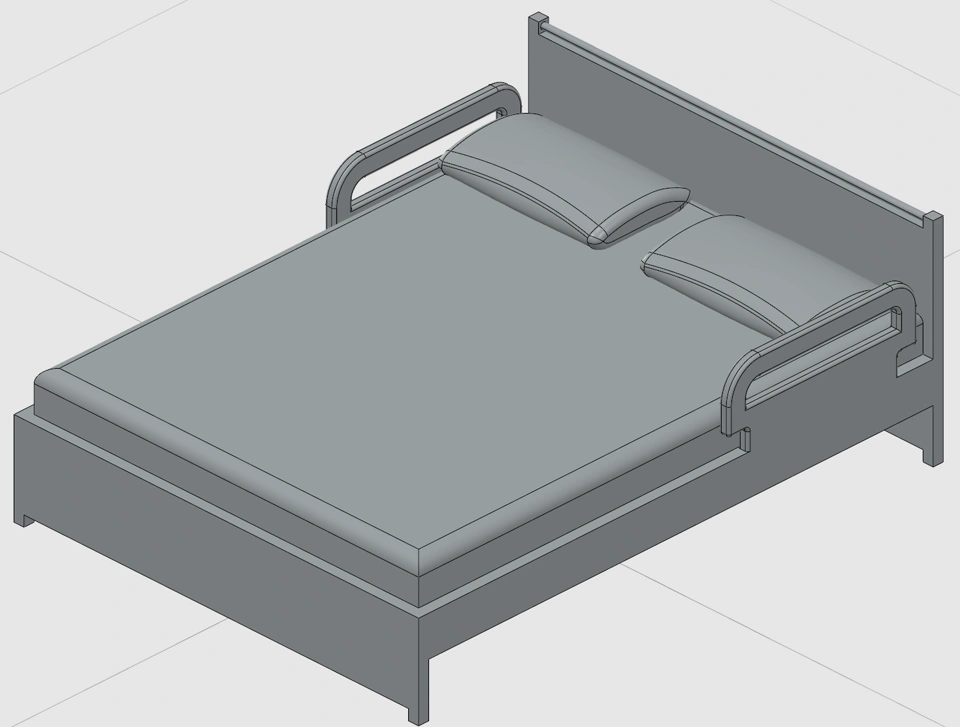

2. Safety Side Rail: Hide/Show the safety side rails of the bed.

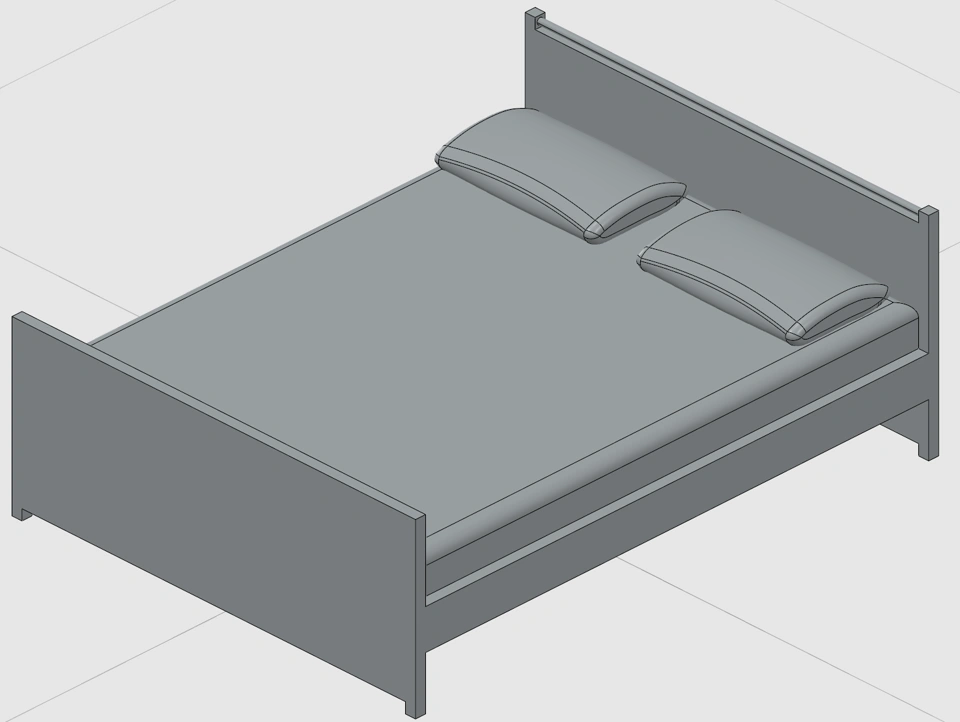

3. Footboard: Hide/Show a footboard for the bed.

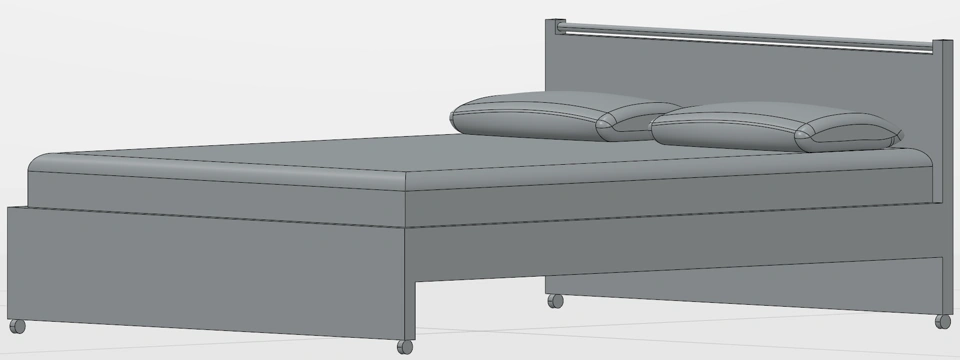

4. Leg Wheels: Switch between static legs or wheels for the bed.


5. Bed Height: configure the height of the bed.

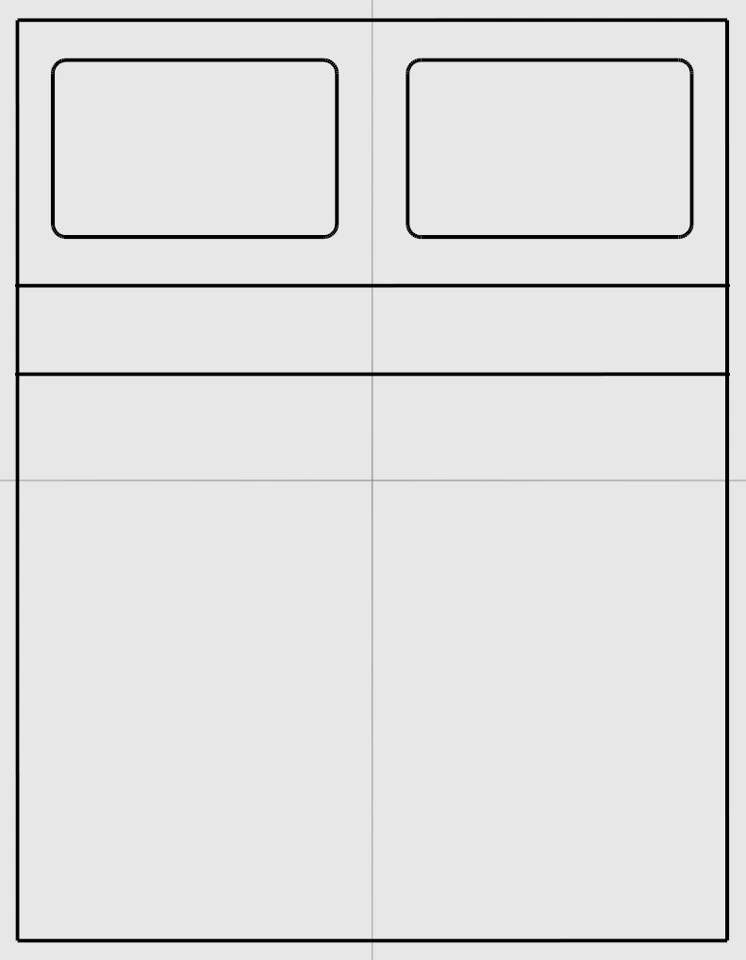

6. Show Drafting Symbol: Hide and show the 2D symbol.

3DXML
