[SOLIDWORKS] 3D SheetMetal Creator

Functional Value

Design with confidence. New and improved feature previews have been added for various sheet metal commands. Drive design intent and equations with the new of new user created parameters.

Ensure flat pattern accuracy with new sheet metal parameters to drive component geometry with bend allowances and bend deductions. Build lofted geometry with true manufacturing intent using new lofted bend with bends functionality.

I
Highlights of the new 3D SheetMetal Creator features and improved user experience

I

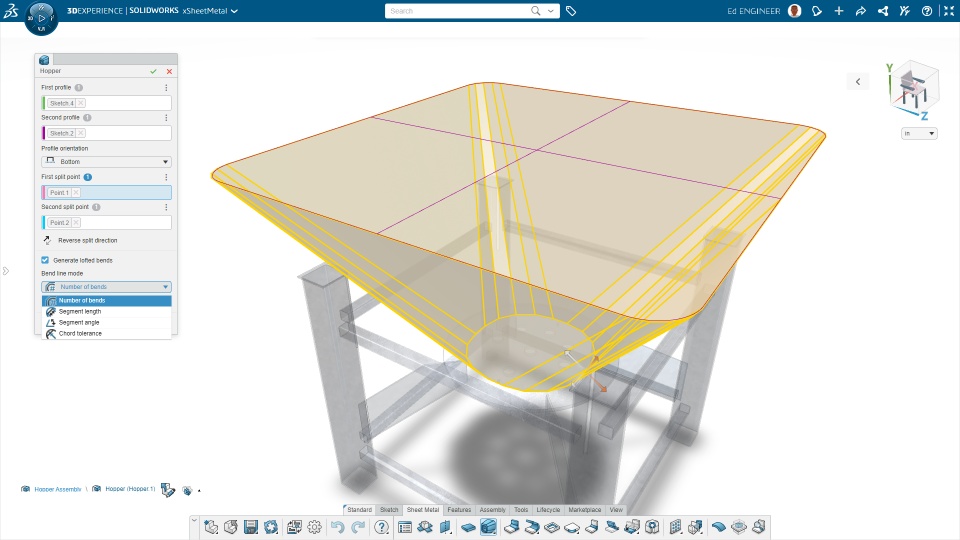

Improve productivity and design for manufacture with the new hopper with lofted bends feature

I

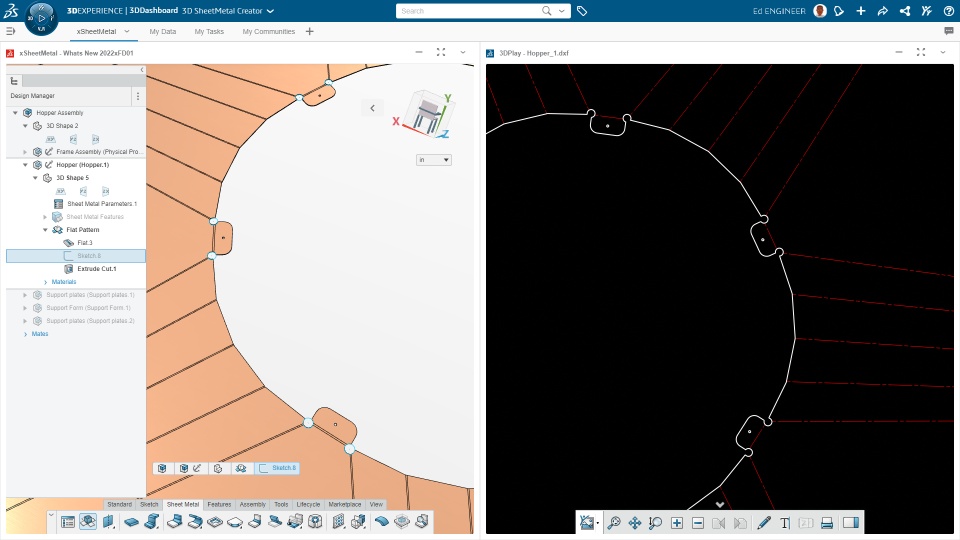

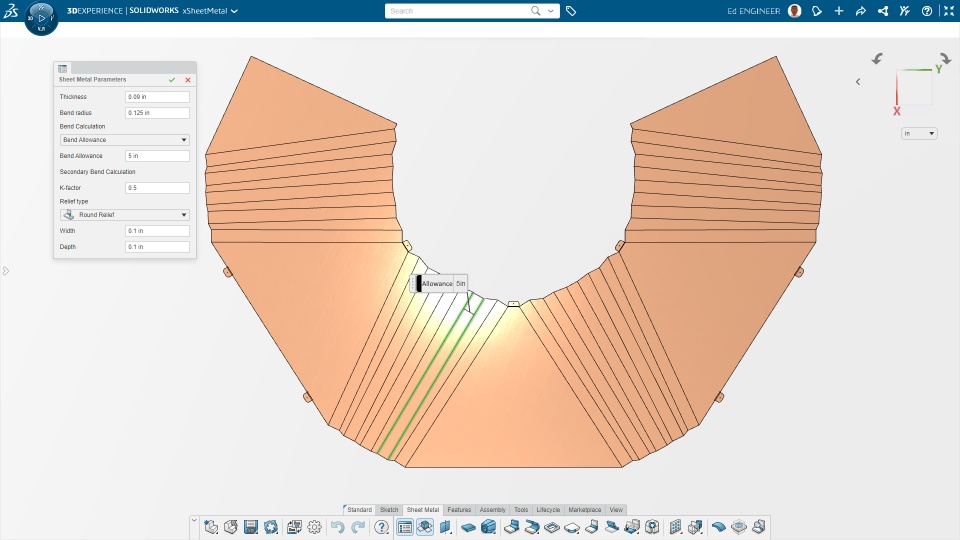

Increase flat pattern accuracy for manufacturing with new bend allowance & bend deduction calculations

I
Ensure manufacturability & reduce manufacturing errors with new flat pattern customization & DXF support for modified flat patterns
