[SIMULIA] 3D Motion Creator

Functional Value

Efficiently set up a new motion model based on an existing SOLIDWORKS desktop model with motion Joints automatically created based on the most common SOLIDWORKS desktop Mates (revolute, prismatic,…).

Reliably run mechanisms including 3D Contacts and analyze contacts behavior in 2D Plots with improved robustness.

Easily incorporate motion results in your existing post processing workflows by exporting analysis results as csv files.

User Experience Value

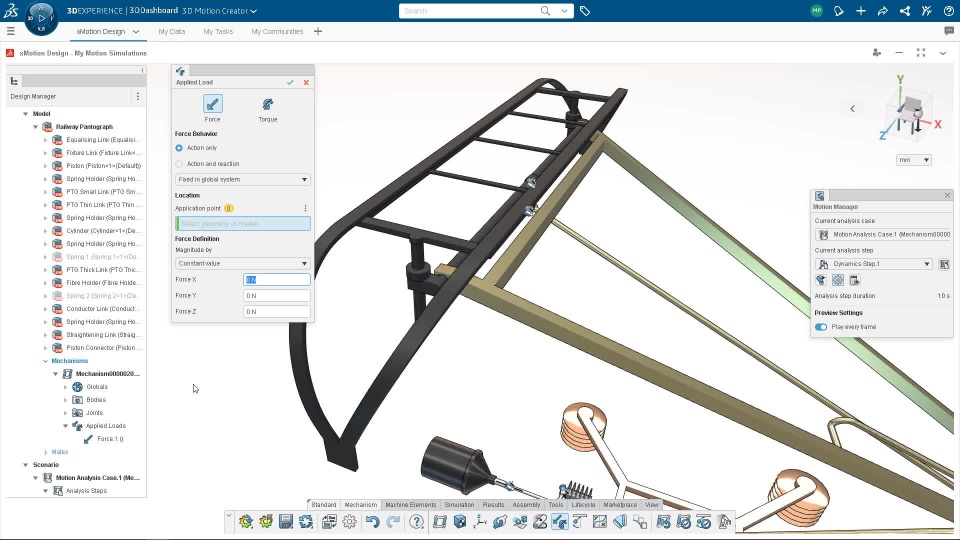

Develop quickly a thorough understanding of the dynamic system behavior with Applied Loads and Motion Drivers velocities visualized during preview and result animation.

I
Highlights of the new features and improved user experience of 3D Motion Creator.

I

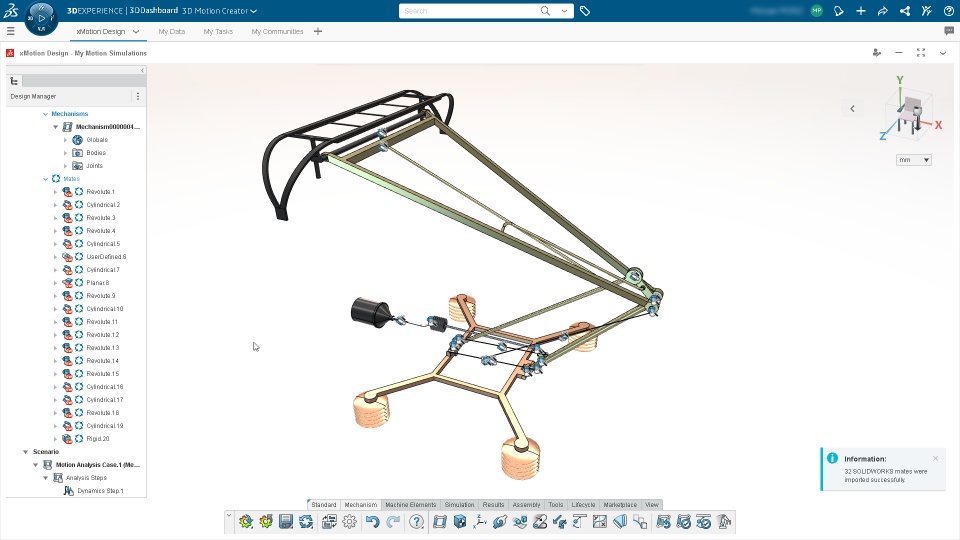

Quickly and simply import SOLIDWORKS desktop Mates and save time to set up your motion mechanism.

I

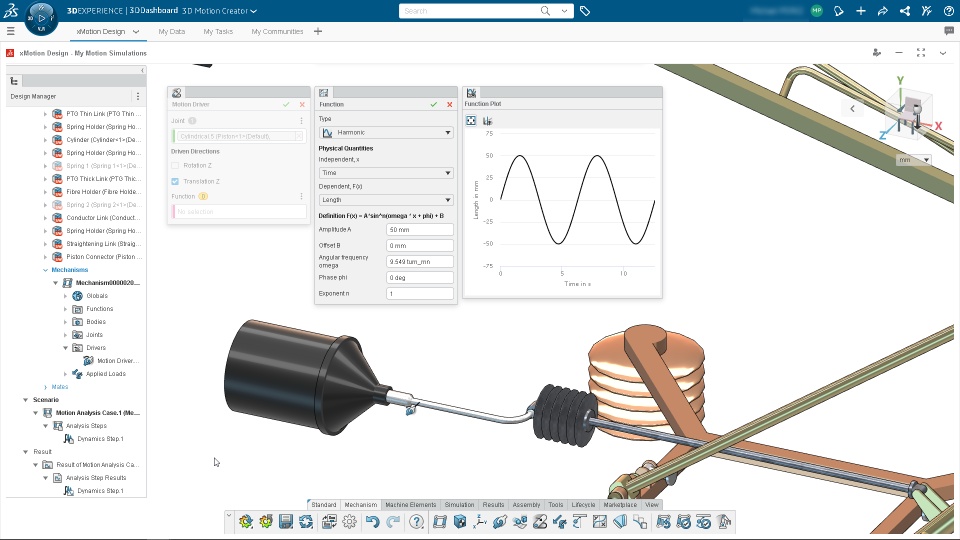

lmproved Function command with addition of "Function Plot" to better visualize defined function.

I

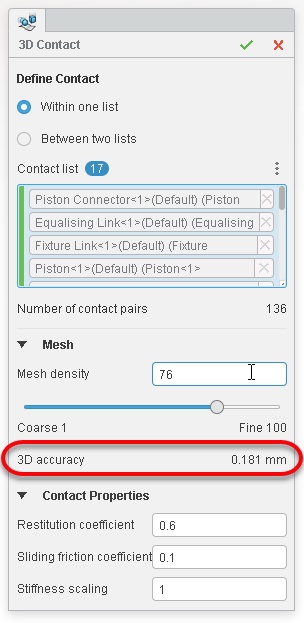

Improved 3D Contact command with addition of "3D accuracy" parameter.

I

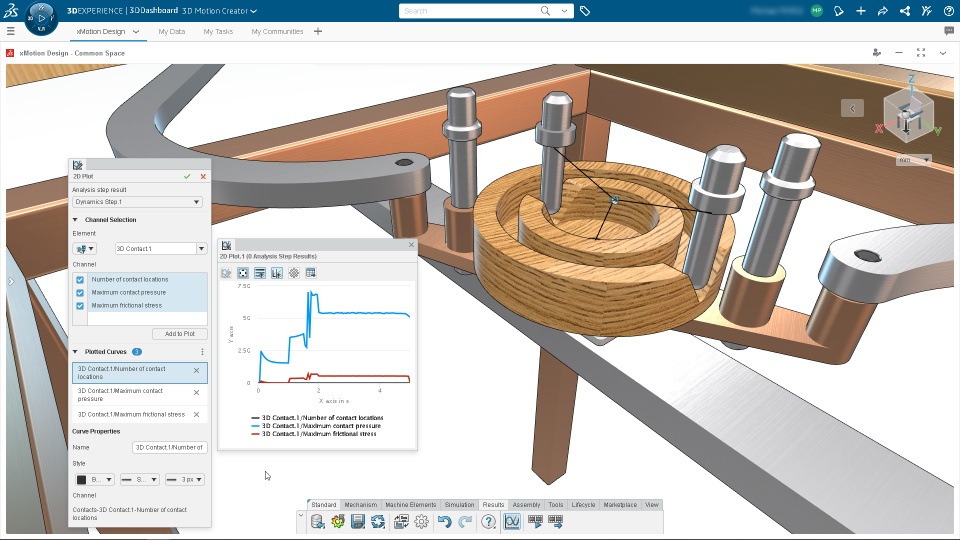

Perform faster Motion simulation with support for 3D Contact behaviors in 2D Plots.

I

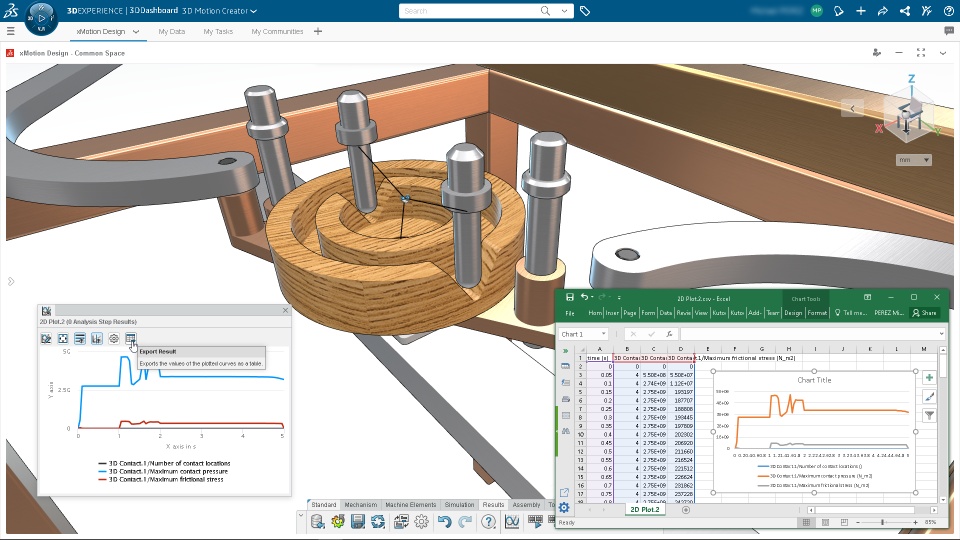

Export 2D Plots results data to *.csv file.

I

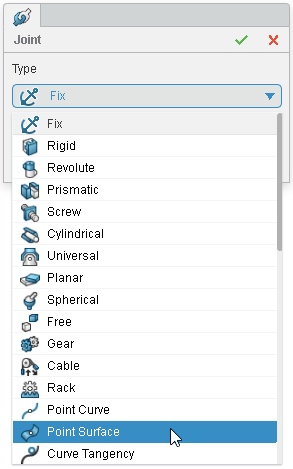

Create and simulate a Point Surface Joint.
