[SIMULIA] 3D Motion Creator

Functional Value

Easily setup system excitations using 2D sketches by defining sketched based functions.

Enable advanced post processing by export of all results of motion probes as csv.

Avoid copy/paste errors when set up function definitions for driver and/or applied load by using on x-y data imported from file.

User Experience Value

Reduce model setup errors by intuitively understanding impact of joint definition through joint direct solve and animation.

I

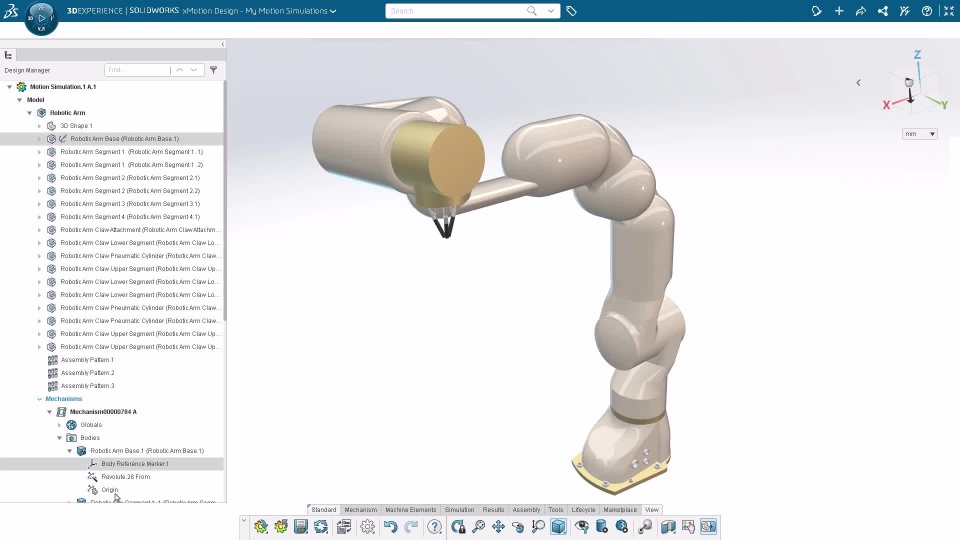

Highlights of the new features and improved user experience of 3D Motion Creator.

I

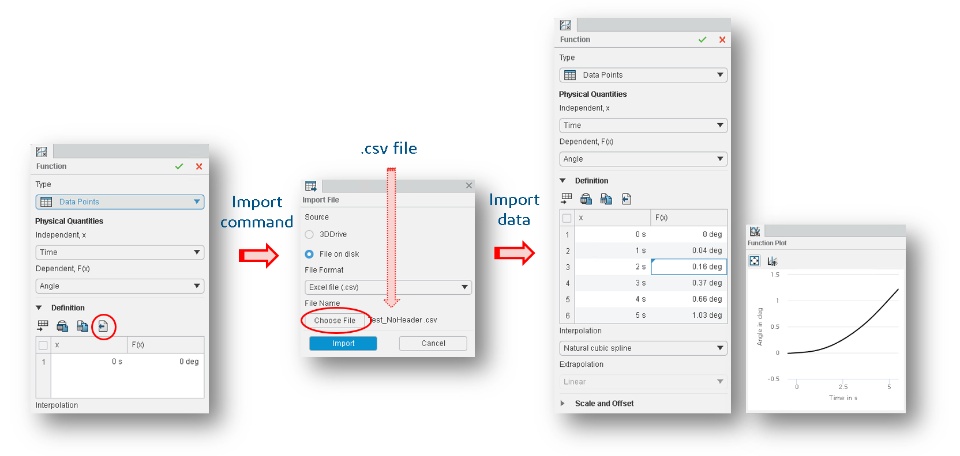

Function - Data Points - Import Data from File.

I

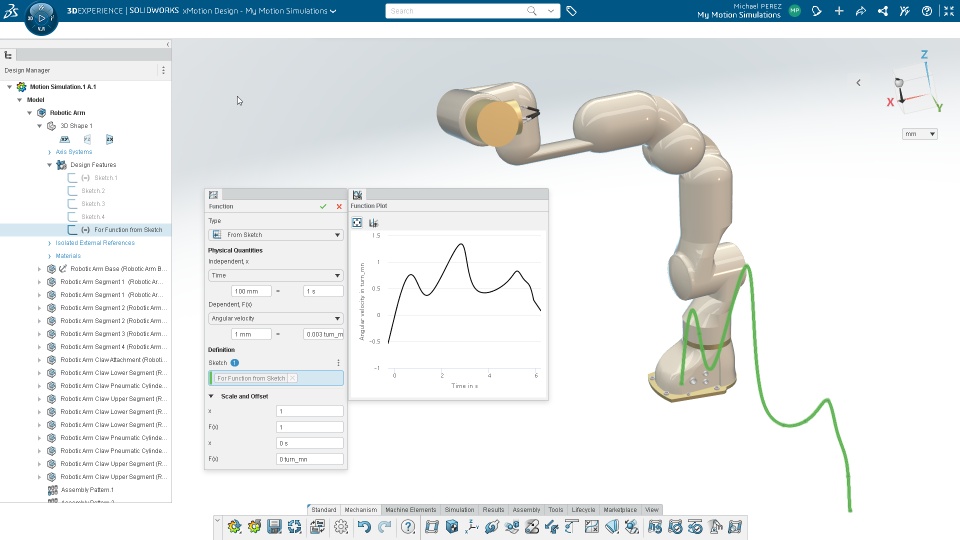

Function - From Sketch.

I

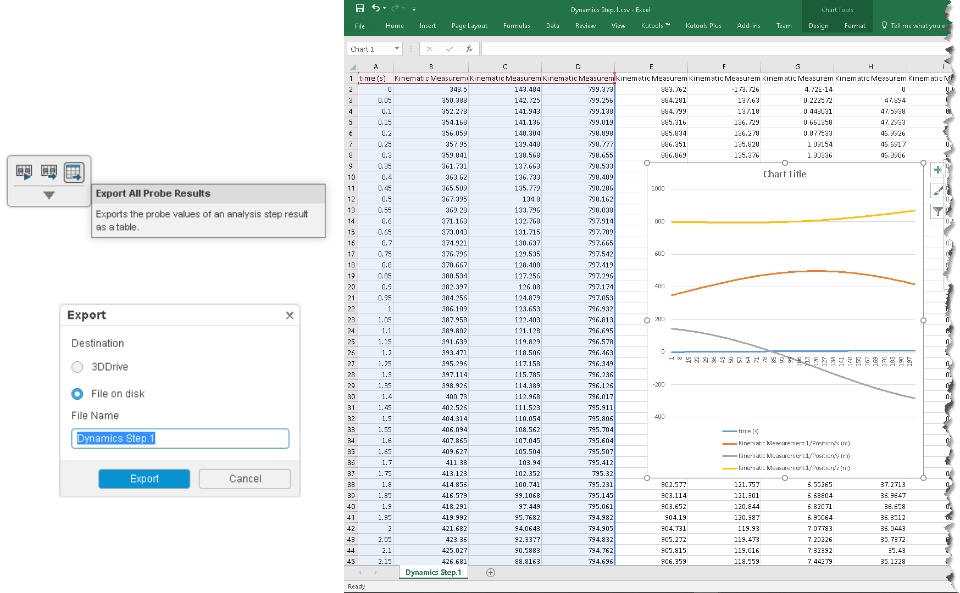

Export all Probes results data from each Analysis Step.

I

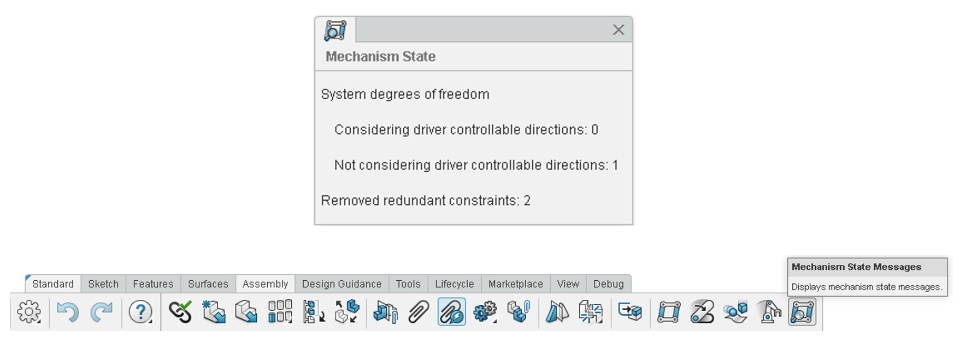

Mechanism Status.
