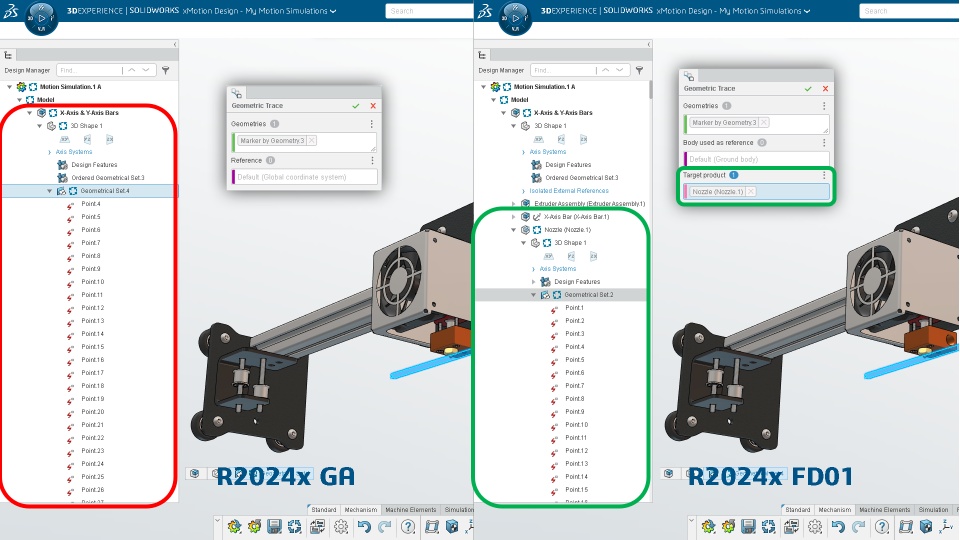

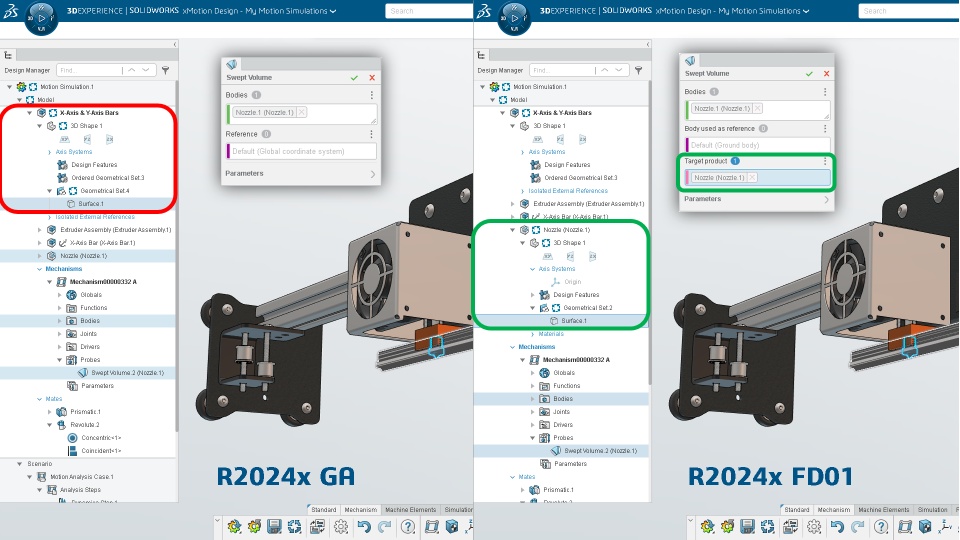

Improve design feedback process by defining target products for geometric trace and swept volume.
User Experience Value
Better understand the behavior of mechanisms with the explicit assessment of minimum distance between bodies or parts by using probes.
Increase model setup and update efficiency by using parameters and improved assembly of mechanism generation.

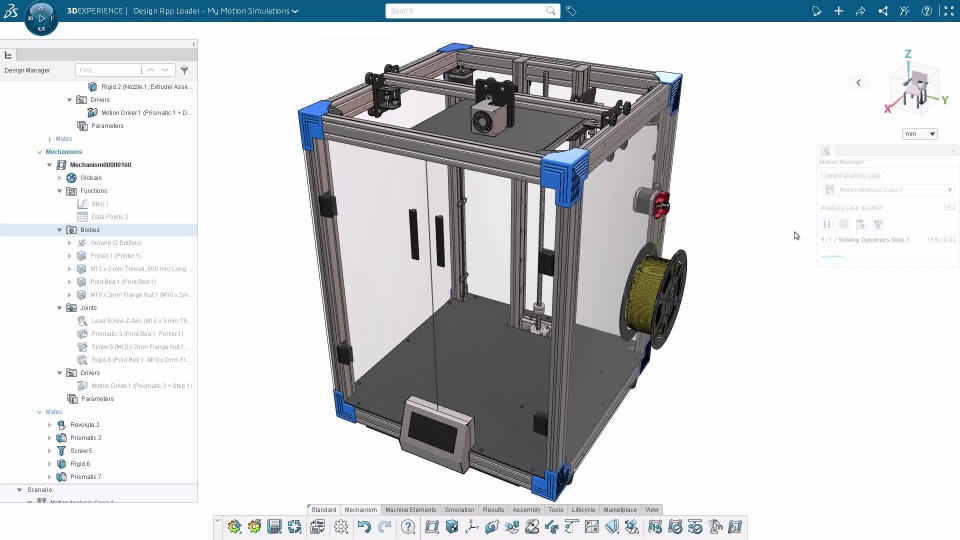

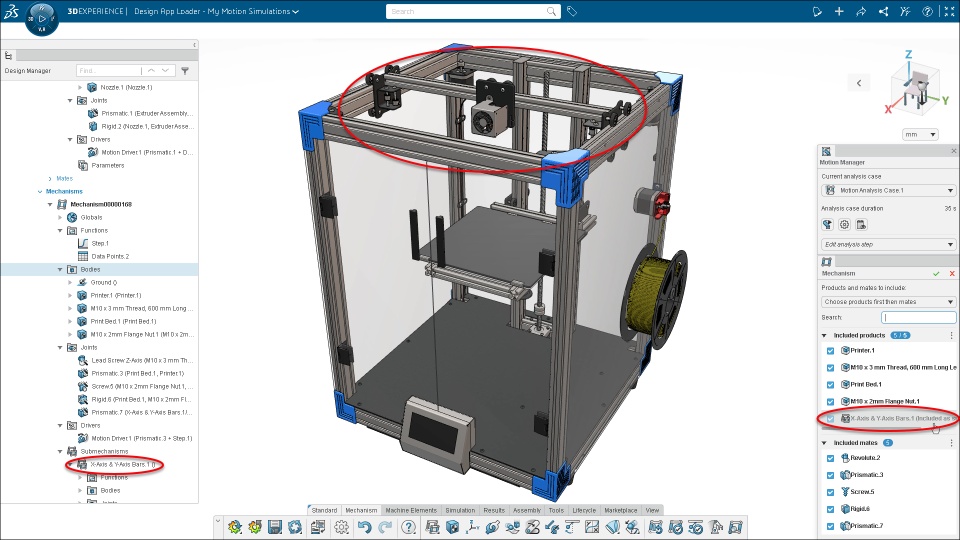

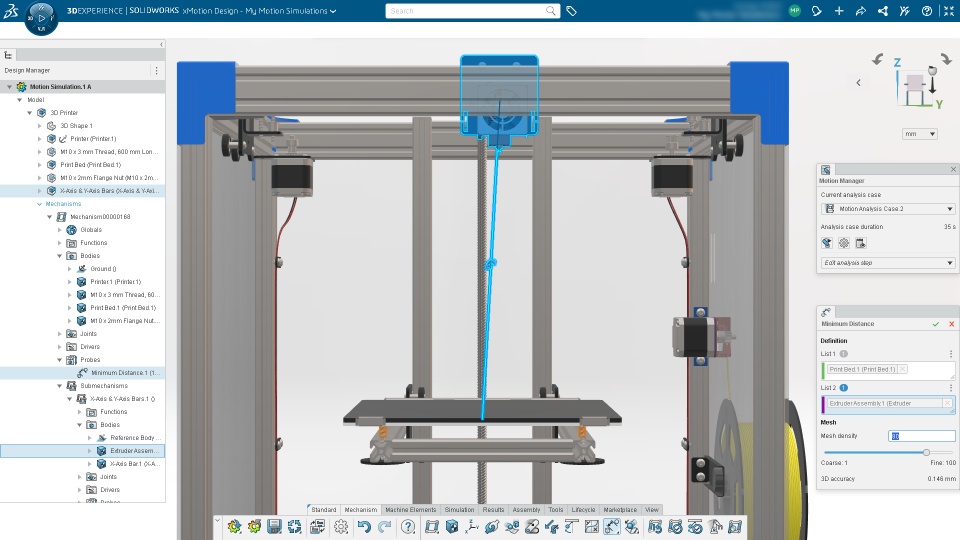

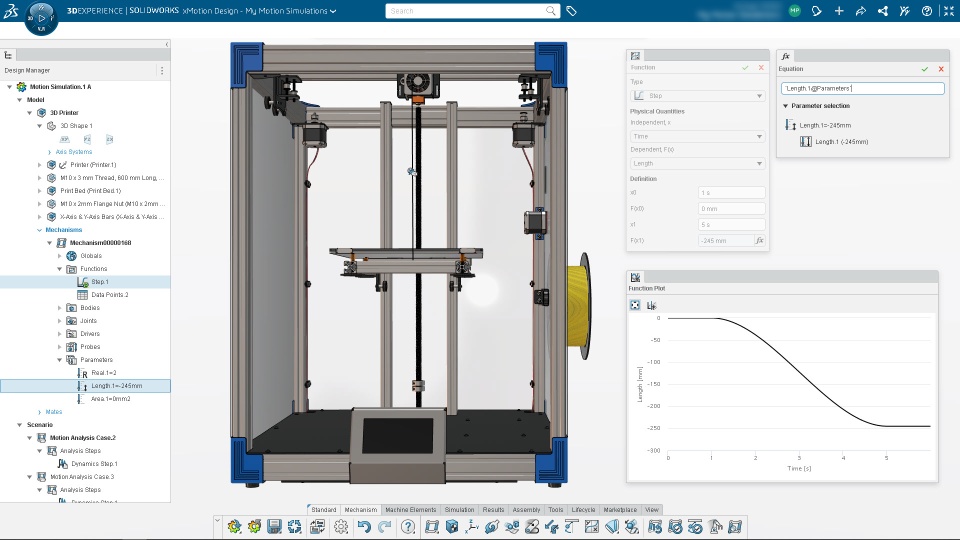

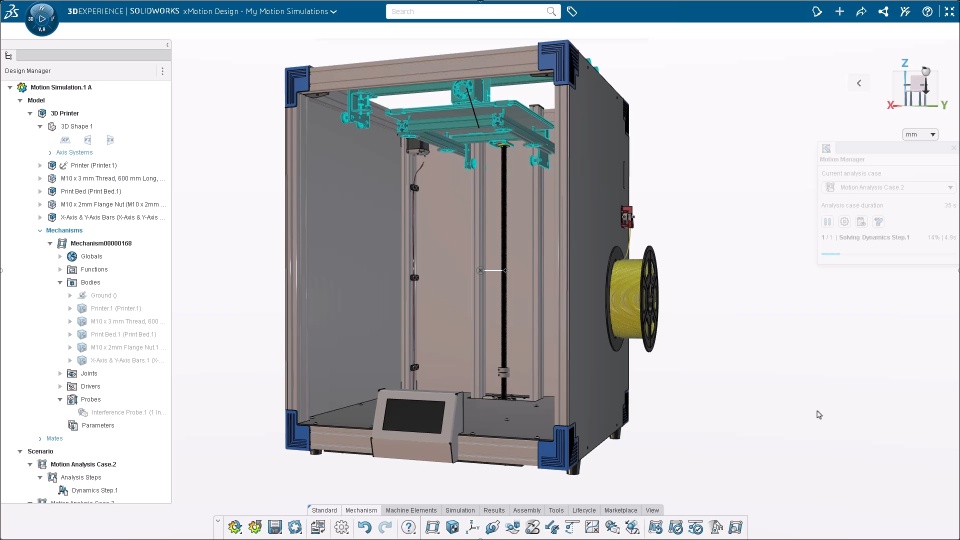

Highlights of the new features and improved user experience of 3D Motion Creator. Reduce time to set up a hierarchical motion model. Sub-assembly including mate definition will be automatically included as a submechanism. Assess and visualize minimum distance between bodies or parts in order to quickly identify potential issues during dynamic movement of your mechanism. Create Parameters and Formulas to define Motion Elements and easily access and change their values. Quickly visualize interferences between components in the mechanism and prevent design defects. Define a target product to store the geometry resulting from a Geometrical Trace probe. Define a target product to store the geometry resulting from a Swept Volume probe.
