Enhanced role: 3D Product Architect

Process functionality without leaving the app

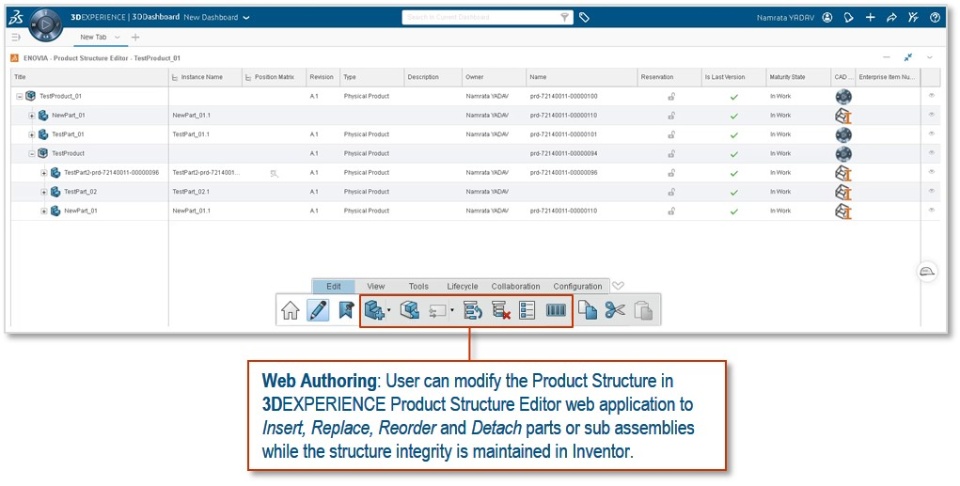

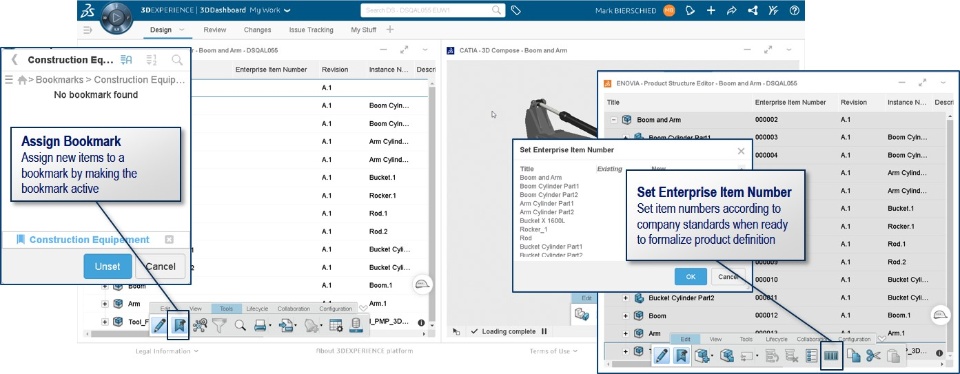

Access key functions within the ENOVIA Product Structure Editor

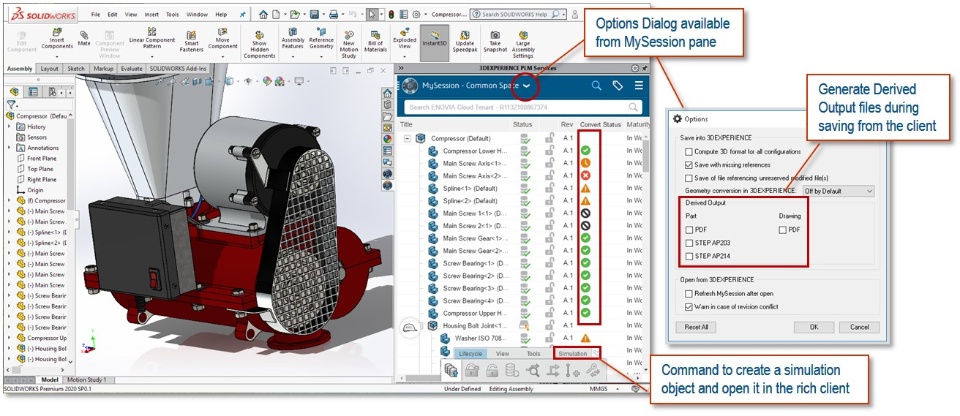

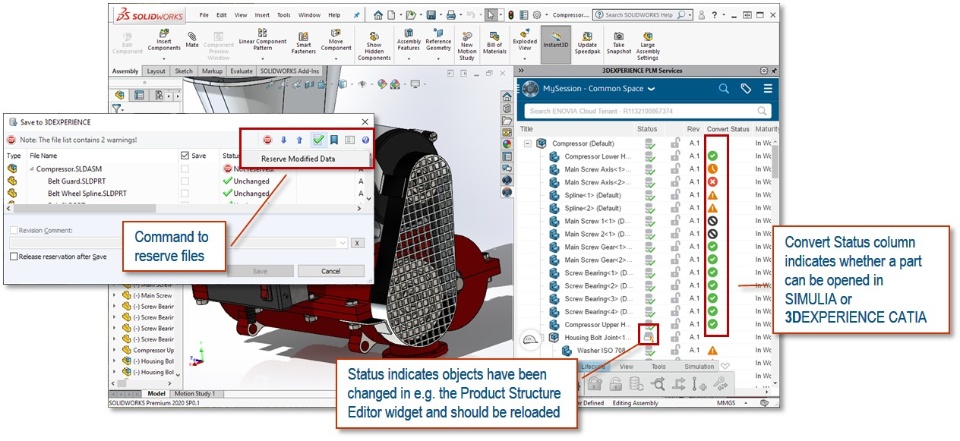

Enhanced role: Collaborative Designer for SOLIDWORKS

User Experience Enhancements

Improvements of user interface and interoperability for SOLIDWORKS users

Enhanced role: Collaborative Designer for CATIA V5

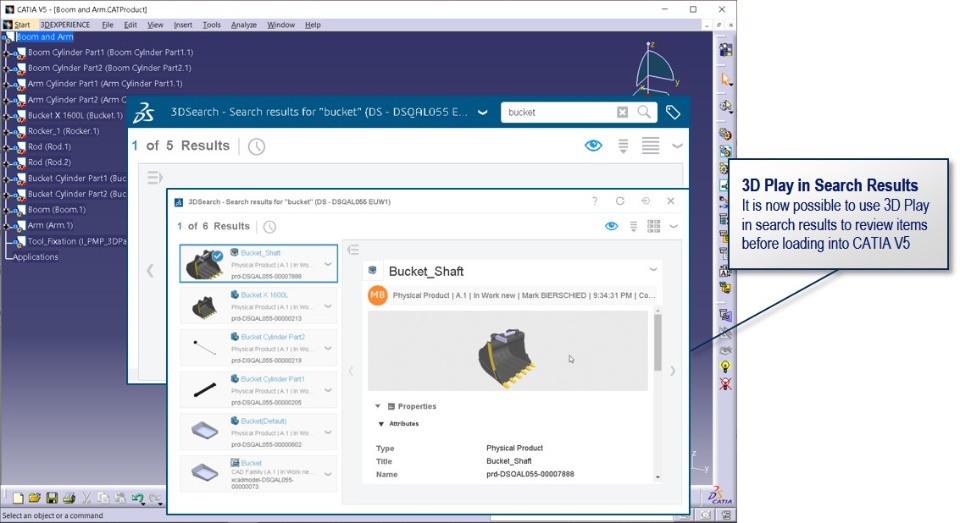

3D Play in Search Results

Use 3D Play to view design before loading into CATIA V5 session

Enhanced role: Product Release Engineer

Drawings Management

Improved productivity with management of Drawings in Engineering Definition

Reminder:

Prior to this enhancement, the attachment of Drawings in the Engineering Definition was only possible in the native client in order to bind the lifecycle of the drawing to the lifecycle of the associated Engineering Item

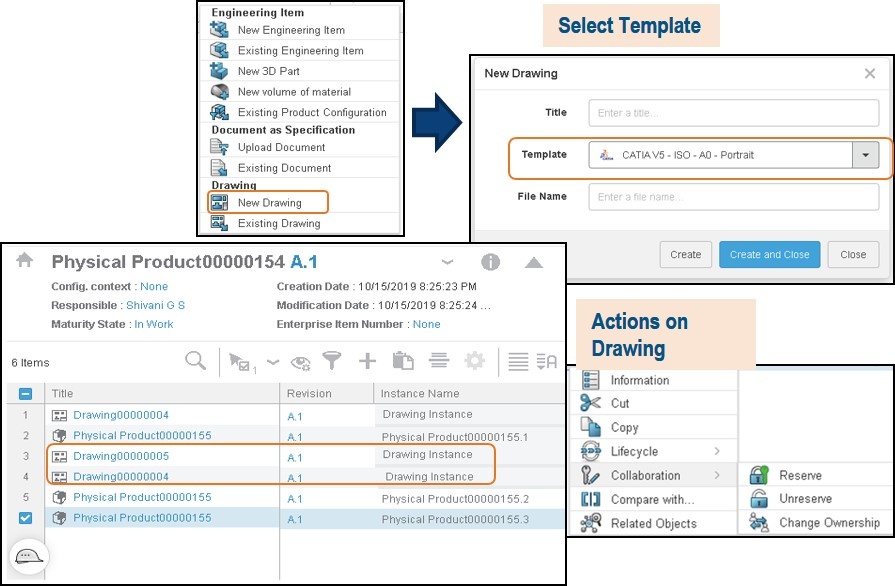

Now, attachment of existing or a new Drawing is possible in the widget

For engineering items of type “Physical Product”
Drawings can be created based on template of:
- SOLIDWORKS
- CATIA V5
- AutoCAD
- Inventor
Import/Export of engineering definition does not support drawings

Total Quantity View

Improved Quantity view to distinguish between Reference View and Instance View

New views are now available:

Usage view (instance view)
Reference view:

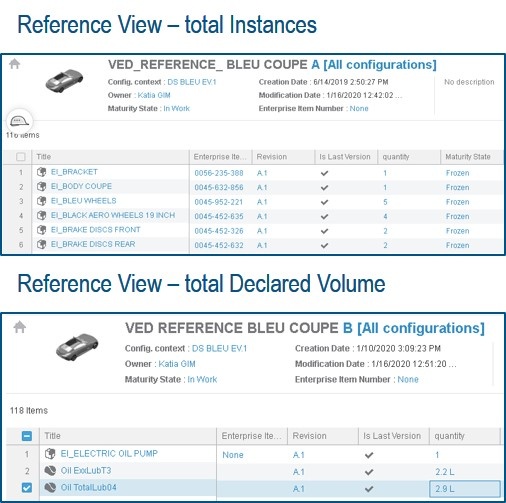

The Reference view will display the total quantity of either :

All the instances of the same discrete “Reference” and/or
All “Declared volume” of the references that have the same continuous ‘Core Material’

Clicking on “quantity” will show all instances/quantities and enable to edit them

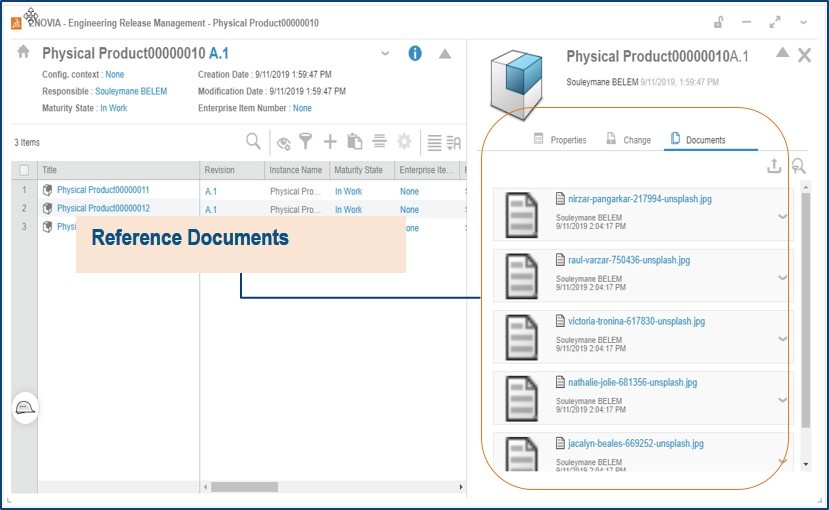

Attach documents as Reference

Enhanced attachment of documents as “Reference”

Reference documents can now be linked/unlinked to/from an engineering item regardless of the item maturity state
When the engineering item is duplicated or revised, the reference documents will be reused in the newly created engineering item
Attach/de-attach reference documents is not captured by the Work Under in the change process

Reminder:

Reference document attached to an engineering item does not directly affect its design. Examples: marketing materials, sketches and communication documents

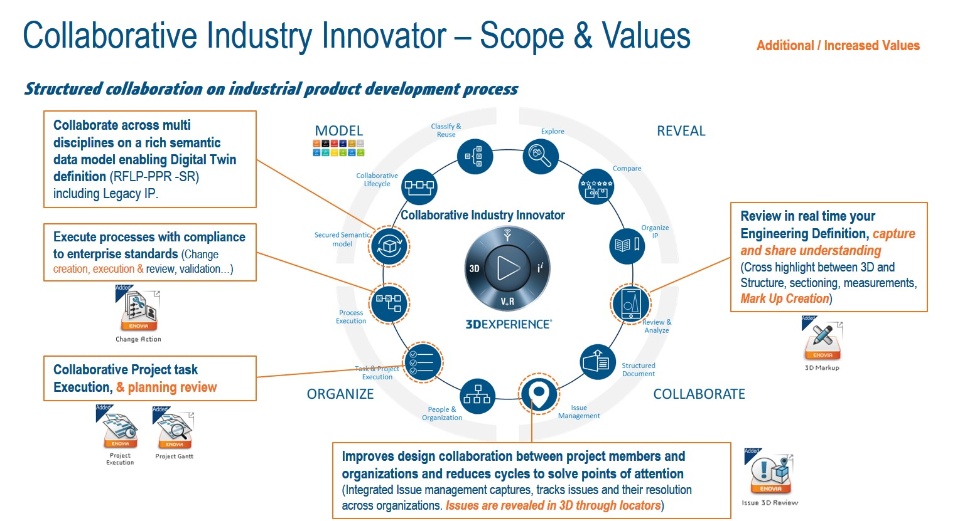

Role update: Collaborative Industry Innovator

Enhanced role: Collaborative Industry Innovator

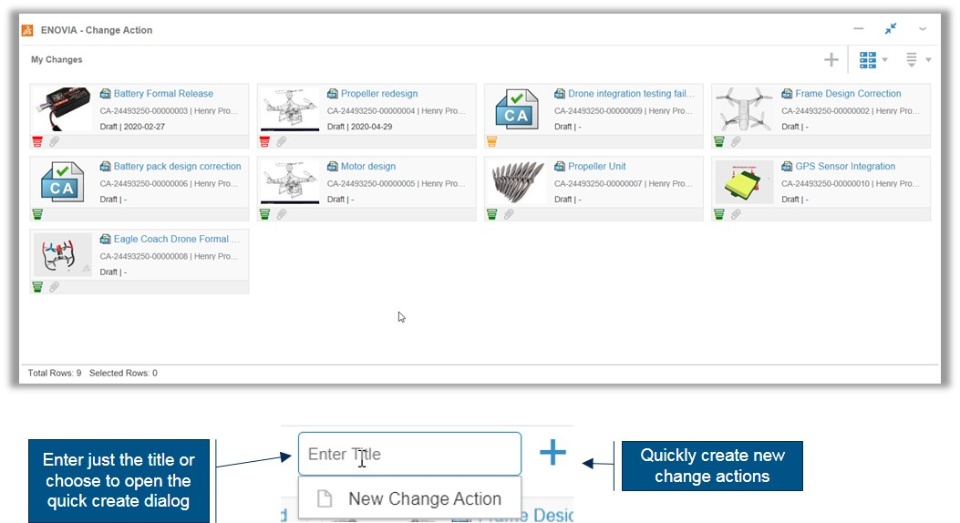

Change Management User Experience Enhancements – Change Summary Tile View

Allow users to quickly identify the change actions of interest

My Changes tile view enhancements include:

Thumbnail support can be an image or 3DMarkup document via the referential tab
Sort by Maturity or Severity
Quickly create of a change action

Change Management User Experience Enhancements – Change Summary Table View

Allow users to quickly identify the change actions of interest

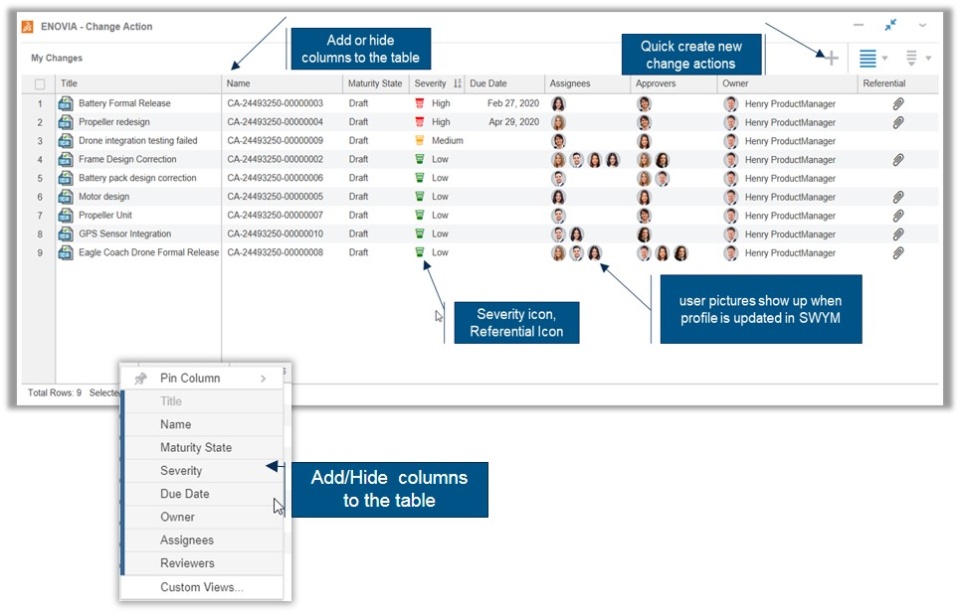

My Changes table view enhancements include:

Quick create new change actions
Participants are shown with their profile pictures
Add or hide columns on the table

Review & Interference - Generate Issues and Change Actions

Share discovered Issues and proposed Change Actions

Generate an Issue or Change Action with pre-valuated information from

A 3D Markup, leveraging its name, description, context, owner
One or several interference metrics, leveraging their name, description, interfering parts, owner

Automatically connect all objects to insure traceability

Starting 3D Markup from a selected Issue automatically creates or open a markup associated to the issue
Generating a CA automatically sets it as 'Resolved By' of the issue the markup is associated with

Generate Issue and Generate Change Action commands

In Action Bar Highlight context menu, from specification tree
Metric context menu, from Interference table

Issue and CA creation panels allow

Tuning various field values
Or immediately creating the Issue or CA

Change Management User Experience Enhancements – Team View

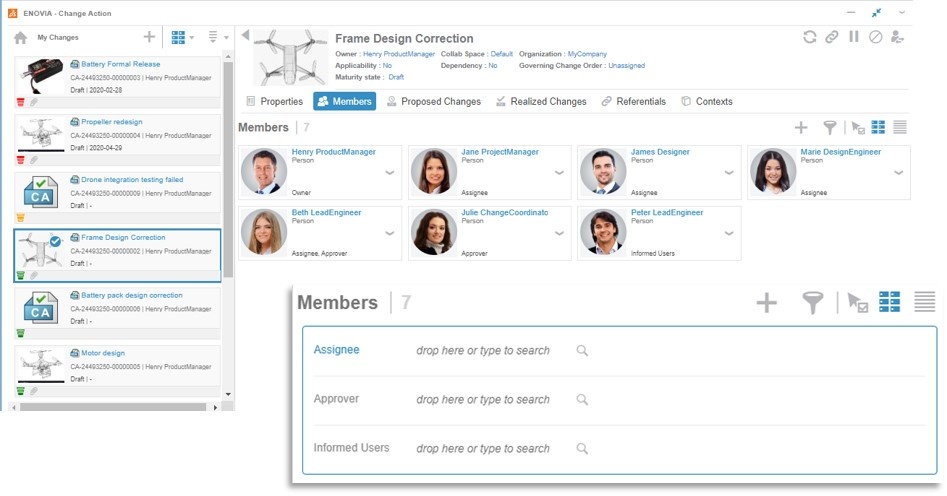

Defining change action participants

Displays profile pictures

From global search results owner can now:

Drag-n-Drop People
Drag-n-Drop Route Template

Standardize team assignment naming to align with Responsibility Matrix (RACI). Renamed:

‘Reviewers’ to Approvers
‘Followers’ to ‘Informed’

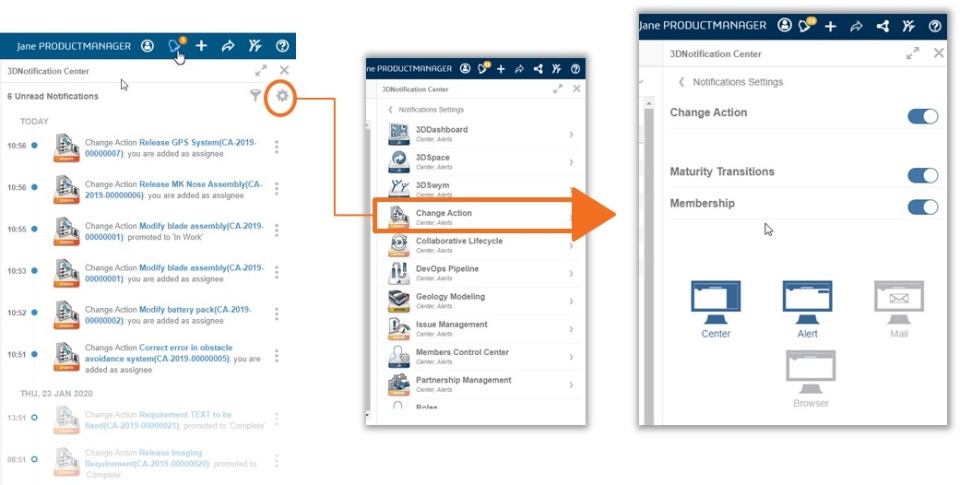

Change Management User Experience Enhancements – 3DNotification

Stay informed of change action progress, lifecycle maturity & membership changes

Change Action participants receive dashboard notifications when change action matures (is promoted) or changes in membership is done

Change Management User Experience Enhancements – Open With

Allow change participants to easily view associated data in their native tool

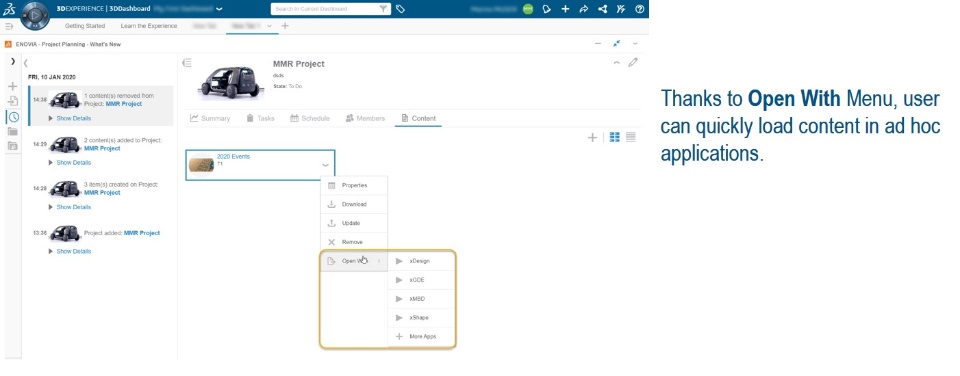

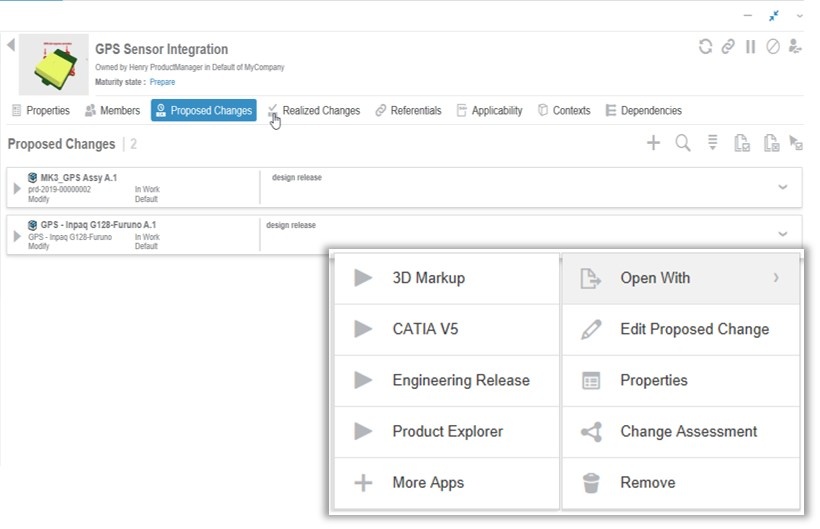

Users can now use the Open With on proposed, realized & context items

Open With works with pre-registered items, e.g., Physical Items

IP Classify & Reuse

Improved productivity on Classified content navigation

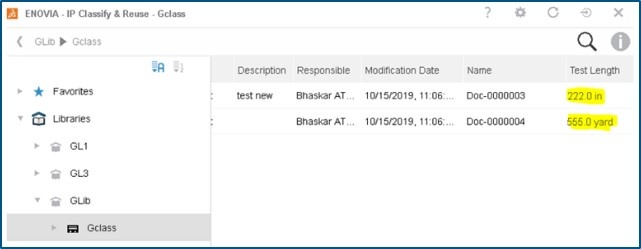

The “Unit” is now supported and displayed for dimension attributes

User can submit query in the most convenient unit. Following query are equivalent
- Trolley Length>"95 mm"
- Trolley Length>"0.95 dm"
- Trolley Length>"3.74 in"

Only essential information is displayed to the user:

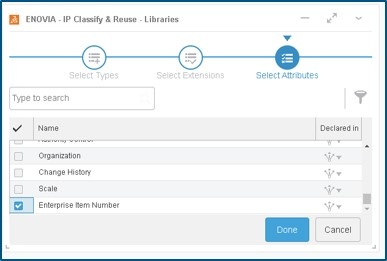

By default, non-classification attributes are not displayed in the widget which simplifies the view and facilitates the experience for the user

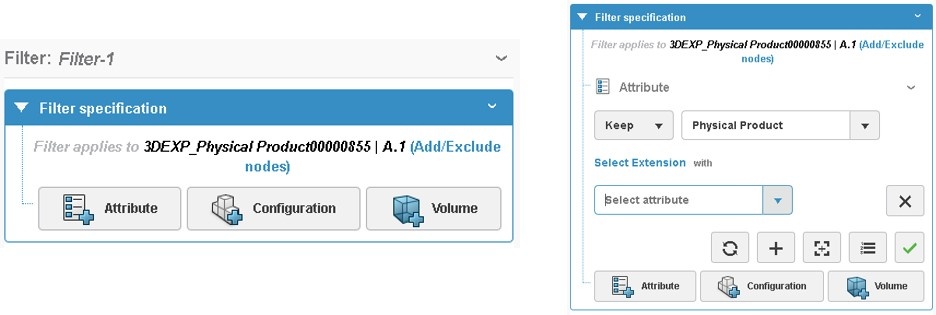

You can still expose these attributes as needed using the grid customization tool

limited to VPMReference Type/Subtypes/Extensions attributes

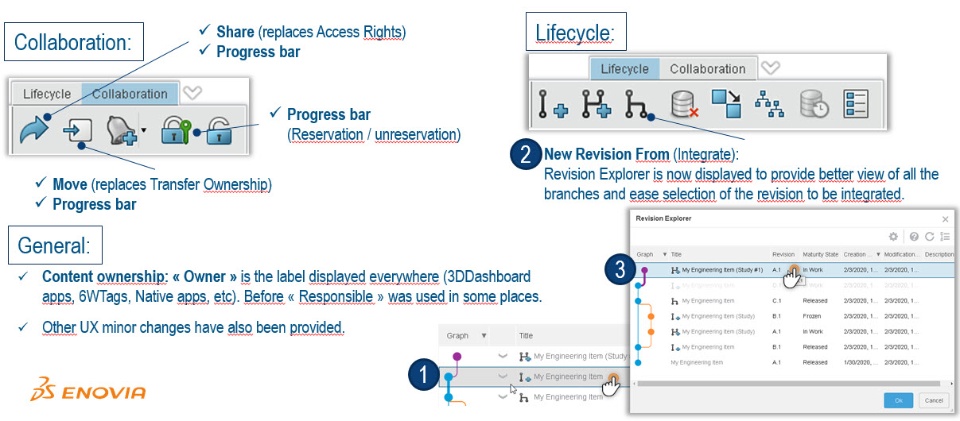

UX improvements for Collaboration and Lifecycle

Experience is now closer to user intent and provides improved user feedback

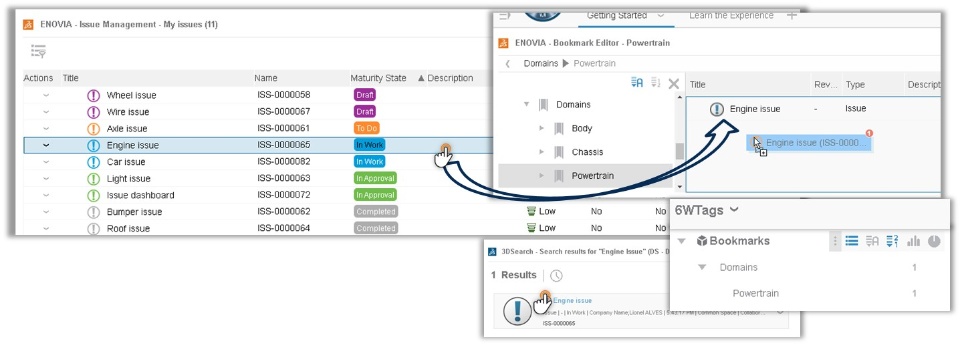

Use Bookmark to organize and filter issues

Organize issues according to both personal or enterprise classification

Users can organize their own by leveraging 3DEXPERIENCE Bookmarks
Then from 3DSearch, users can filter out issues according to their classifications using 6WTags

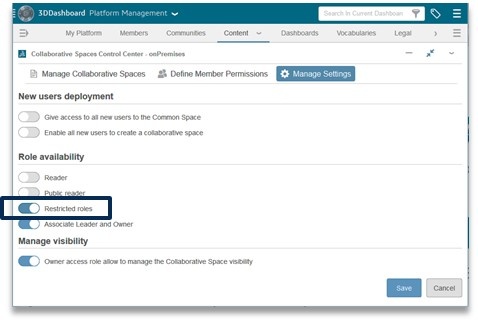

Baseline Policy Compliancy and Adoption of Restricted Access Roles

Improved control based upon the use of standardized policies

Objects added for compliancy with 3D Baseline Access rules and Indexed Security :

Workspace
Workspace Bookmarks
Workspace Template
Template Workspace Bookmarks
Message
Meeting
Private Message
Decision

Objects with Restricted Roles added without other Baseline Modifications :

Thread
Image Holder
Job
Country

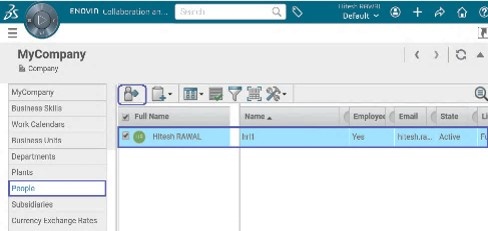

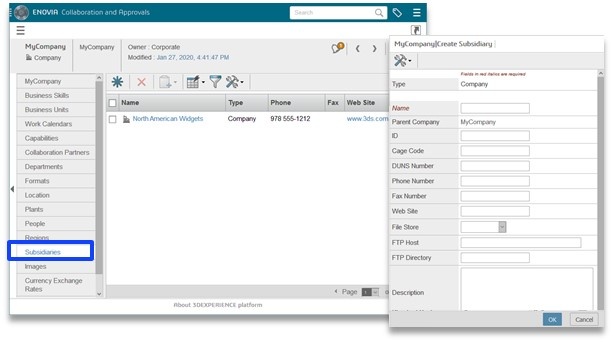

Enabling Subsidiaries on Cloud

Improved control based upon the use of standardized policies

Subsidiaries are enabled for both creation and management on the Cloud environment for the Desktop and Touch devices.

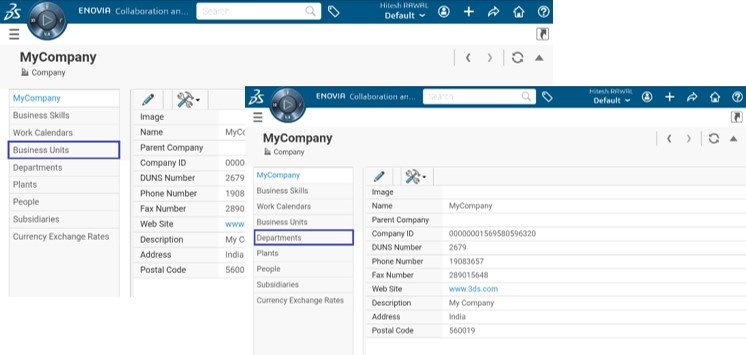

Business Units and Departments are enabled on the Cloud and for Touch devices.

The Move Person command is enabled on Touch devices.

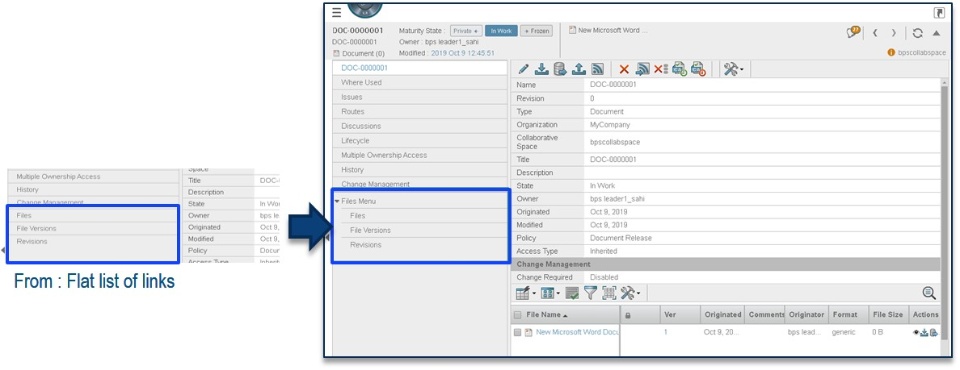

Menu Configuration for Categories

Improved user experience for navigating menus

Menus displaying Categories may now be organized and nested in the User Interface. Hyperlinks to screens may be transformed from a flat list to an expandable Sub Menu containing a group of links.

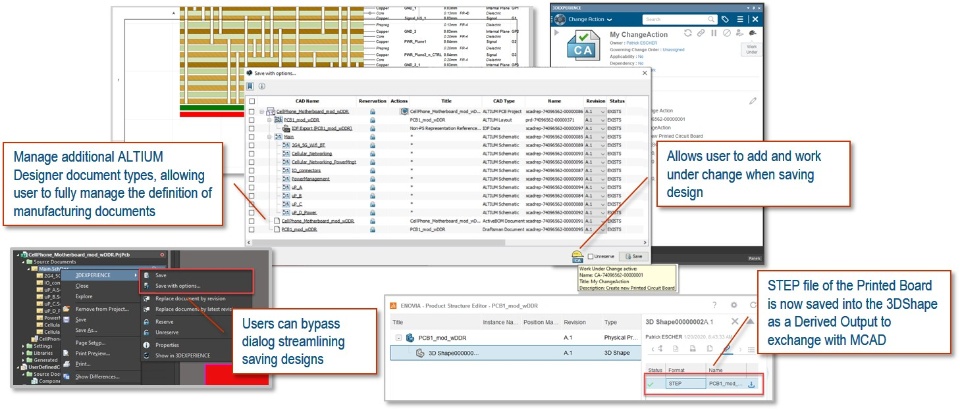

Enhanced role: PLM Collaboration Services for Altium Designer

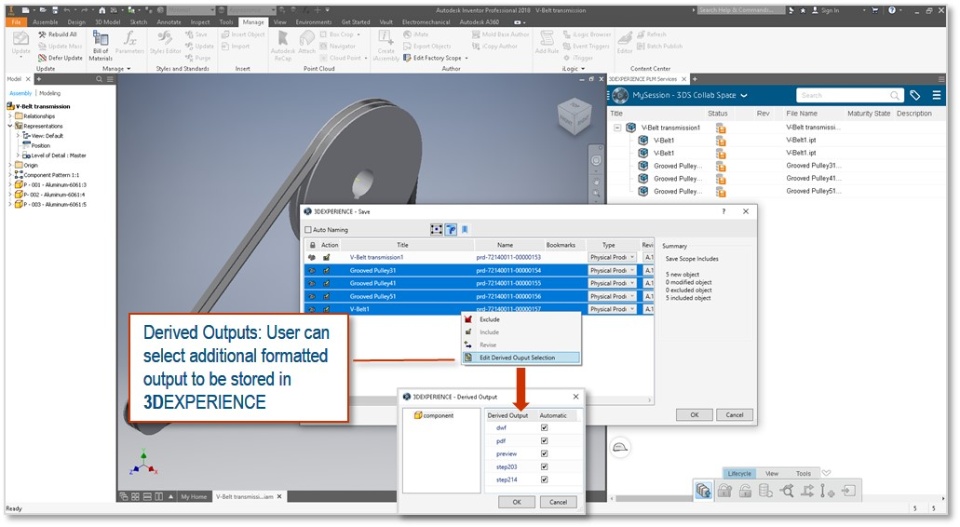

User Experience Enhancements

Improving and streamlining user experience for the Altium Designer user

Enhanced role: PLM Collaboration Services for AutoCAD

User Experience Enhancements

Improving and streamlining user experience for the AutoCAD user

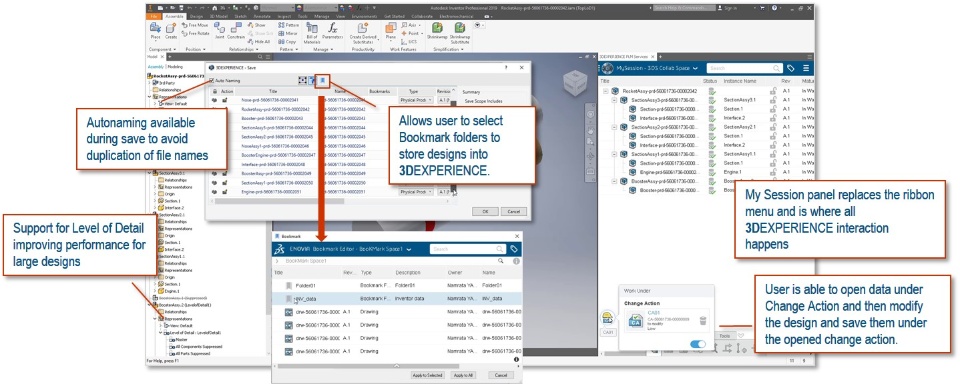

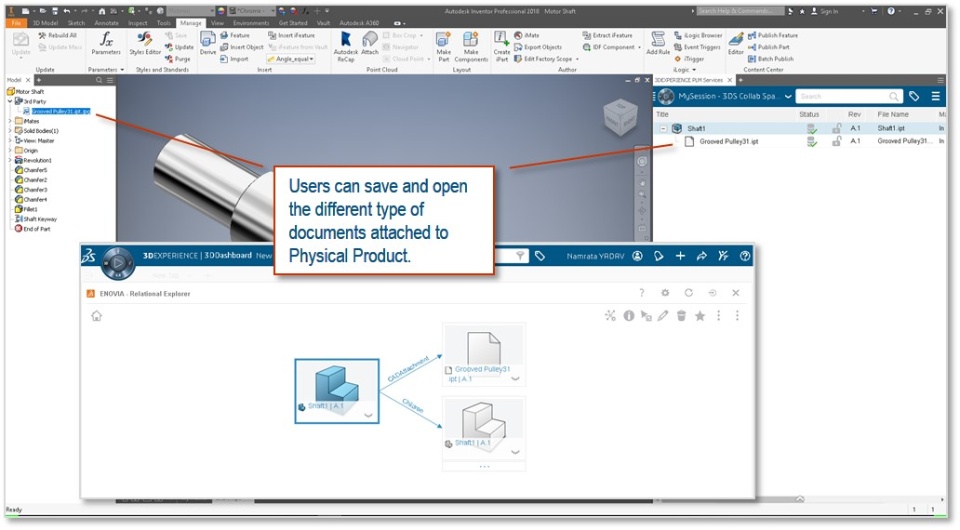

Enhanced role: PLM Collaboration Services for Inventor

User Experience Enhancements

Improving and streamlining user experience for the Inventor user

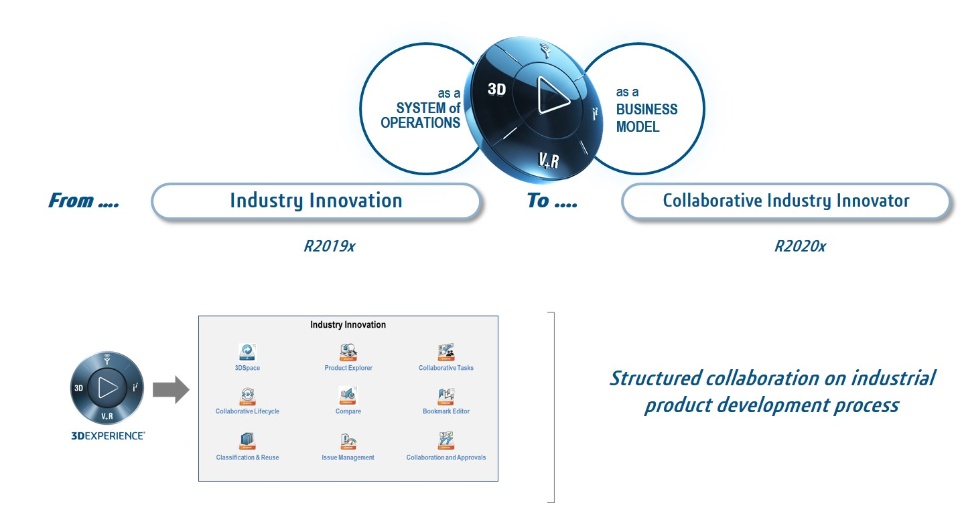

Enhanced roles: Collaborative Industry Innovator; 3D Product Architect

Review & Interference - 3D Markup available in Collaborative Industry Innovator

Provide markup functions to industry innovators

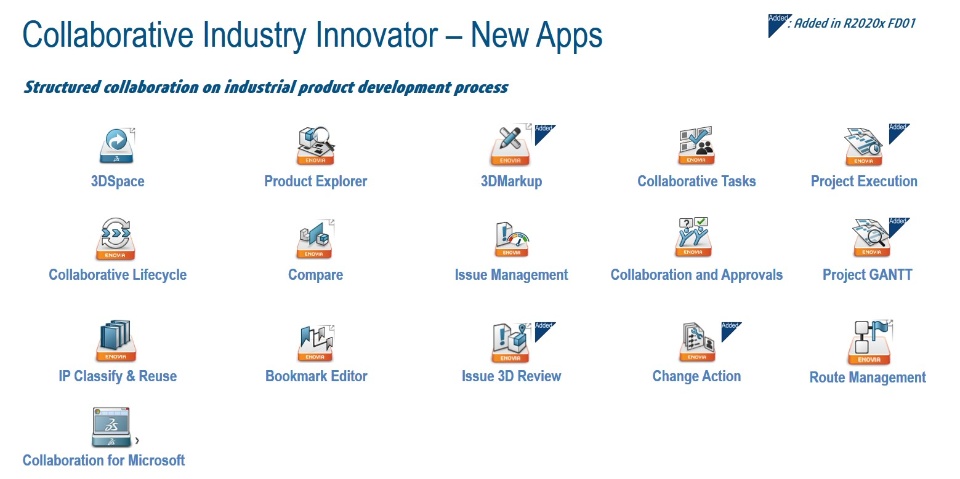

3D Markup web app is now available in Collaborative Industry Innovator role
‘3D Markup Engineer’ (DRU) role is removed

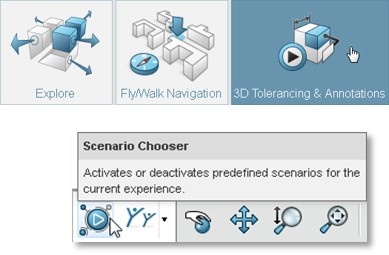

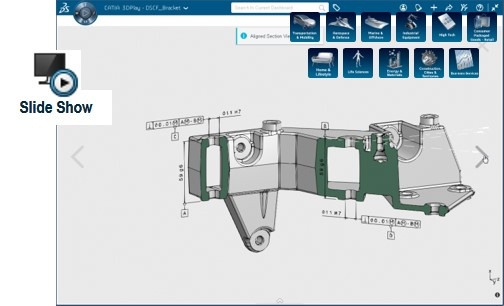

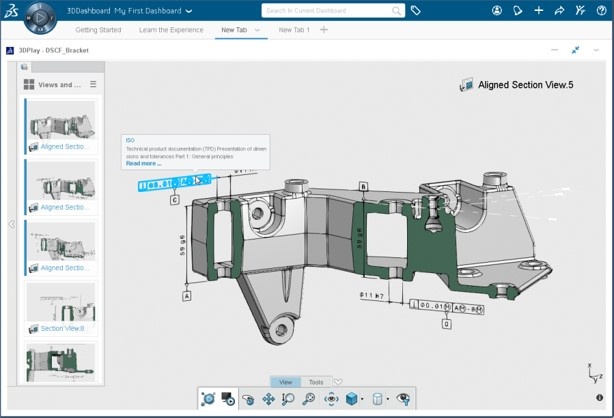

3D Markup is enhanced to provide a continuous experience from 3DPlay

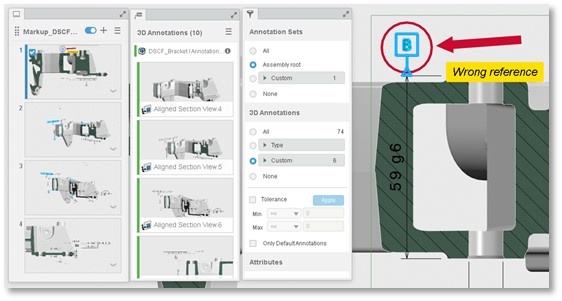

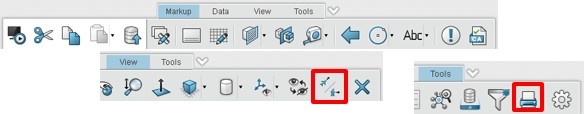

- FTA Annotations display and filtering are added
- Print and Fly/Walk Navigation commands are added

3D Annotation Experience web app is removed
- Its scope is now covered in 3D Markup web app (does not require a markup to be created)
3D Compose1 web app is enhanced to provide a continuous experience
- Transitions between apps allows keeping FTA display, section and measures
- Markup can directly capture FTA , section and measures after such transitions
