[ENOVIA] Collaborative Designer for Cadence Allegro HDL and Cadence OrCAD

Functional Value

When the MCAD representation equivalent of the ECAD component is replaced, and modified, the corresponding STEP derived output can be used by the ECAD application to update the component within the ECAD application providing digital continuity between domains.

Save "Layout" vs. Project, Schematic and Layout, only from Allegro to 3DEXPERIENCE saving time for those engineers that would only work on "layouts".

I

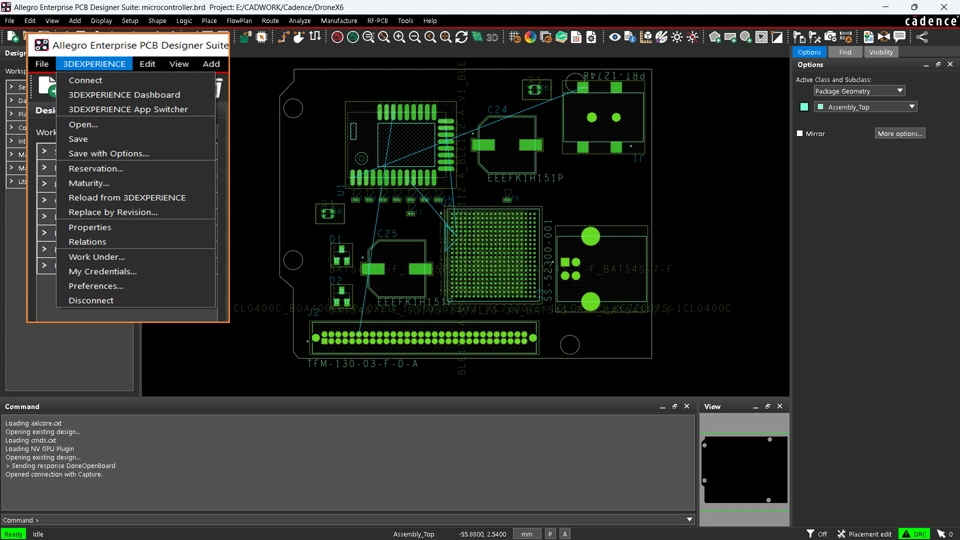

Save layout from Allegro PCB Editor to 3DEXPERIENCE

I

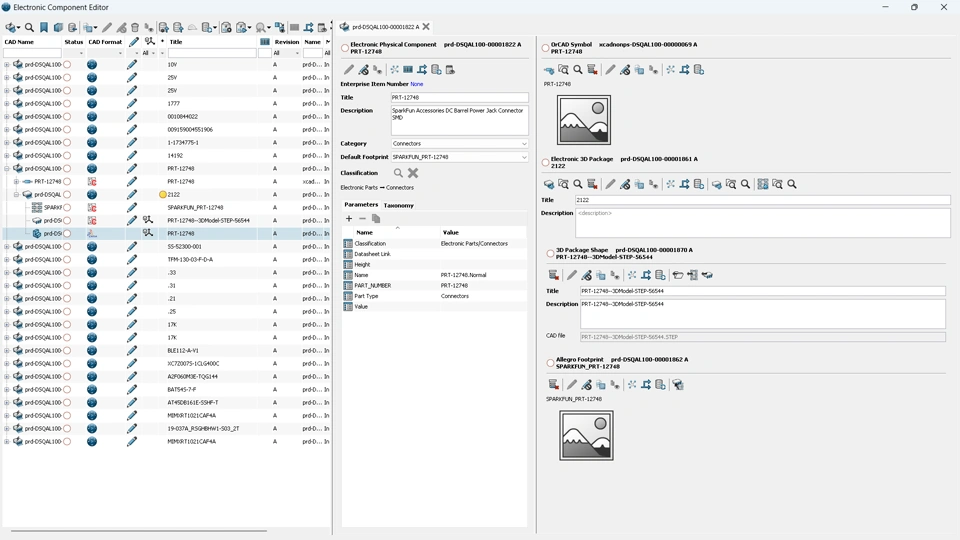

Support for MCAD representation in ECAD 3D Package

I

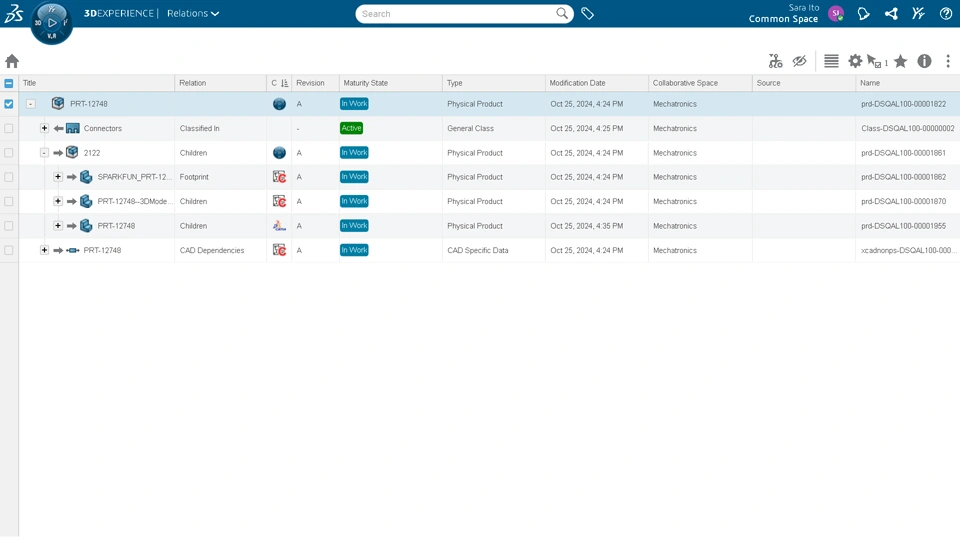

Support for MCAD representation in ECAD 3D Package shown through the Relational Explorer
