[DELMIA] Work Instructions Author

AB

Functional Value

Enriched published content for configured process & 3D work instructions by supporting display of FTAs (Functional Tolerances & Annotations) associated with Requirements

Improved display capabilities for smart pictogram labels with various graphical properties management such as label color / lines types, color & size / fonts types, color & size.

User Experience Value

Skip the repeated iterations between main view and associated views, by directly resizing the frame of the associated views during its definition.



Improved Smart Pictogram management with graphical properties customization

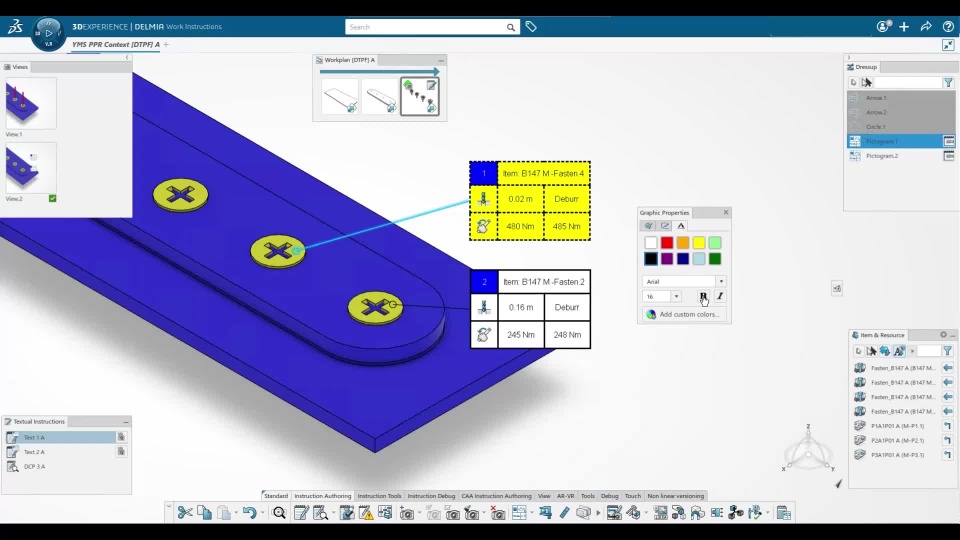

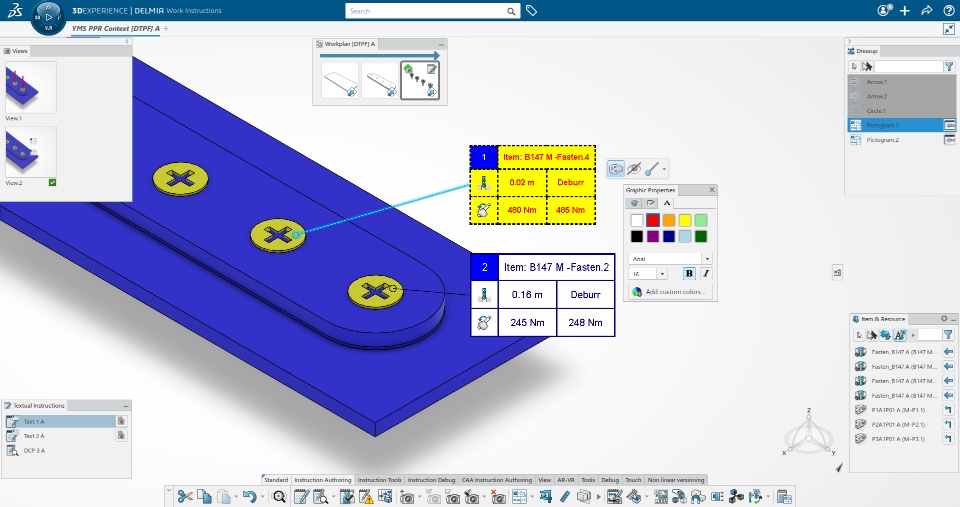

As for "standard" labels, the user can directly edit the graphical properties of each "Smart Picto" label

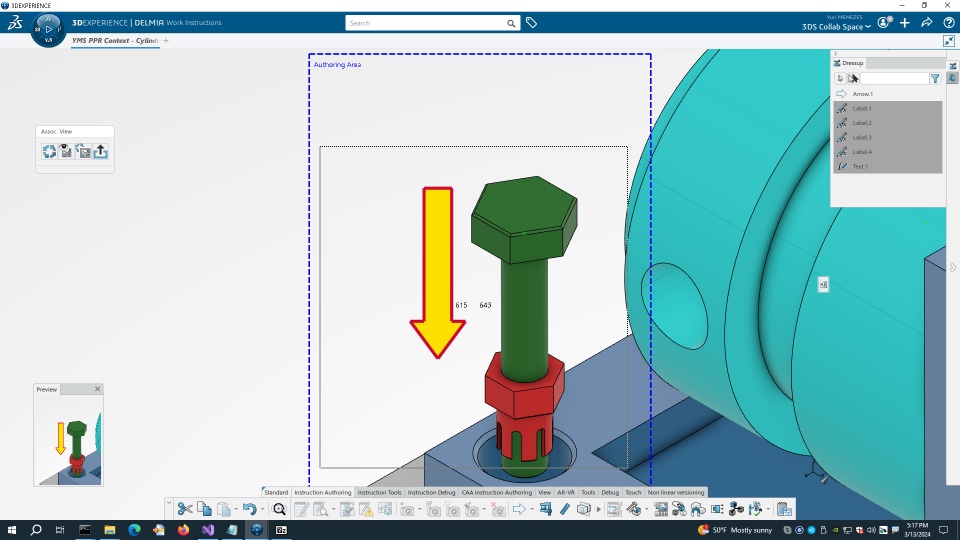

To avoid back and forth iterations for associated view definition, the user can now directly resize the frame

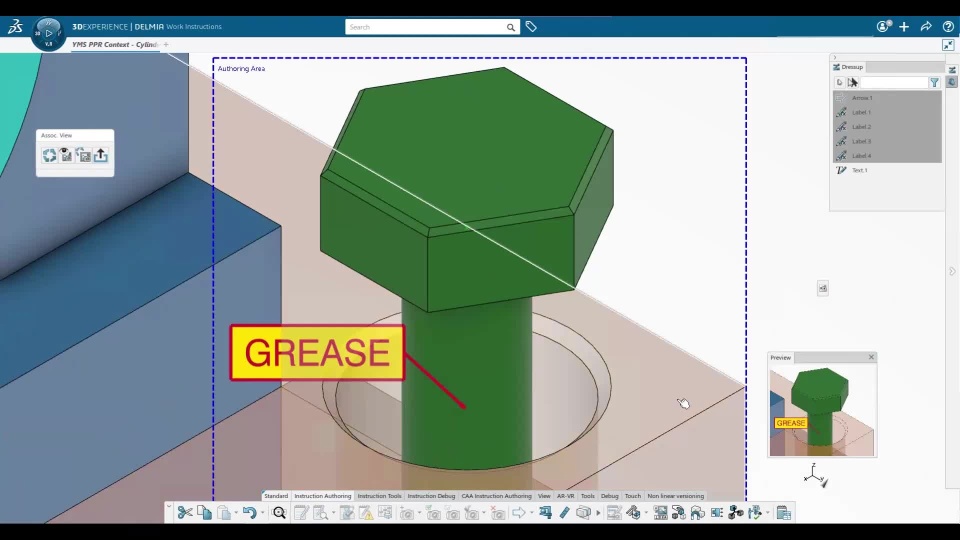

A preview panel displays how the associated view will look like in the main view
