[DELMIA] Work Instructions Author

Functional Value

Ease the Work Instructions views update process by allowing to link a view point to a specific item and so automating the view point update when the position of the item is modified

Ensure generated pictures content consistency when publishing Work Instructions as document by displaying the picture resolution frame

Ensure views content consistency by providing some preview capability for associative view pictures

I
Facilitate the Work Instructions views update process by linking a view point to a specific item thus automating the view point update when the position of this item is modified

I

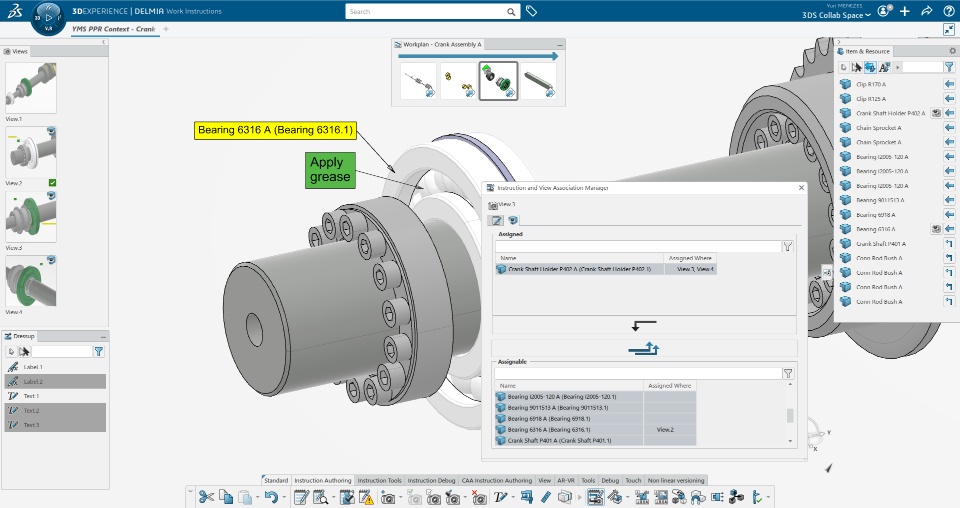

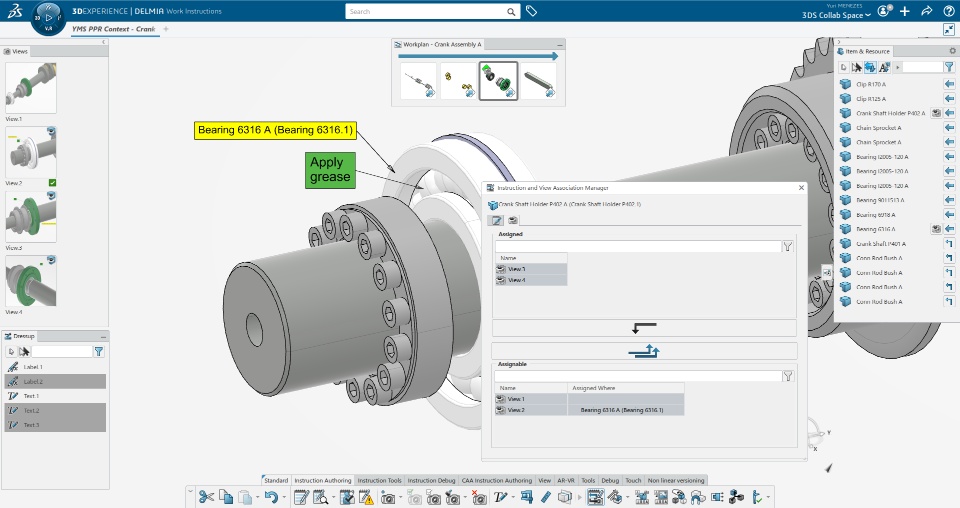

The existing command “Instructions Assignment” connects a viewpoint to a selected manufacturing item (from “current” or “previous” build up category)

I

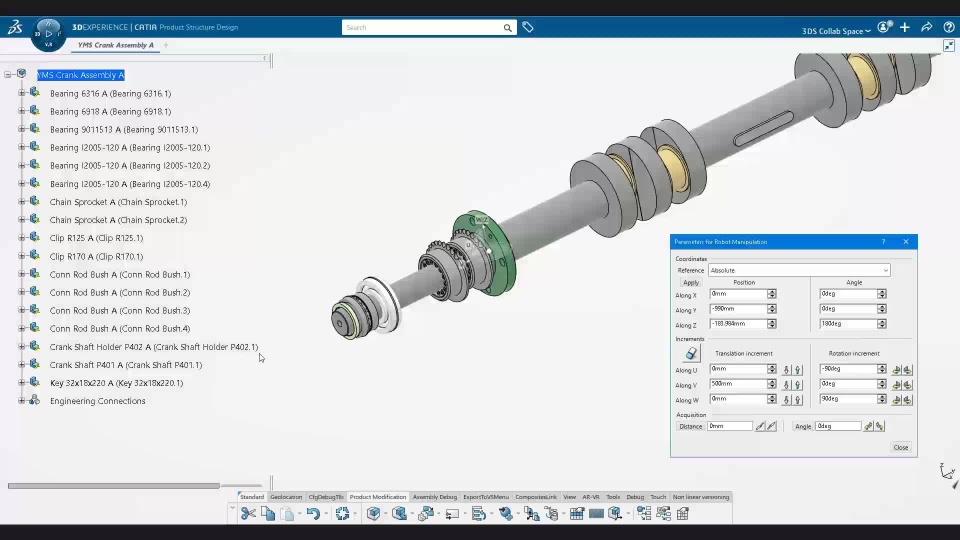

If the design position of the associated item changes, the viewpoint will remain focused on the new location of the item

I

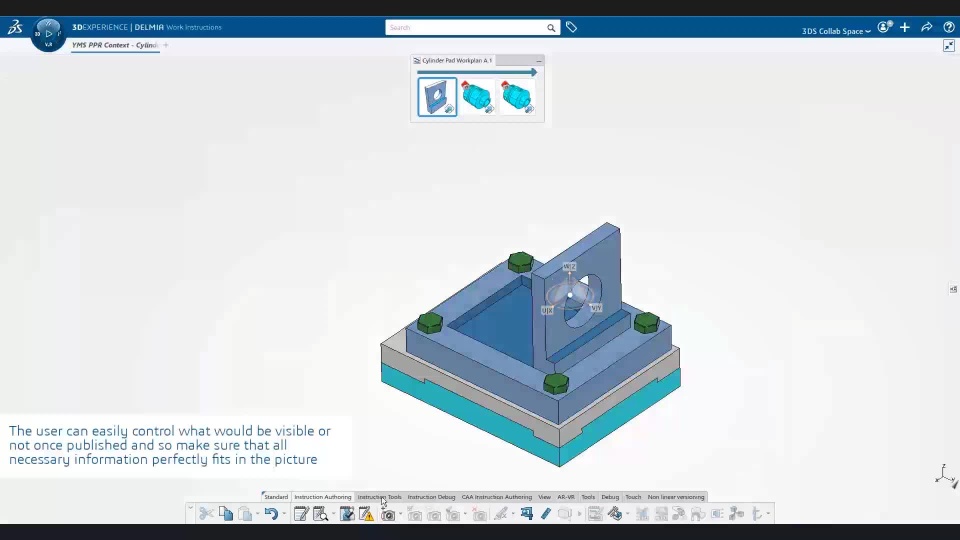

Facilitate overall 2D Views content consistency between authoring and published pictures by providing some resolution frame display and preview of associated views during authoring

I

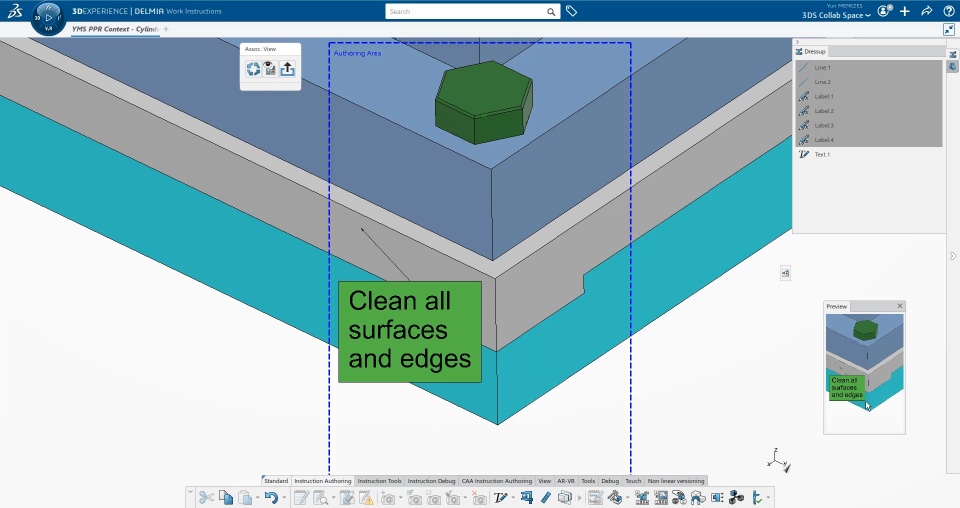

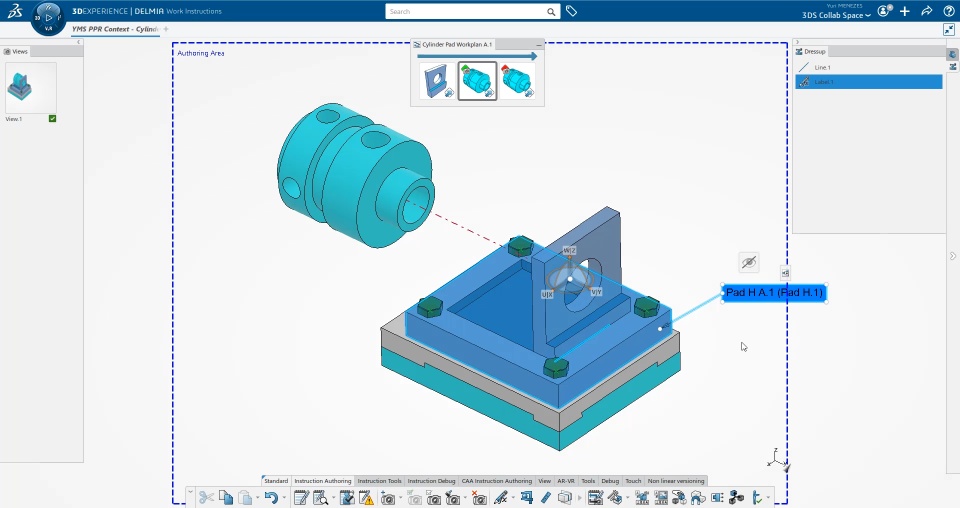

Ensure generated pictures content consistency when publishing Work Instructions as document by displaying the picture resolution frame

I
Ensure views content consistency by providing some preview capability for associative view pictures
