[DELMIA] Structure Fabrication Engineer for Marine

AB

Functional Value

- Eliminate the need for post-processing of production deliverables

---by automating the edge preparation computation for joints between profiles, or between plates and profiles, taking into account profile’s orientation and web and flange parameters

---by suppressing the creation of non-value added individual attachment/alignment line features, by taking into account the assembly sequence

---by computing the roll line angle and adding the information on deliverables

- Shorten production time for manufacturing deliverables with project-depending, realistically parameterized and automatic shrinkage compensation. This prevents the cutting of unnecessary margins, eliminating material waste and excess process time.

- Profile template computation now takes into account rolled profiles and stiffeners on free edge (SFE)

I

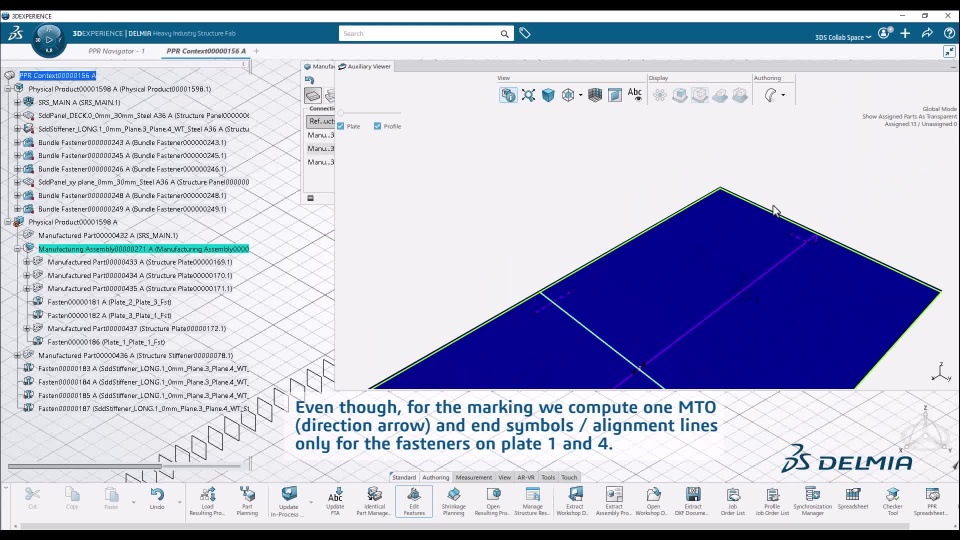

Combined attachment line support for assemblies (video)

I

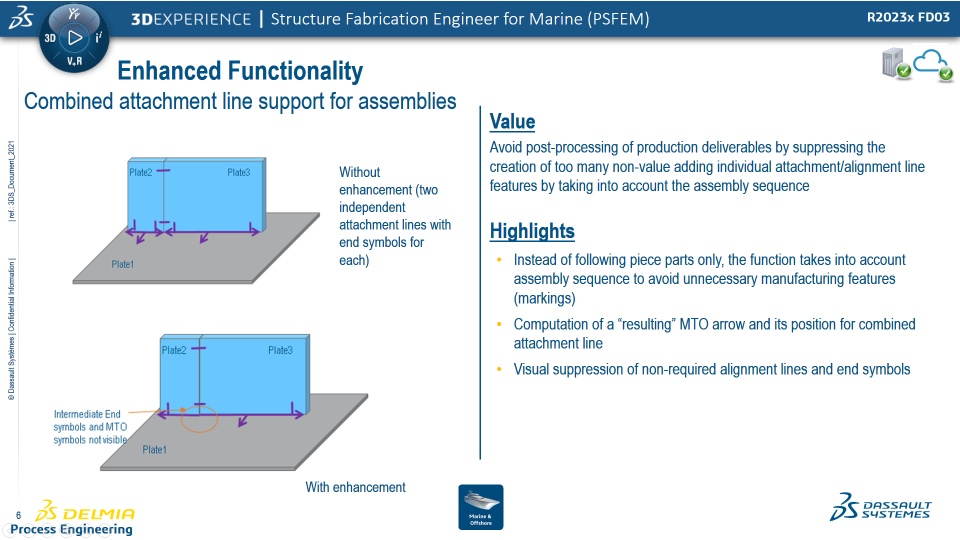

Combined attachment line support for assemblies (illustration)

I

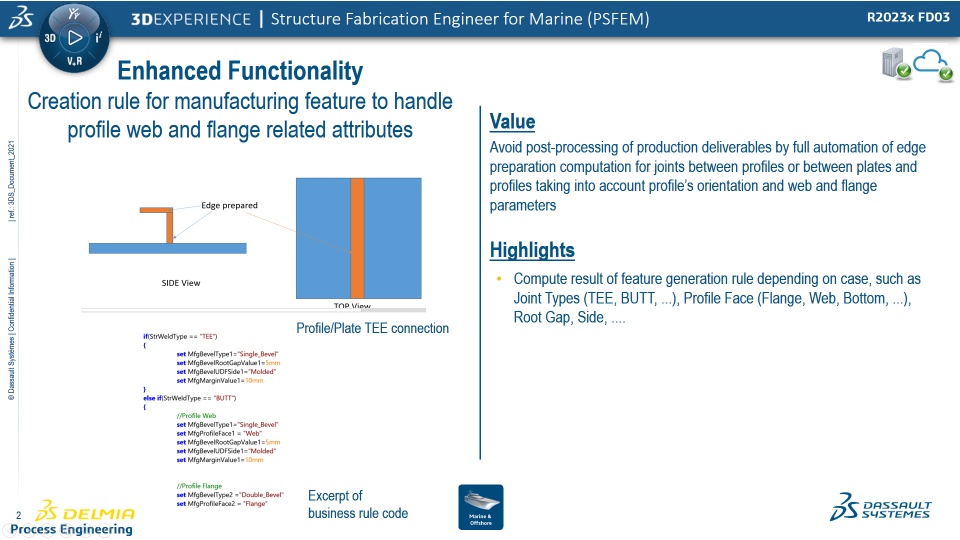

Creation rule for manufacturing feature to handle profile web and flange related attributes

I

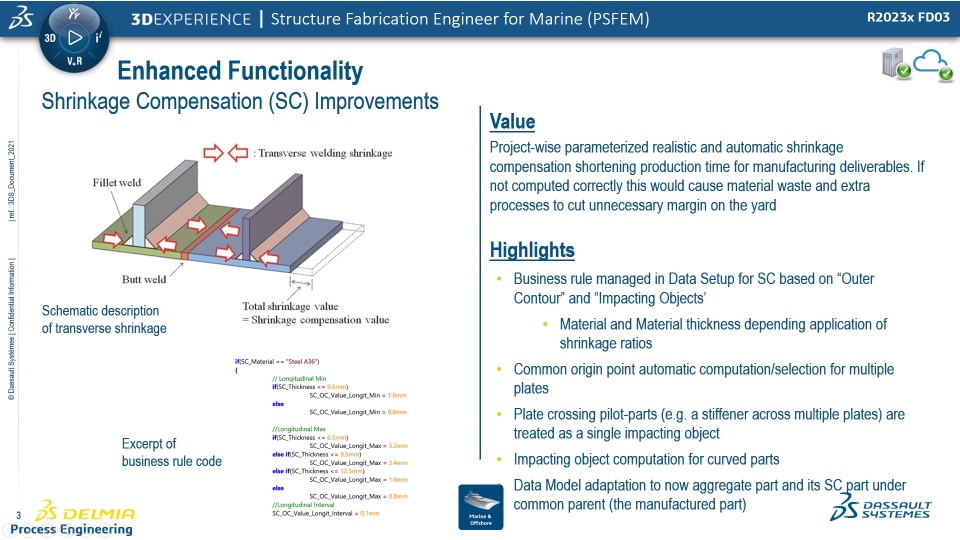

Shrinkage Compensation (SC) Improvements

I

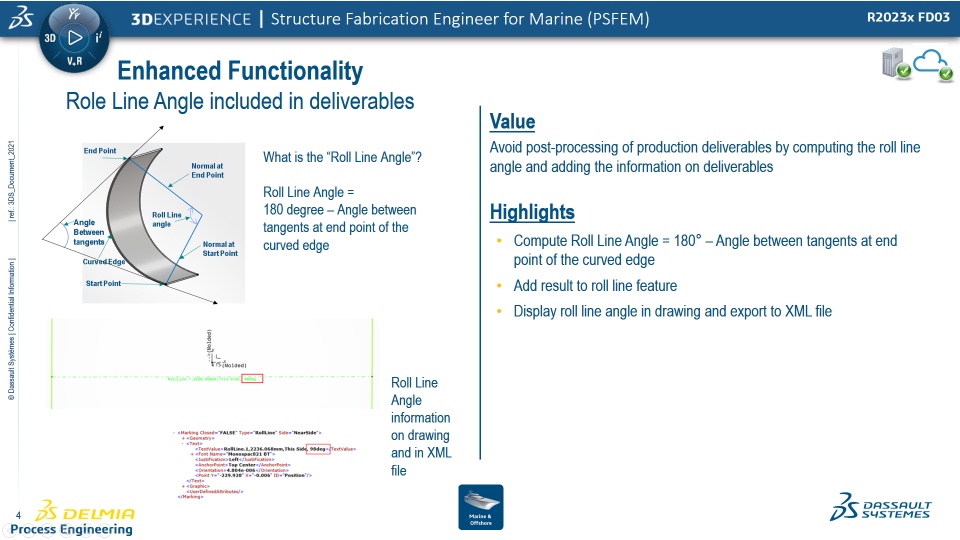

Roll Line Angle included in deliverables

I

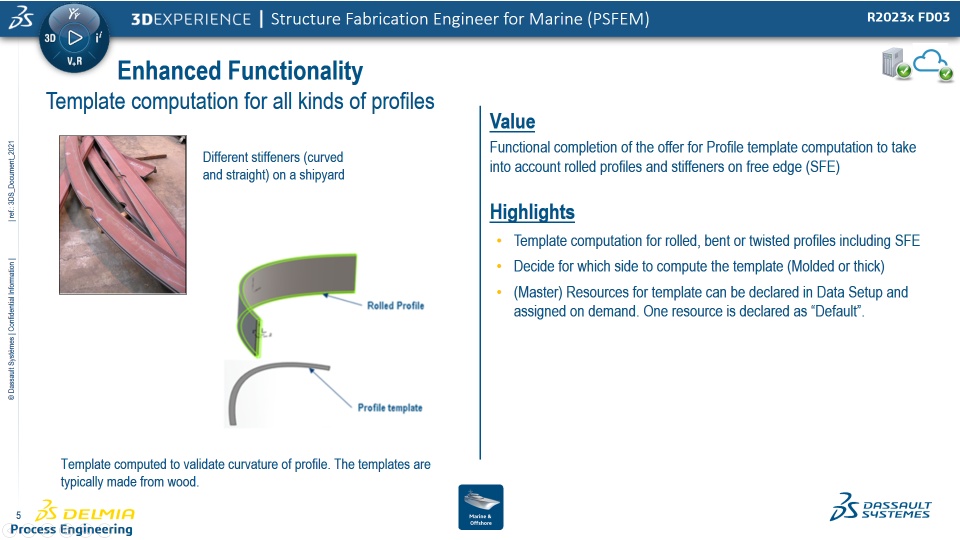

Template computation for all kinds of profiles
