[CATIA] Transportation Designer

Functional Value

In Creative Design Experience:

1.Save time and improve the quality of your shape with the vertices alignment command.

2.Take benefit of higher precision and better effectiveness during your exploration and creative shape sculpting workflow, with a new Modifier for Symmetry/Asymmetry

3.Reach greater accuracy and work faster with the new snapping feature during primitive creation : focus on design while avoiding tedious manual adjustments to increase your productivity

4.Improve the precision of your design with enhanced Detail Modeling feature

In ICEM Design Experience, combine and improve Performance & Agility of the class-A process leveraging completely the soft parametric technology to give more interactive (realtime) sculpting experience keeping benefits of the associativity. Implement Realtime Zebra Highlight visual Quality, thanks to micro-tesselation, during realtime sculpting for more accurate visual decision

I

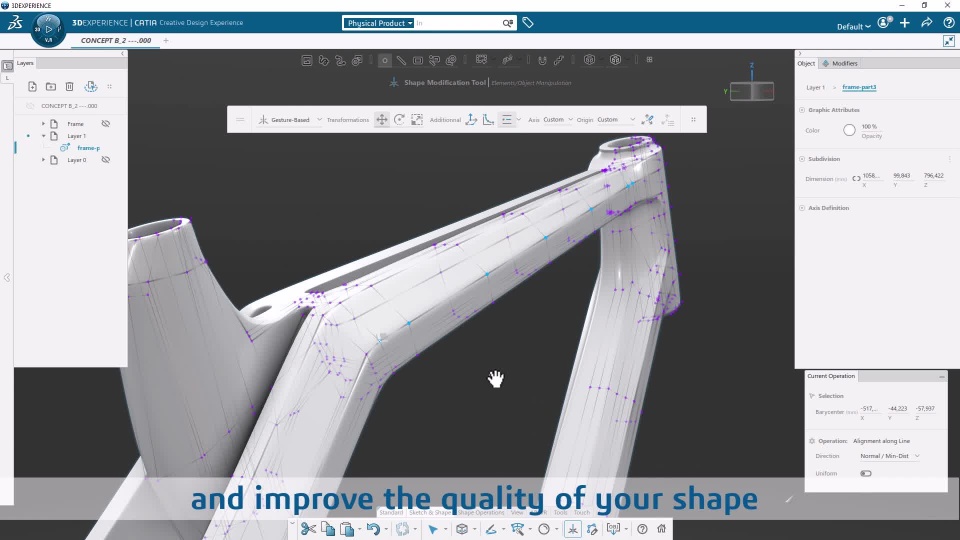

Save time and improve the quality of your shape with the vertices alignment command

I

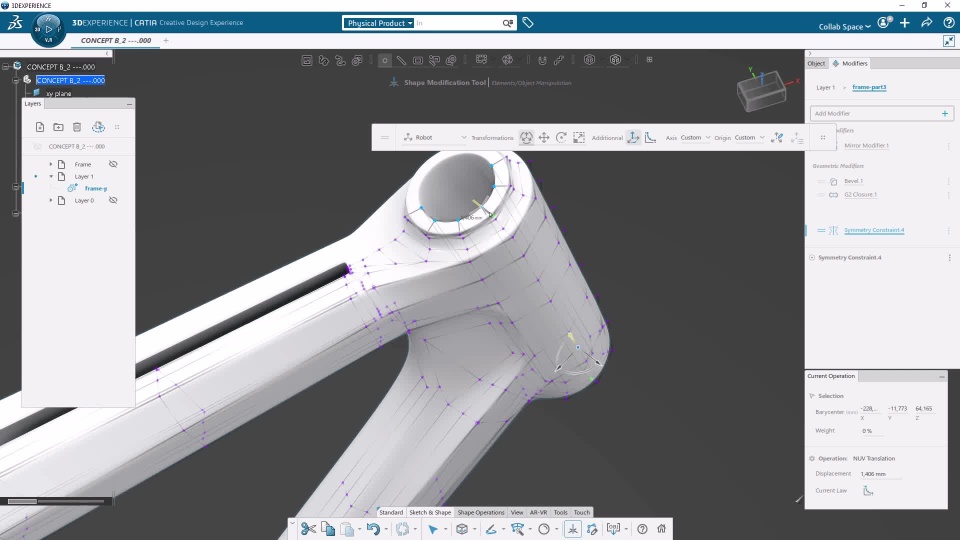

Take benefit of higher precision and better effectiveness during your exploration and creative shape sculpting workflow, with a new Modifier for Symmetry/Asymmetry

I

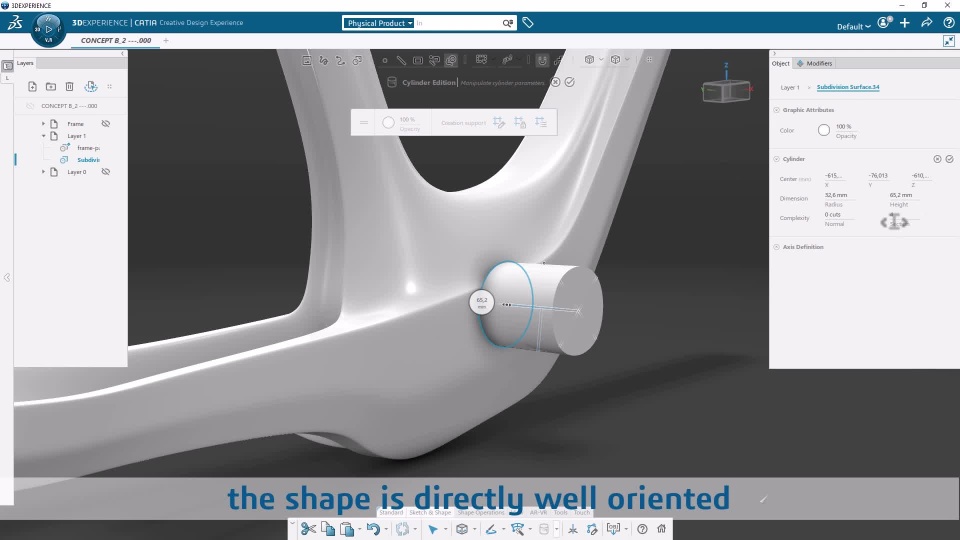

Reach greater accuracy and work faster with the new snapping feature during primitive creation : focus on design while avoiding tedious manual adjustments to increase your productivity

I

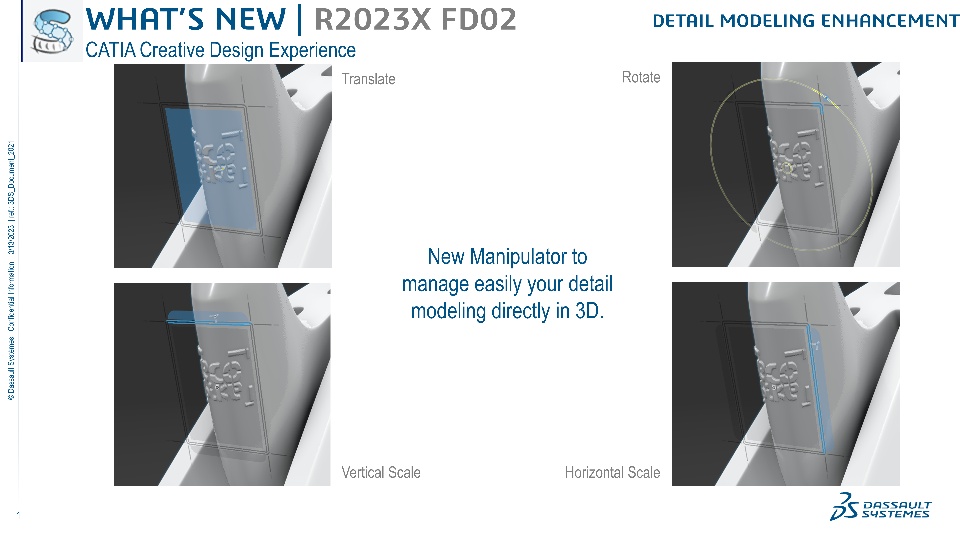

Improve the precision of your design with enhanced Detail Modeling feature

I

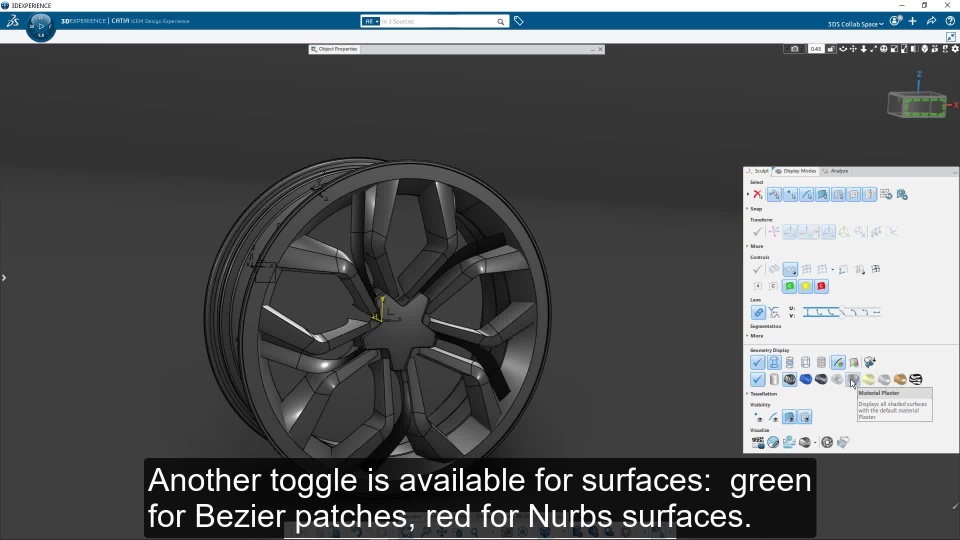

Two new wireframe display modes are available allowing to quickly distinguish the type of geometry (beziers/nurbs/procedural) which were used to describe the current shape on screen. Default colors are similar to ICEM Surf legacy solution, but can obviously be customized through user preferences

I

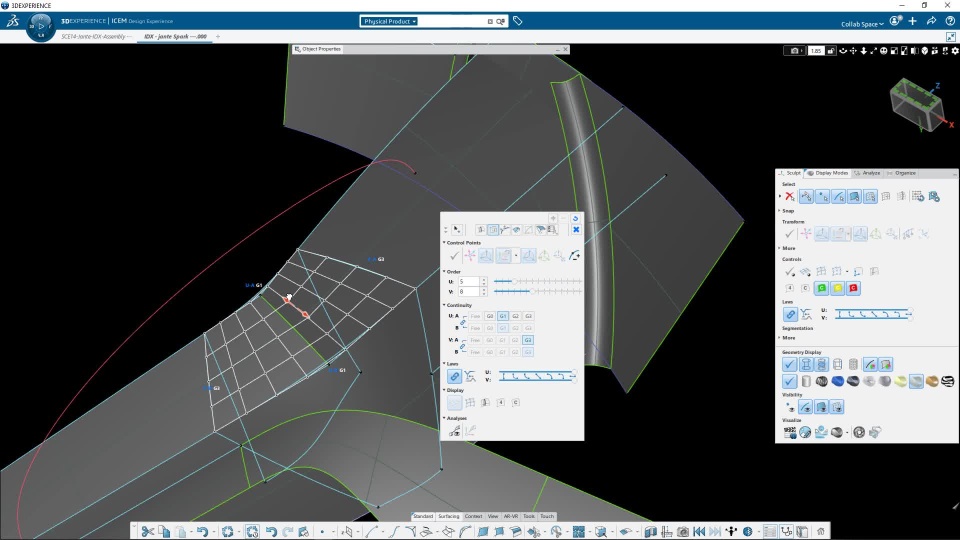

Sculpting geometry through control points now prevents explicit continuities to betray features expectations, forbidding inconsistencies which would later on become an update problem. At the same time, asking to modify a geometry face (or edge if we consider curve here) automatically leads the user to the original generated geometry modification. The Modify commands is skipping intermediate transformations within parent/children hstory such as cut/extrapol/offset, making sure that displayed control points are sculpting the relevant shape (aka 'root feature') against user intent.

I

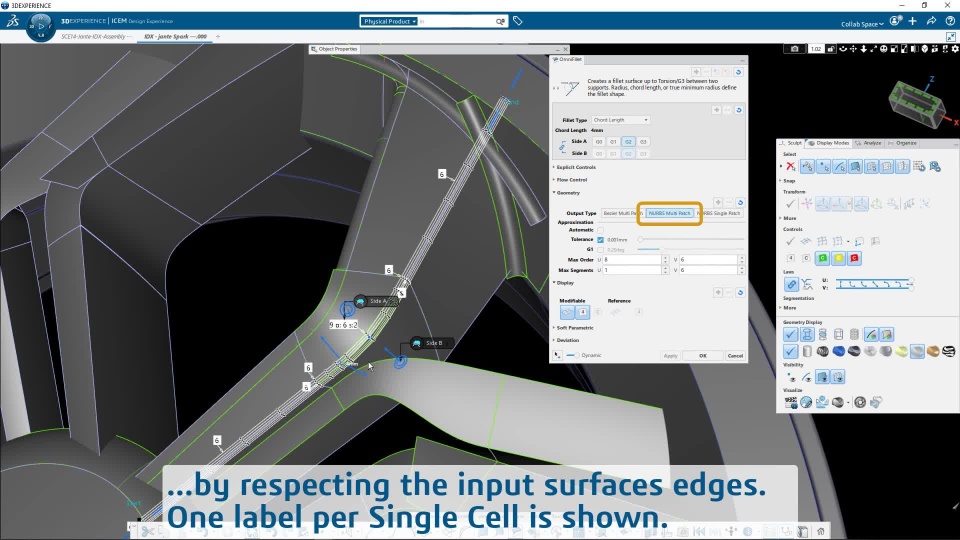

OmniFillet command now addressed closed ribbon situatiuons, and provides several output nuances, depending on user remodeling intent afterward. User can choose to output one single nurbs, or multiple nurbs inheritating from inputs topology, or even demand a strictly beziers-patches-based result.
