[CATIA] Structural Generative Designer

AB

Functional Value


1. Generate lightweight and performant industrial rib pattern with variable heights.
2. Generate a reliable parting surface for autodraw casting manufacturing constraints, boosting the associated molding creation strategy

I

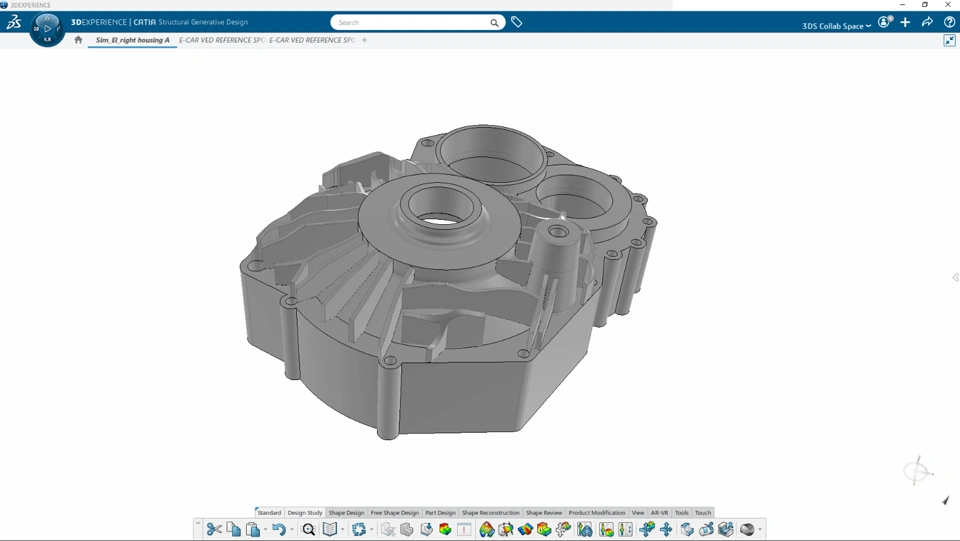

Video showing: - The improved behavior in the casting reconstruction - The improvements in the generation of the parting surface - The capability to reconstruct variable height ribs models with some improvements of the skeleton

I

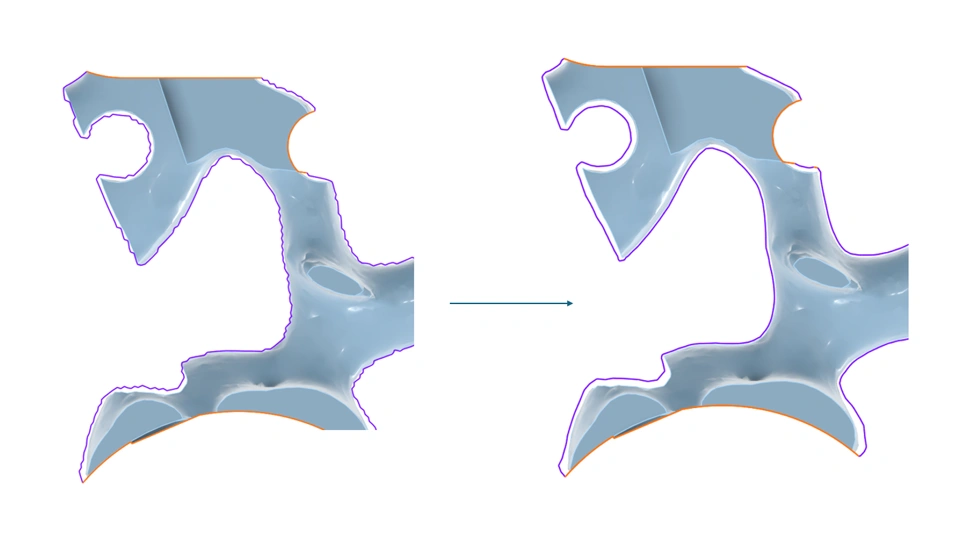

During the casting reconstruction, the contour of the volumes to reconstruct now better anticipate the impact of the material addition done by the draft angle and are a lot smoother

I

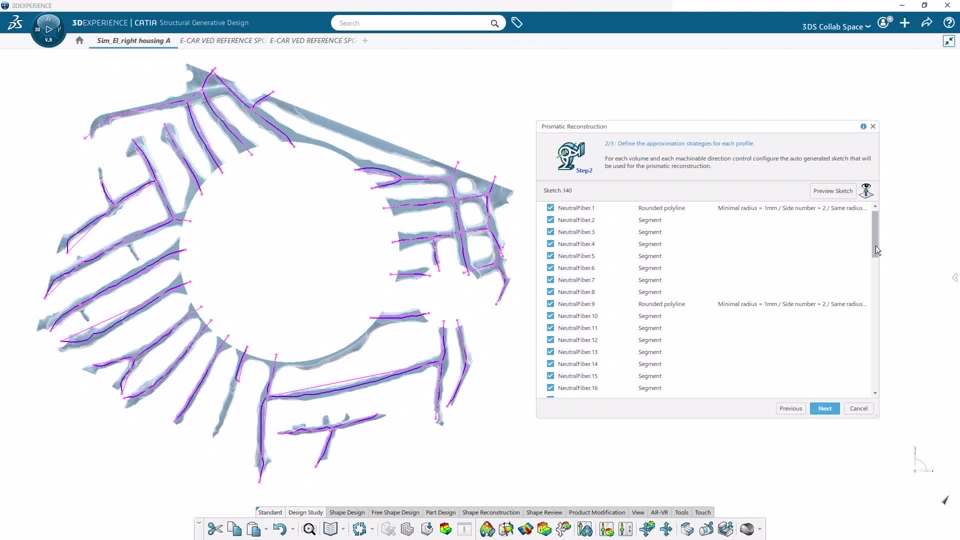

Prismatic reconstruction of rib with variable height

I

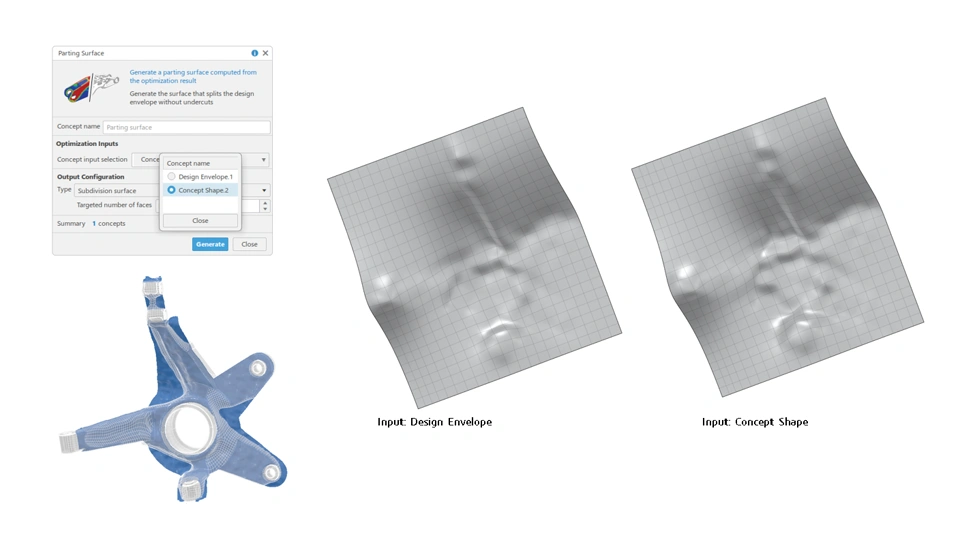

The parting surface can now be based on a concept shape which will help regularize the surface outside the concept contours resulting in a smoother result
