[CATIA] Piping & HVAC 3D System Engineer

Functional Value

For Automated Drafter application R2021x FD06 contains following enhancements:


- Automatic creation of Compass annotation according industry standard to indicate the global reference directions

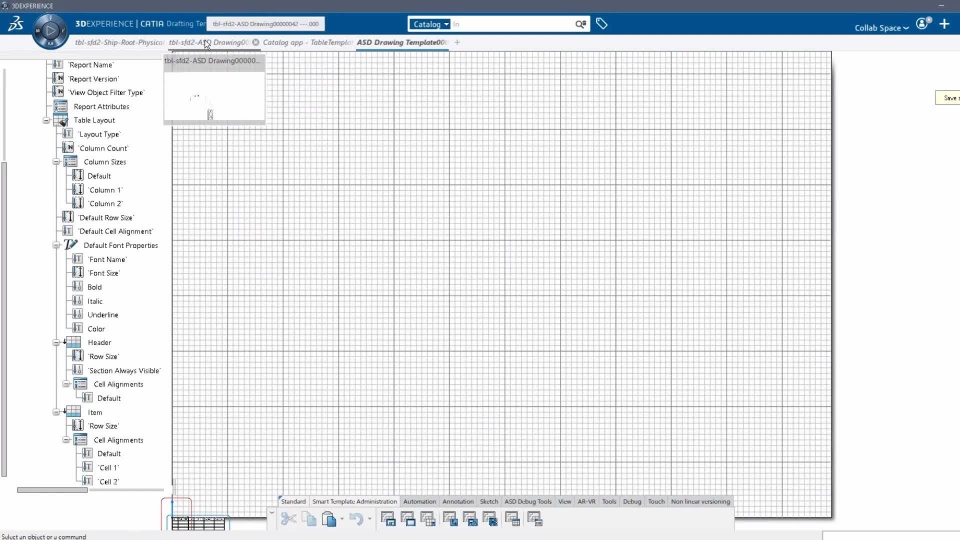

- Propose more accurate Table report content taking into account all objects contained into the 3D box filter used to generate the corresponding drawing view


What’s New video Multidiscipline Automated Drafter FD06

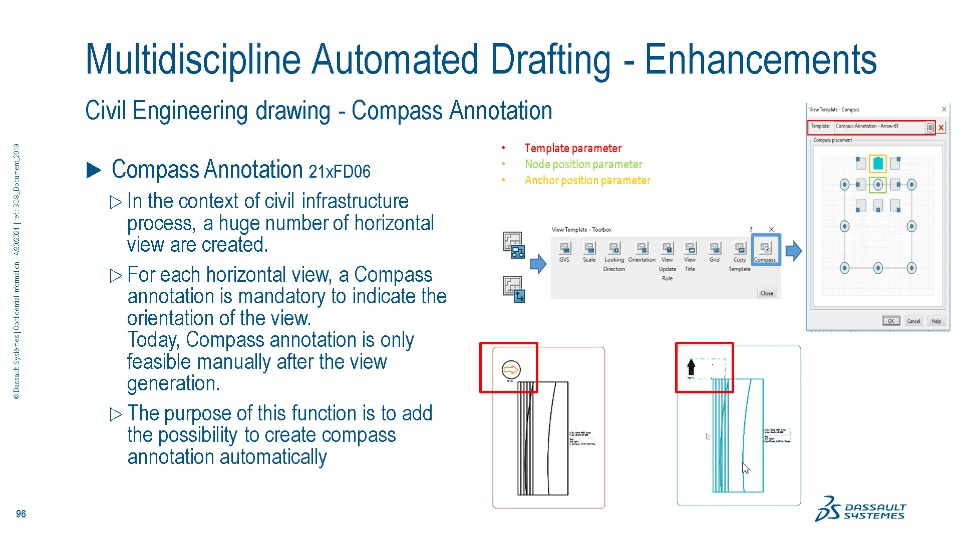

Compass Annotation management view into view templates

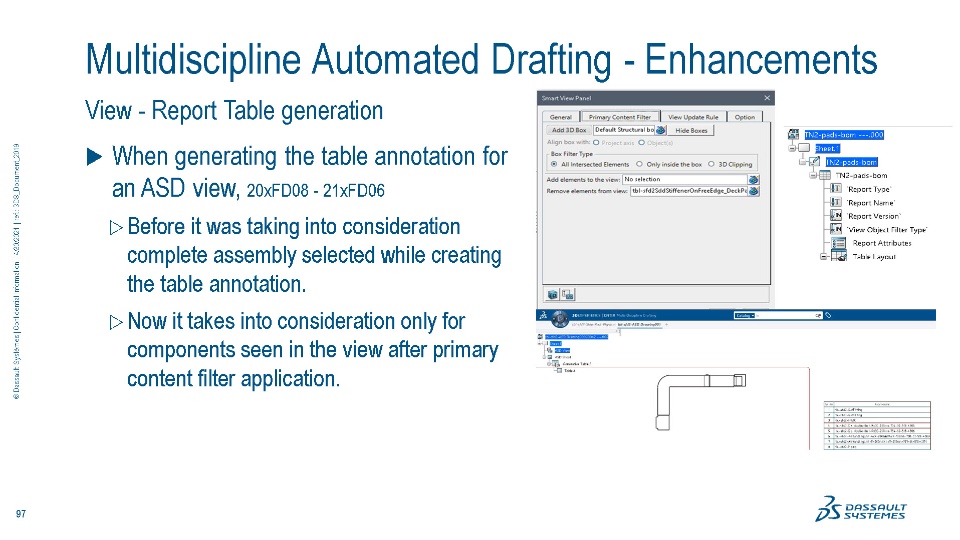

Filter report content based on View Content

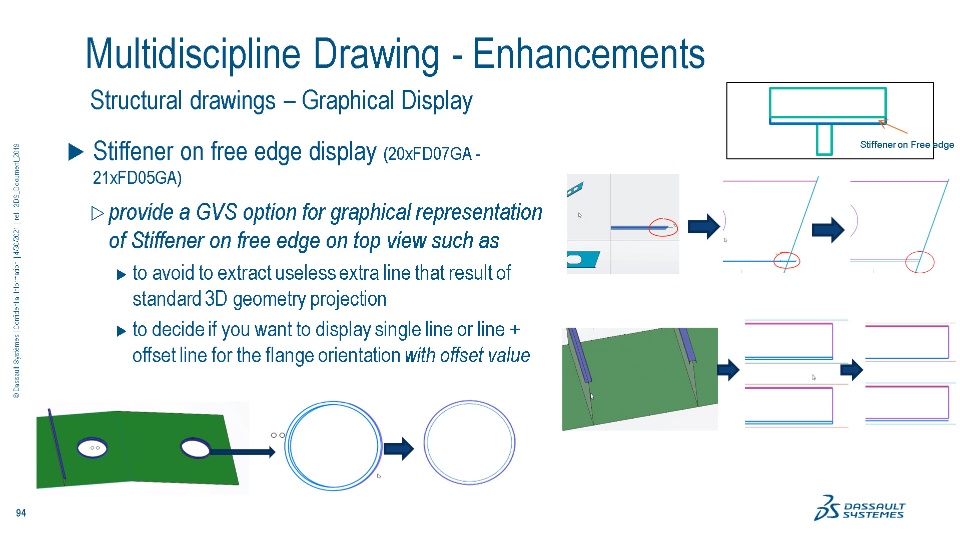

Stiffener on free edge display for structures
