[CATIA] Motion Designer

Functional Value

Designers take benefit from 2D Sketch to define complex user functions that can be used to define a given excitation such as a position, an angular velocity or a given force during a period of time.

User Experience Value

Complex mechanism excitations such as positions, loads or velocities can be defined by 2D sketches.

Kinematic measurements between geometries and Force/Torque probes can be defined at the mechanism definition in order to validate and assess the correct behavior of the product during motion simulations

I
What's new in CATIA Motion Designer in R2023x FD02

I

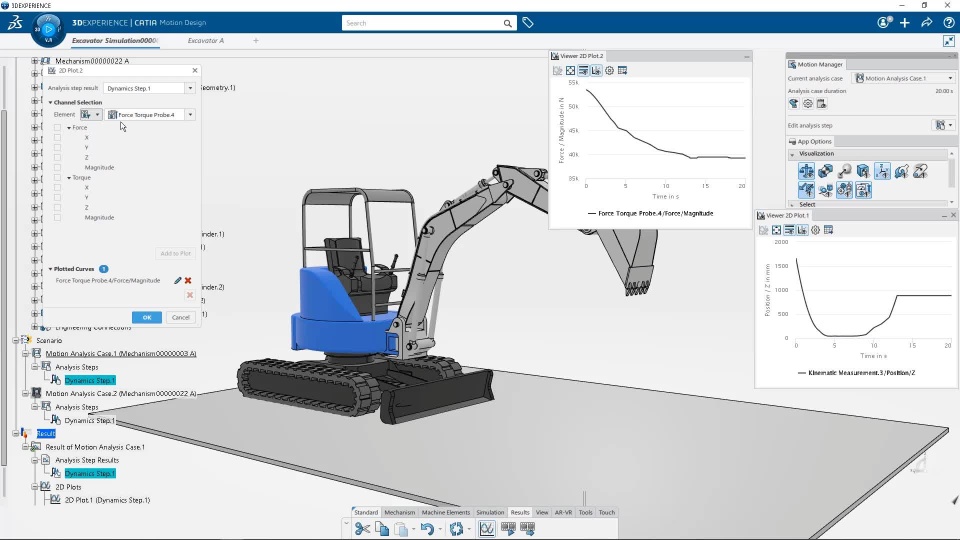

kinematics measurements and Force/Torque probes as plots

I

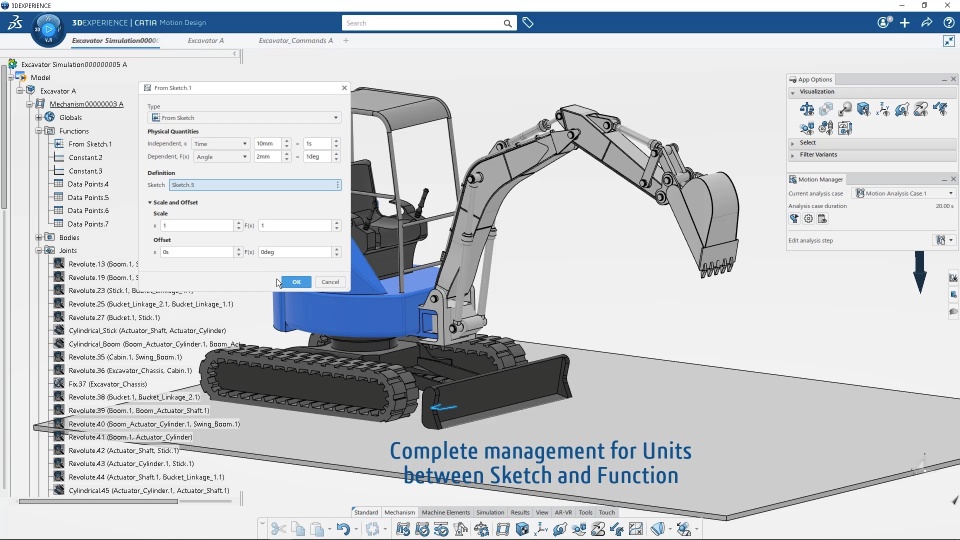

Sketch based functions for drivers and loads

I

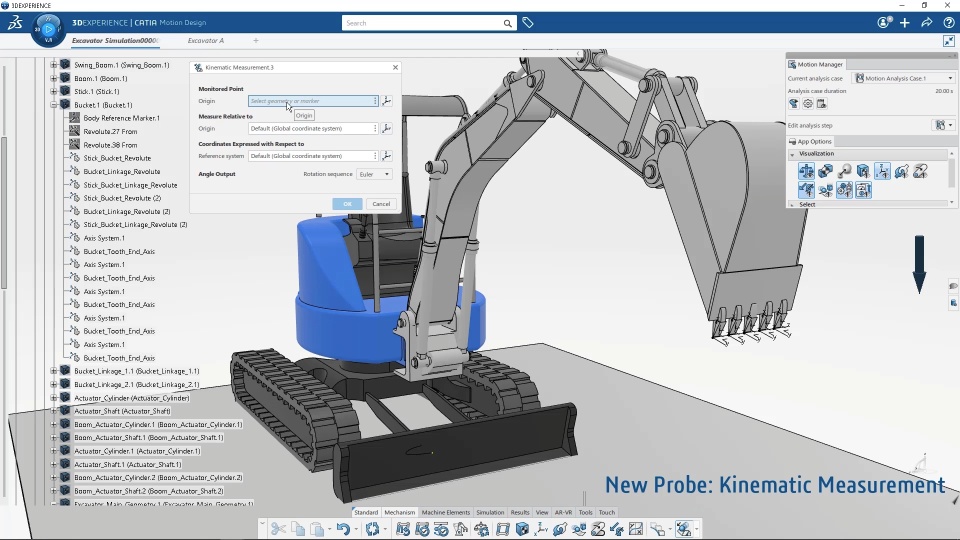

kinematics measurements probe definition
