[CATIA] Motion Designer

Functional Value

Designers can explicitly assess minimum distance between bodies or parts by using probes, in order to better understand the behavior of their mechanisms

Moreover, interference probe accuracy or performance are enhanced by triggering 3D accuracy in the probe definition

User Experience Value

Internal loads computed from Motion Results can be reused directly for Structural Analysis, drastically simplifying the workflow to assess parts strength from motion conditions.

I

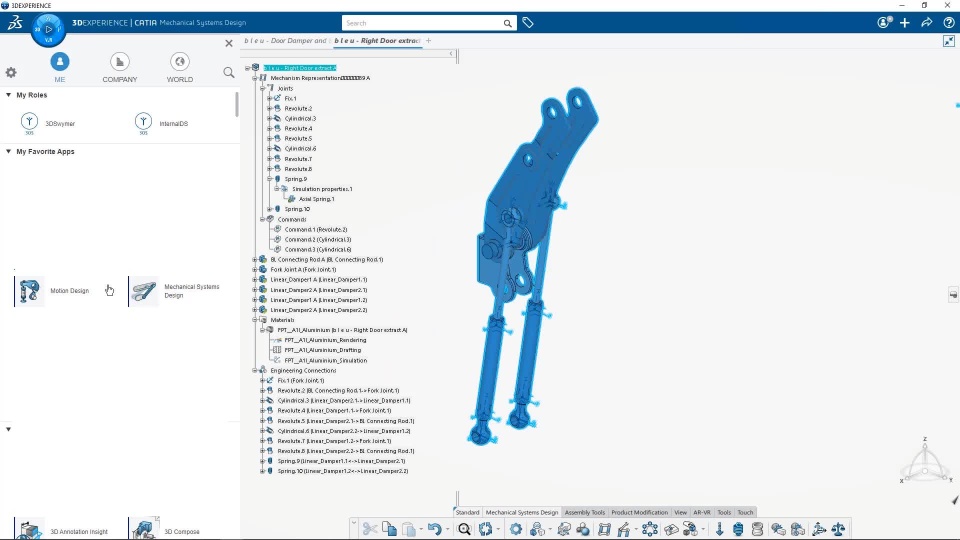

Added Values for Motion Designer for advanced process coverage: Minimum distance probe, enhanced mechanism upgrade and export load to Structural Analysis

I

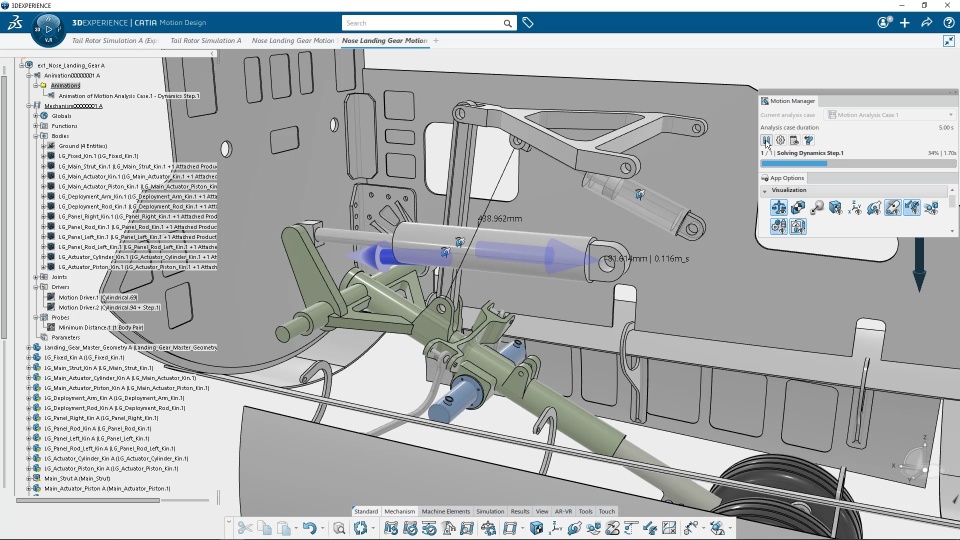

Minimum Distance between bodies
