[CATIA] Layered Product Designer

Functional Value

- Improved user experience with new layer representation for Elastics with 3D Profile computation.

- Extended manufacturing transformation capabilities for embossing, strain and slit cut processes

- Seamless publication and customization of layers parameters for specific computations.

I

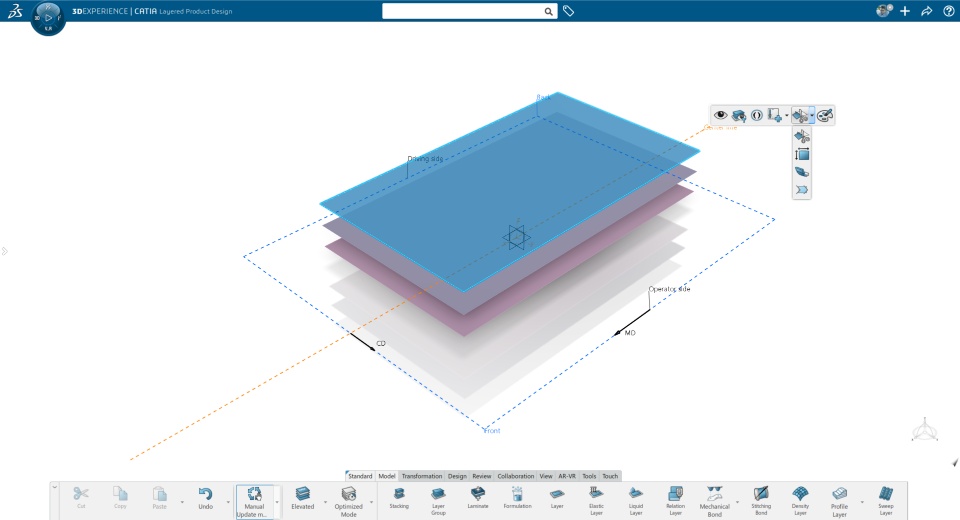

Video illustrating the new improvements that include new manufacturing transformations, a new layer command for sweep elastics and new short cuts.

I

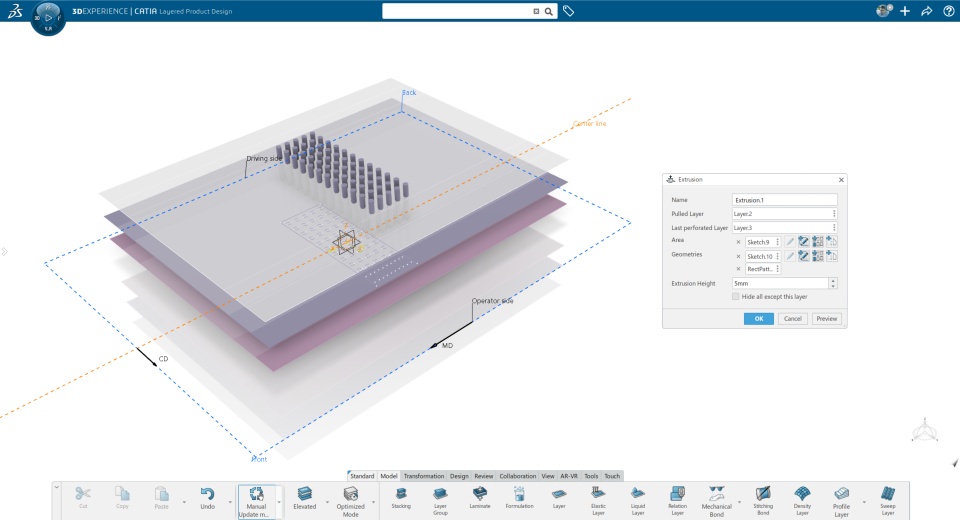

New manufacturing transformation for the layer extrusion process that pull a layer over others.

I

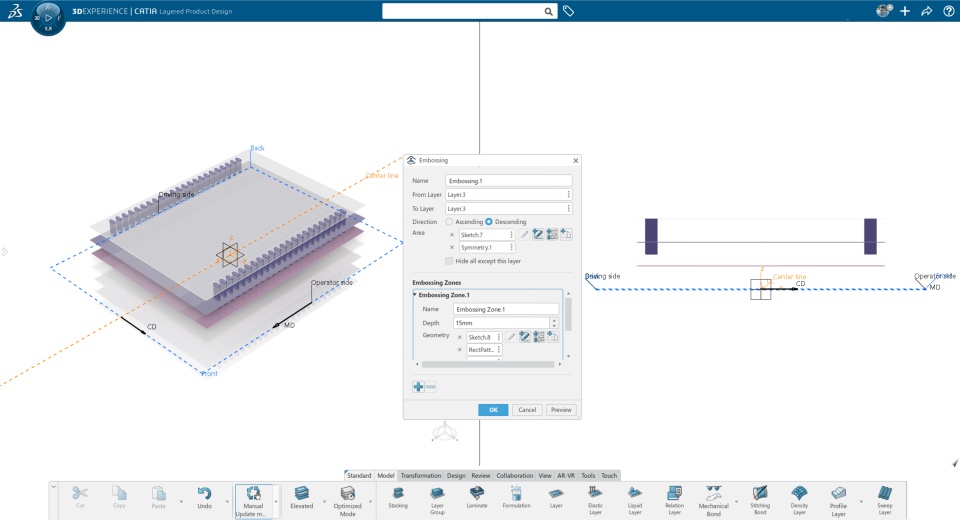

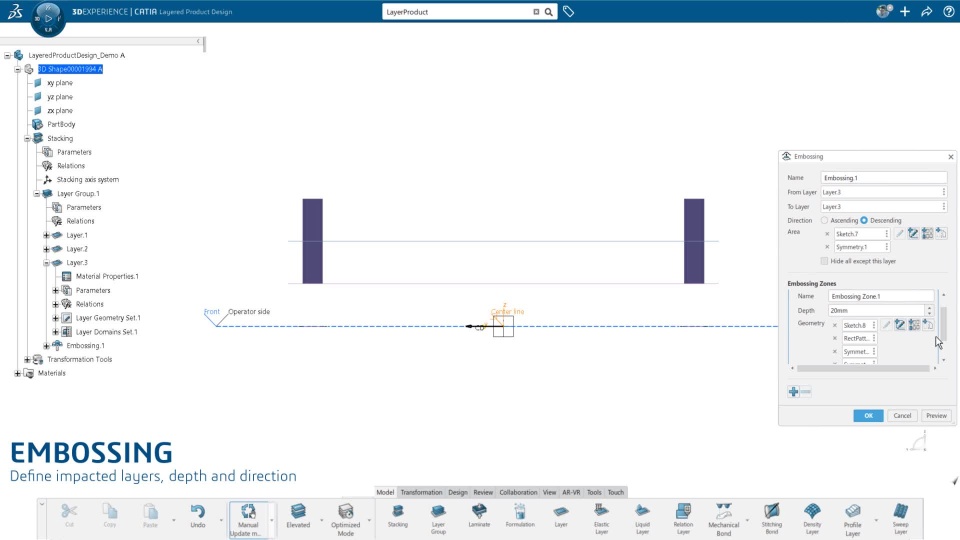

New manufacturing transformation for the layer embossing process that compress several layer depending on the tooling design (depth).

I
Short cuts accessible with a context bar on single or multiple feature selection.

I

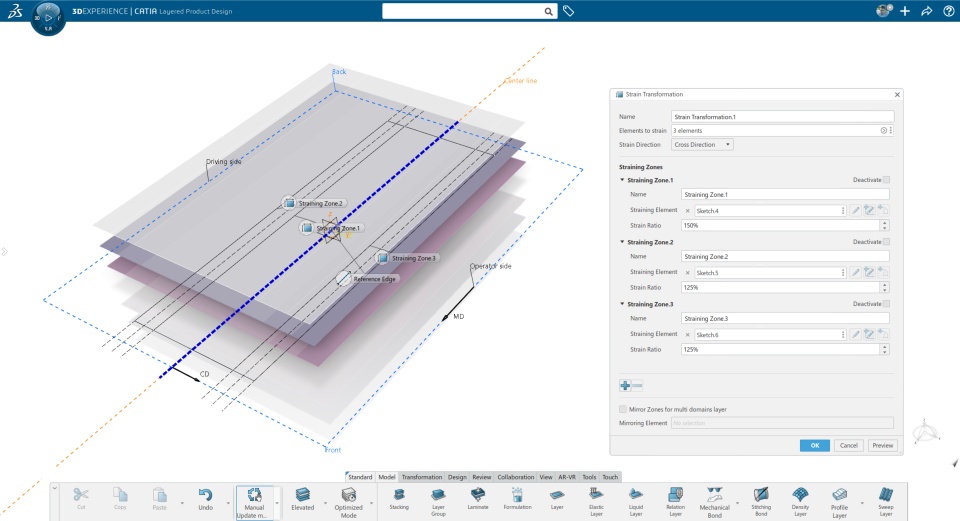

Strain transformation for one or several layers with the ability to define multiple straining zones.

I

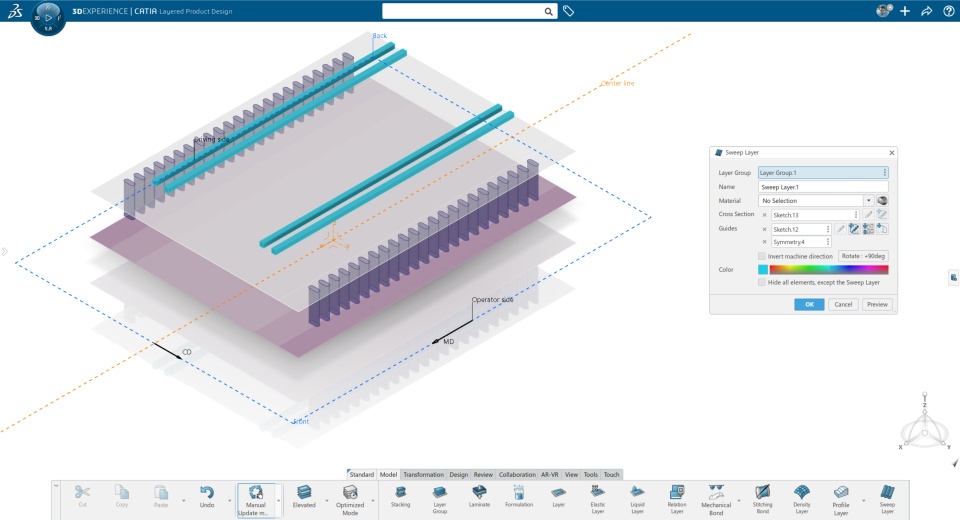

New layer command for sweep layer with a 3D representation based on the guide and the cross section definition.
